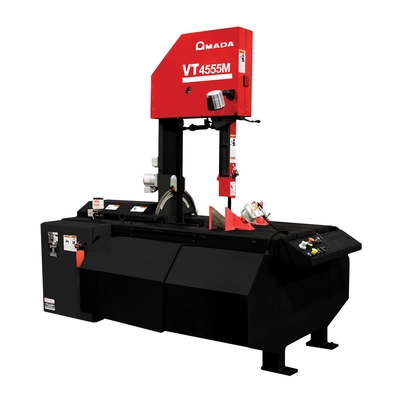

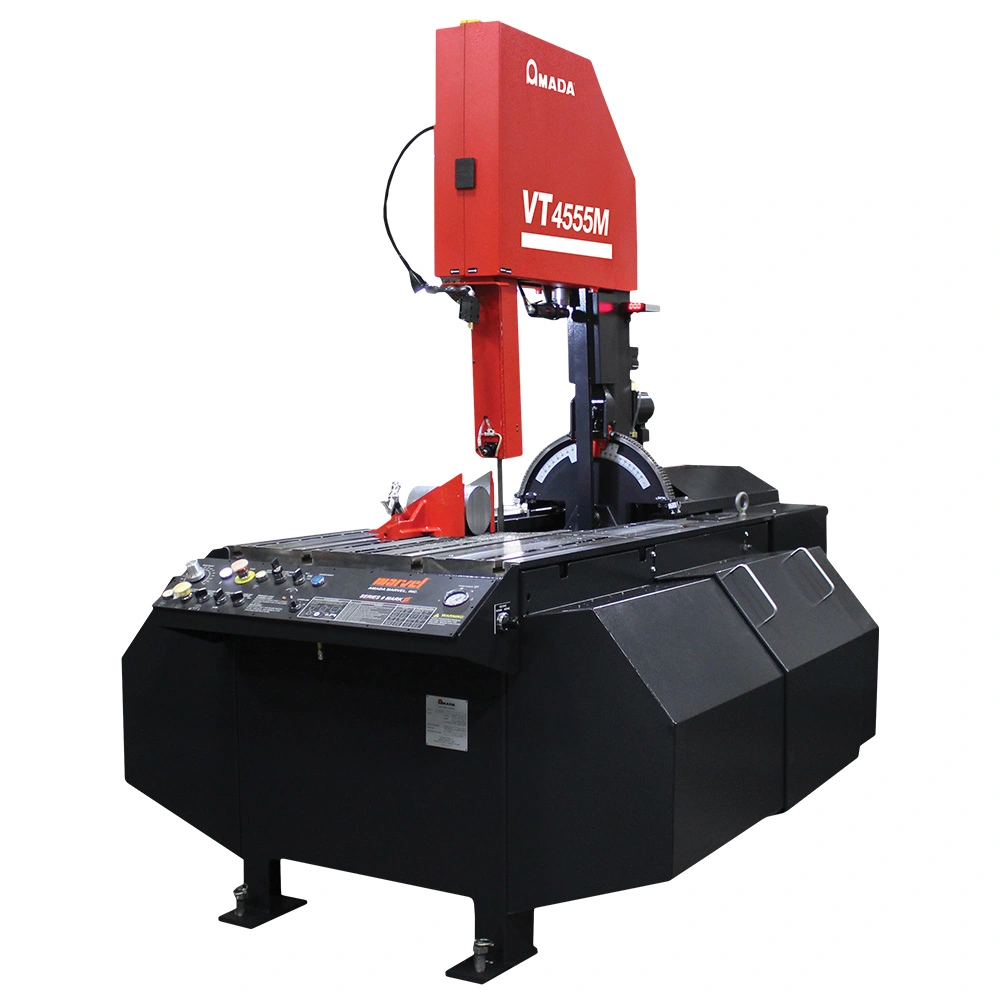

NEW AMADA VT4555M

18″ x 22″ New Amada Vertical Tilt Frame Band Saw Model VT4555M (8-Mark-III) Specifications:

18″ x 22″ New Amada Vertical Tilt Frame Band Saw Model VT4555M (8-Mark-III) Features:
SPEED RANGE: 50 – 450 fpm (15 – 137 m/min) infinitely variable with inverter drive
FRONT-MOUNTED SPEED CONTROL: Allows blade speed to be adjusted from operator’s control station

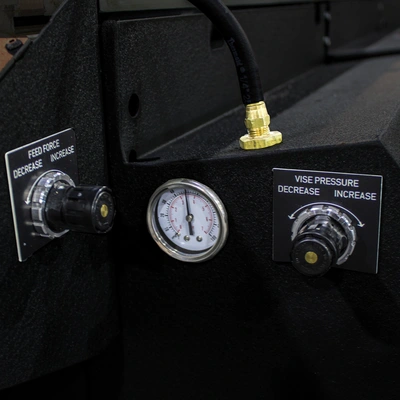

FEED RANGE: 0-140 lbs (64 kgf) infinitely variable direct reading scale balance beam on the VT4555. 0-250 lbs (113 kgf) infinitely variable with control on operator’s panel and Automatic Column Return. Column feed is mechanical with Amada Marvel clutch power feed on VT4555M

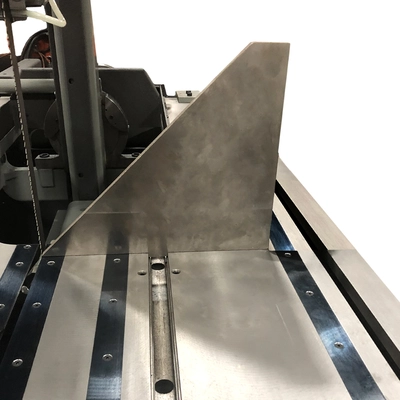

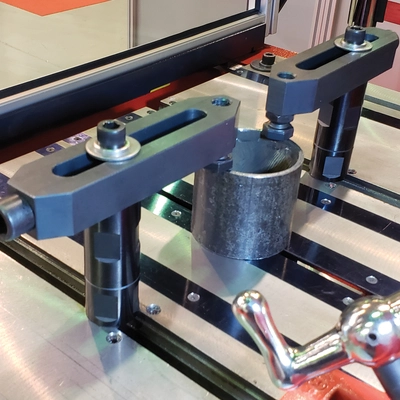

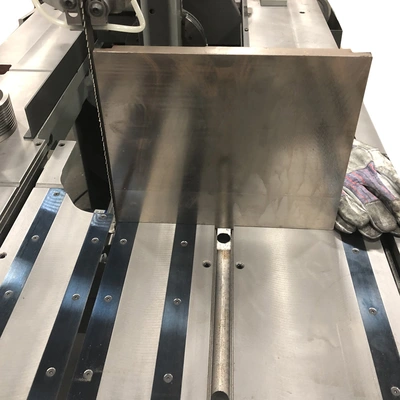

T-SLOTTED WORK TABLE: Work area 24.25″ x 33″; table height 34.5″; four machined T-slots accept 0.625″ T-Bolts on VT4555. Work area 24.25″ x 33″; table height 38″; two machined T-slots on VT4555M.
0º – 3° CANTED COLUMN: Adjustable 0 or 3º forward approach angle, for notching, or increased efficiency in cutting of structural materials. Standard 3-degree forward approach angle with VT4555M (8-MARK-III). *VT4555 (8-MARK-II) is not adjustable and is available in either 0º or optional 3º cant

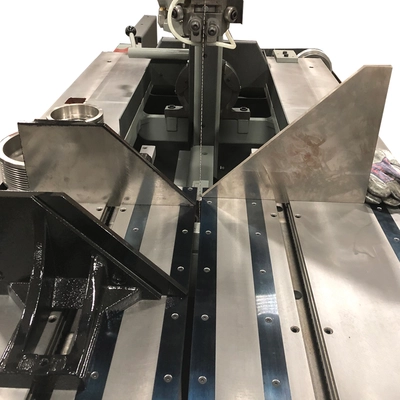

MITER CUTTING: Column and blade tilt up to 45° on VT4555 and up to 60° right and left of vertical on the VT4555M. Optional Powered Tilt only available on the VT4555M

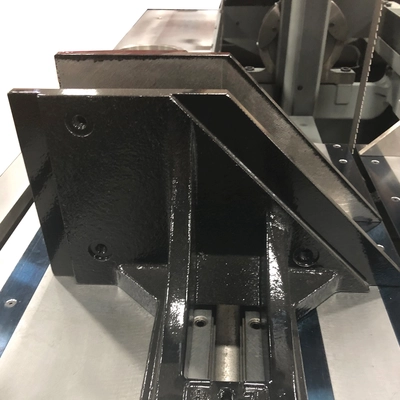

QUICK-ACTION VISE: Maximum opening 18”. Jaws can be shifted to either right or left side of blade. Jaws are 6” high, 12” wide
AUTOMATIC STOPS: Adjustable stops can be pre-set to stop advance and return of blade, and also to stop motor at any location within the 18” travel of the blade (available on VT4555M). *VT4555 doesn’t have auto return feature*

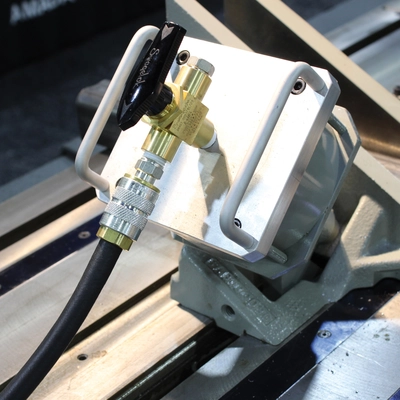

FLUSHING HOSE: Washes chips from hard to get at places reducing clean-up time
POWER CHIP BRUSH: Together with blade wipers and flood coolant deep blade teeth free of chips

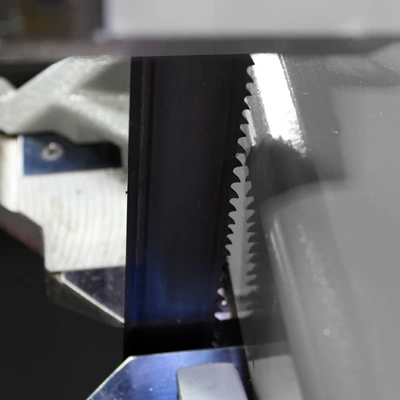

EAGLE BEAK VTR BLADE: Eagle Beak VTR blade with 3/6 tooth pitch. This is the standard blade that is included with machine purchase

Round 0° (diameter): 17.5″
Round at 45° right (diameter): 14.5″
Round at 45° left (diameter): 13″
Round at 60° right (diameter): 9.7″
Round at 60° left (diameter): 7.3″
Rectangle at 0° (W x H): 17.5″
Rectangle at 45° right (W x H): 17.5″ x 14.5″
Rectangle at 45° left (W x H): 17.5″ x 13″
Rectangle at 60° right (W x H): 17.5″ x 9.7″
Rectangle at 60° left (W x H): 17.5″ x 7.3″
Maximum vise opening at 45° left: 17.5″
Maximum vise opening at 60° left: 17.5″
Work load capacity: 4,996 lbs
Blade size (L x T x W): 15’4″ x 0.042″ x 1-1/4″
Blade speed: 50-450ft/min by Inverter
Tension control: Pneumatic (tightening by air ratchet)
Cutting control: Clutch power feed
Blade feed force: 0 to 250 lbs
Saw blade: 5 HP
Sawhead fast feed: 1/4 HP
Cutting fluid pump: 1/8 HP
Tilt gear: 1/15 HP
Power supply voltage: AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, voltage must be specified when ordering
Tank capacity: 19.8 gal
Pump type: Electric
Air supply: 87 – 145 psi
Air set pressure: 80 psi
Chip disposal: Manual
Feed mechanism: NA
Feed stroke: NA
Machine dimensions (W x L x H): 94.7″ x 99.2″ x 90.8″
Table Height (Above Floor): 38″
Machine Weight: 2,867 lbs
