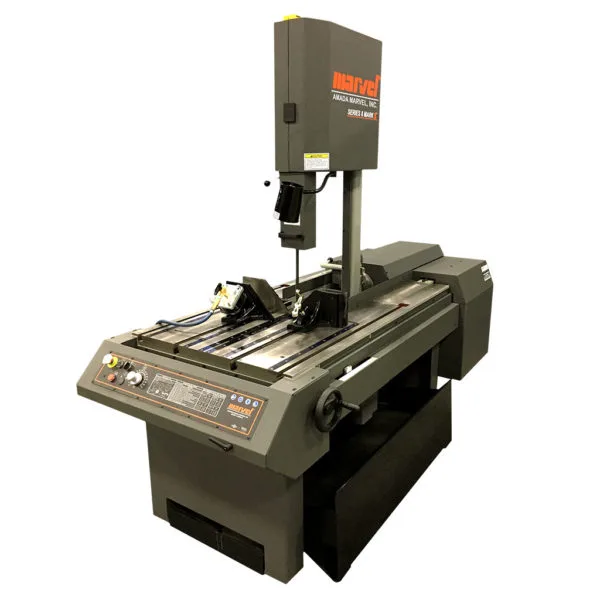

18″ x 22″ New Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II USA Made!

18″ x 22″ New Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II Specifications:

18″ x 22″ New Marvel Vertical Tilt Frame Band Saw Series 8-Mark-II Features:
SPEED RANGE: 50 – 450 fpm (15 – 137 m/min) infinitely variable with inverter drive
FRONT-MOUNTED SPEED CONTROL: Allows blade speed to be adjusted from operator’s control station
FEED RANGE: 0-140 lbs (64 kgf) infinitely variable direct reading scale balance beam on the 8-Mark-II. 0-250 lbs (113 kgf) infinitely variable with control on operator’s panel and Automatic Column Return. Column feed is mechanical with Marvel clutch power feed on 8-Mark-III
T-SLOTTED WORK TABLE: Work area 24.25″ x 33″; table height 34.5″; four machined T-slots accept 0.625″ T-Bolts on 8-Mark-II. Work area 24.25″ x 33″; table height 38″; two machined T-slots on 8-Mark-III.
0° – 3° CANTED COLUMN: Adjustable 0 or 3° forward approach angle, for notching, or increased efficiency in cutting of structural materials (only available on 8-Mark-III). *8-Mark-II is not adjustable and is available in either 0° or 3° cant*
MITER CUTTING: Column and blade tilt up to 45° on 8-Mark-II and up to 60° right and left of vertical on the 8-Mark-III. Optional Powered Tilt only available on the 8-Mark-III
QUICK-ACTION VISE: Maximum opening 18”. Jaws can be shifted to either right or left side of blade. Jaws are 6” high, 12” wide
AUTOMATIC STOPS: Adjustable stops can be pre-set to stop advance and return of blade, and also to stop motor at any location within the 18” travel of the blade (available on 8-Mark-III). *8-Mark-II doesn’t have auto return feature*
FLUSHING HOSE: Washes chips from hard to get at places reducing clean-up time
POWER CHIP BRUSH: Together with blade wipers and flood coolant deep blade teeth free of chips
EAGLE BEAK VTR BLADE: Eagle Beak VTR blade with 3/6 tooth pitch. This is the standard blade that is included with machine purchase

Round 0° (diameter): 18″
Round 45° (diameter): 12.75″
Rectangle 0° (W x H): 18″ x 22″
Rectangle 45° (W x H): 18″ x 12.75″
Maximum vise opening: 20″
Work load capacity: 4,996 lbs
Blade size (L x T x W): 14’6″ x 0.035″ x 1″
Blade speed: 50-450ft/min by Inverter
Tension control: Pneumatic (tightening by air ratchet)
Cutting control: Clutch power feed
Blade feed force: 0 to 140 lbs
Saw blade: 5 HP
Cutting fluid pump: 1/8 HP
Tilt gear motor: 1/15 HP
Power supply voltage: AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, Required at factory voltage setting
Power requirement: 9.3 kVA
Tank capacity: 19.8 gal
Pump type: Electric
Air supply: 87 – 145 psi
Air set pressure: 80 psi
Chip disposal: Manual
Machine dimensions (W x L x H): 52.64″ x 94.4″ x 84.5″
Table Height (Above Floor): 34.5″
Machine Weight: 2,867 lbs
