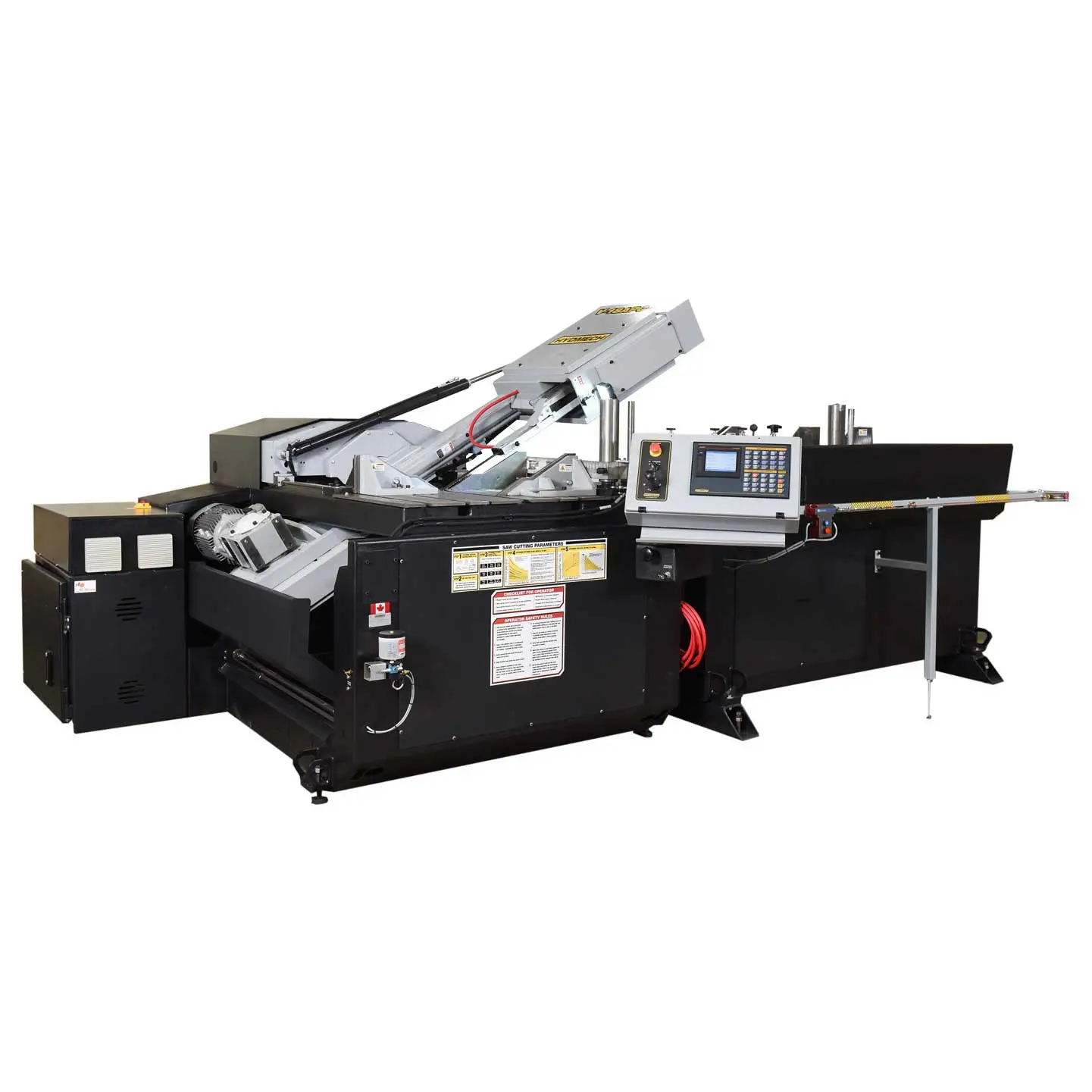

NEW HYD-MECH V-18APC-60

18″ x 22″ New HydMech Automatic Vertical Mitering Band Saw Model V-18APC-60 Specifications:

18″ x 22″ New HydMech Automatic Vertical Mitering Band Saw Model V-18APC-60 Standard Features:
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Four full stroking, hydraulic vises (12” h shuttle, 6” h main, and 6” h outboard) and 12” h squaring vise
8.5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
Automatic multi-indexing up to 40” in a single stroke
Powered movable guide arm
Hydraulic overhead bundling
7.5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic DDF system
Blade chamber separates material from cut part
Out of stock switch
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Drag chain chip conveyor
You choose left or right side infeed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light and Work light
Variable vise pressure
3 degree head cant
18″ x 22″ New HydMech Automatic Vertical Mitering Band Saw Model V-18APC-60 Optional Features:
Chip bucket
Tall vise inserts
Mist lubrication
Non-driven pop up lift roller
Hydraulic chip conveyor
Idler conveyors
Powered conveyors

18″ x 22″ New HydMech Automatic Vertical Mitering Band Saw Model V-18APC-60 Optional Accessories:

90° rectangular (w x h): 18″ x 22″
90° round: 18″
45° rectangular (w x h): 18″ x 14.75″
45° round: 13″
60° rectangular (w x h): 18″ x 9″
60° round: 9″
90° with OH bundling rectangular (w x h): 18″ x 12″
90° with OH bundling round: 12″
45° with OH bundling rectangular (w x h): 18″ x 12″
45° with OH bundling round: 12″
60° with OH bundling rectangular (w x h): 18″ x 6″
60° with OH bundling round: 6″
Blade Drive: 7.5 HP VFD
Blade Speed: 65-385 SFM
Blade Size: 1.25″ x 16′ 11″
Table Height: 44″
Voltages Available: 208, 240, 480, 575 v
Weight: 9,000 lbs
Dimensions (w x l x h): 120″ x 188″ x 112″
Coolant Tank Capacity: 30 gal
Hydraulic Tank Capacity: 8 gal
Mitering Capability: 60° left to 60° right
