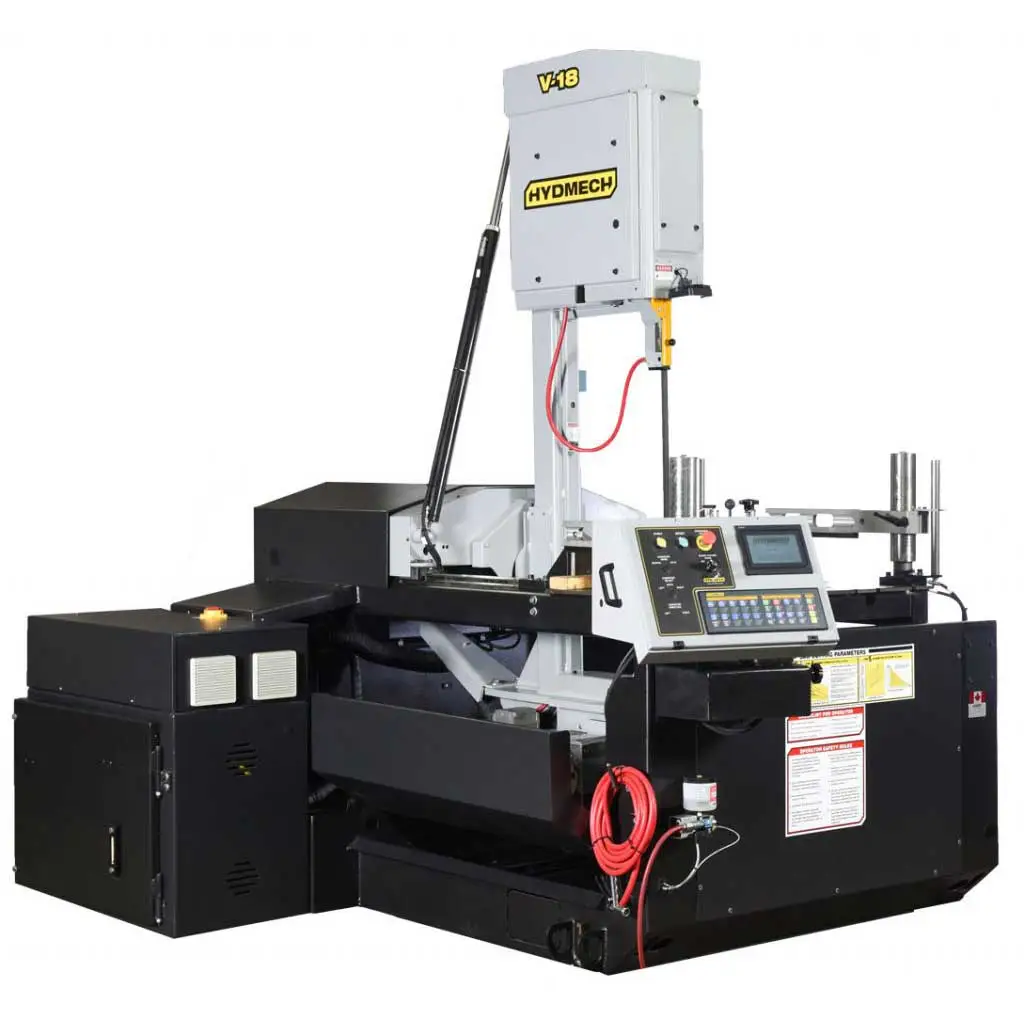

NEW HYD-MECH V-18-60

18″ x 23″ New HydMech Vertical Mitering Semi-Automatic Band Saw Model V-18-60 Specifications:
Standard Features:
Two full stroking hydraulic vises
Select left or right side control panel
Powered movable guide arm
7.5 HP VFD. True direct blade drive – no belts/pulleys
Hydraulic positive down feed
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
Cast iron band wheels
90° straight head
2 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Variable vise pressure
18″ x 23″ New HydMech Vertical Mitering Semi-Automatic Band Saw Model V-18-60 Optional Features:
Fixed 3° canted head
Chip bucket
Hydraulic overhead bundling
Mist lubrication
Pop-up lift rollers
Drag chain chip conveyor
Tall square vise inserts
Hydraulic chip conveyor
Idler conveyors
Powered conveyors
18″ x 23″ New HydMech Vertical Mitering Semi-Automatic Band Saw Model V-18-60 Optional Accessories:

90° rectangle (w x h) 3° canted: 18″ x 22″
90° rectangle (w x h) straight: 18″ x 23″
90° round- 3° canted: 18″ (with tall vise)
90° round straight: 18″ (with tall vise)
45° rectangle (w x h) 3° canted: 18″ x 14.75″
45° rectangle (w x h) straight: 18″ x 16″
45° round-3° canted: 13″
45° round straight: 13″
60° rectangle (w x h) 3° canted: 18″ x 9″
60° rectangle (w x h) straight: 18″ x 10″
60° round-3° canted: 9″
60° round straight: 10″
90° & 45° with OH bundling rectangle (w x h): 18″ x 12″
90° & 45° with OH bundling round: 12″
60° with OH bundling rectangle (w x h): 18″ x 6″
60° with OH bundling round: 6″
Blade Drive: 7.5 HP VFD
Blade Speed: 65-385 SFM
Blade Size: 1.25″ x 16′ 11″
Table Height: 44″
Voltages Available: 208, 240, 480, 575 v
Weight: 4,800 lbs
Dimensions (w x l x h): 98″ x 120″ x 112″
Hydraulic Pump Drive: 2 HP
Hydraulic Tank Capacity: 8 Gallons
Wheel Diameter: 19″
