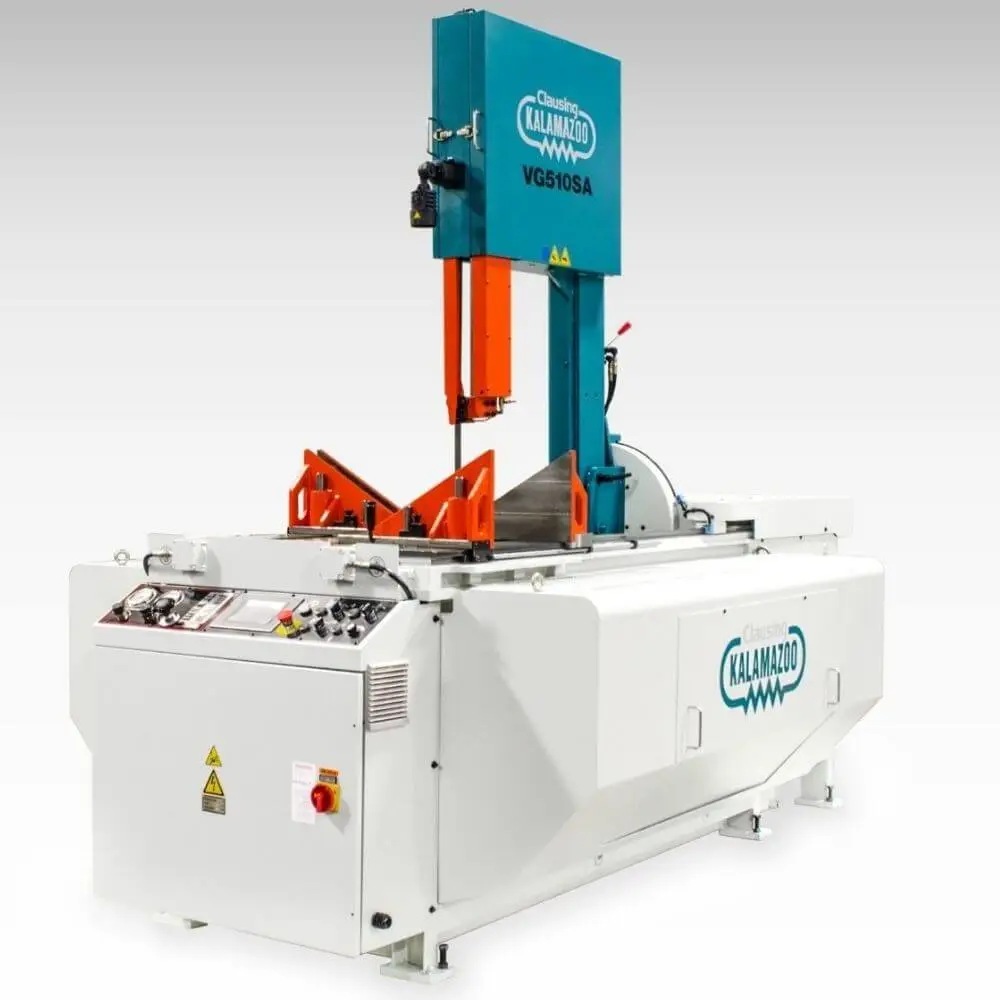

Great versatility, fast and easy set-up…The saw frame hydraulically tilts to any angle between 60° left and 60° right from control panel. High and low frame travel speeds for exact positioning of the miter angle
Large cutting capacity…20” x 26.4” at 90°, 20” x 18.3” at 45° left and 20” x 12.8” 60° left. Right hand tilt optional.
Front mounted control panel…Easily control all sawing functions, miter angle, blade speed, etc.
Fast and accurate miter settings…Digital display of miter angle with an accuracy of 0.1°
Cutting control…Infinitely variable hydraulic cutting pressure controlled from control panel
Canted saw frame…Saw frame can be adjusted from 0° to 5° forward for more efficient cutting of structural materials
Large work area…By removing the movable front vise jaw, large bulky parts or irregular shaped work pieces can be manually clamped to the large work table
Easy loading and unloading…Saw frame moves behind fixed back vise jaw to allow easy loading and unloading of workpiece from top or side
Precision guidance…Precision saw bow guided by solid carbide blade guides with rollers along with a very rigid frame design and guided by two linear guides to guarantee very precise cuts
Blade tension control…Equipped with hydraulic blade tension with pressure indicator
Small footprint…For such a large cutting area the machine requires only a 98.4” x 102.36” footprint
Flood coolant…Equipped with a recirculating flood coolant system
Hydraulic Clamping Vises…through rack gear
Powerful 7.5 hp drive motor
Inverter variable speed drive
Hydraulic blade tension with pressure indicator
Digital display of miter angle, 0.1° accuracy
Flood coolant system
Solid carbide blade guides
Operational and parts manual
Left Side and Right Side Hydraulic Power Vise with Variable Pressure Regulation
Standard 230/3/60 volt. Other voltages may require a transformer or special order
Cutting capacity 90°: 0° frame cant 20″ x 26.4″
5° frame cant 20″ x 24″
Cutting capacity 45° left: 0° frame cant 20″ x 18.3″
5° frame cant 20″ x 16.7″
Cutting capacity 60° left: 0° frame cant 20″ x 12.8″
5° frame cant 20″ x 11.8″
Cutting capacity 45° right (optional): 0° frame cant 20″ x 17.1″
5° frame cant 20″ x 15.7″
Cutting capacity 60° right (optional): 0° frame cant 20″ x 10.4″
5° frame cant 20″ x 10″
Maximum vise opening: 20″
Blade speed: 66 – 328 ft/min inverter controlled
Blade size: 205.9” x 1.25” x .043”
Blade tension: Hydraulic controlled
Blade guide: Interchangeable tungsten carbide w/ rollers
Guide arm: Hydraulic positioning on linear guide
Saw blade motor: 7.5 Hp
Hydraulic motor: 1 Hp
Hydraulic tank capacity: (DTE 24) 22.1 gallons
Hydraulic output pressure: 540 – 640 PSI
Coolant pump motor: 1/4 Hp
Coolant tank capacity: 34 gallons
Feed range: 0-132 lb/f
Work table size: 33″ x 20″
Work table height: 39.4″
Floor space (W x D x H): 98.5” x 102.4” x 98.5”
Shipping dim (W x D x H): 125” x 90” x 97”
Net weight: 3,795 lbs.
Shipping weight: 4,092 lbs.
