230/460/60/3 Electricals
Magnetic starter with 110V control circuit and overload protection
3 hp TEFC motor
Dual range transmission
Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8” , ½” , 5/8”, ¾” and 1” Back-up rollers in blade guide brackets

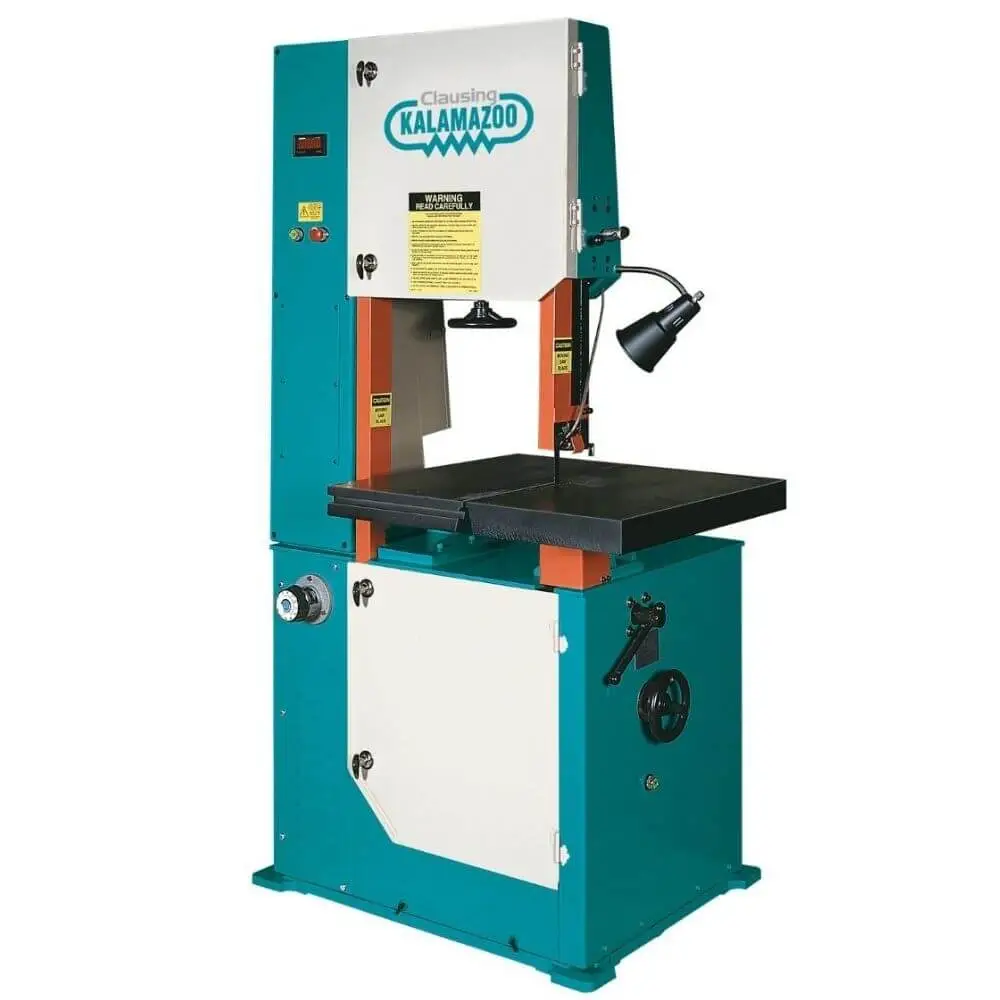

26-3/4” x 29” heavy duty cast iron table with two way tilt (45°L & 15°R) solid table surface (V2012F)
26-3/4” x 29” heavy duty cast iron table with two-way tilt (15°L & 15°R) 4 T-slots on top hydraulic moving table. Table travel is 12.7”, Adjustable feed speed w/rapid retract. (V2012H)
Bonded rubber band wheels
110V work light
Built-in air chip blower
Blade tension indicator
Blade speed indicator
Rip fence
¾” carbon hardback blade
Locking band wheel doors
Operation and parts manual
2 year limited warranty
Throat: 20″
Work height F-series: 12.75″
Work height H-series: 12″
Drive motor: 3 Hp
Blade length: 160.5″ – 161.2″
Blade width: 1/8″ – 1″
Blade speed: 50-5200 (fpm)
Floor to work table top F-series: 40-1/8″
Floor to work table top H-series: 40-1/2″
Table Tilt F-series: 45ª R/15ª L
Table Tilt H-series: 15ª R/15ª L
Table Travel H-series: 13″
Band wheel diameter: 20.38″ (2 wheel)
Length: 51″
Width: 44″
Height: 81″
Net weight F/H: 1,390/1,500 lbs.
Shipping weight F/H: 1,540/1,650 lbs.
