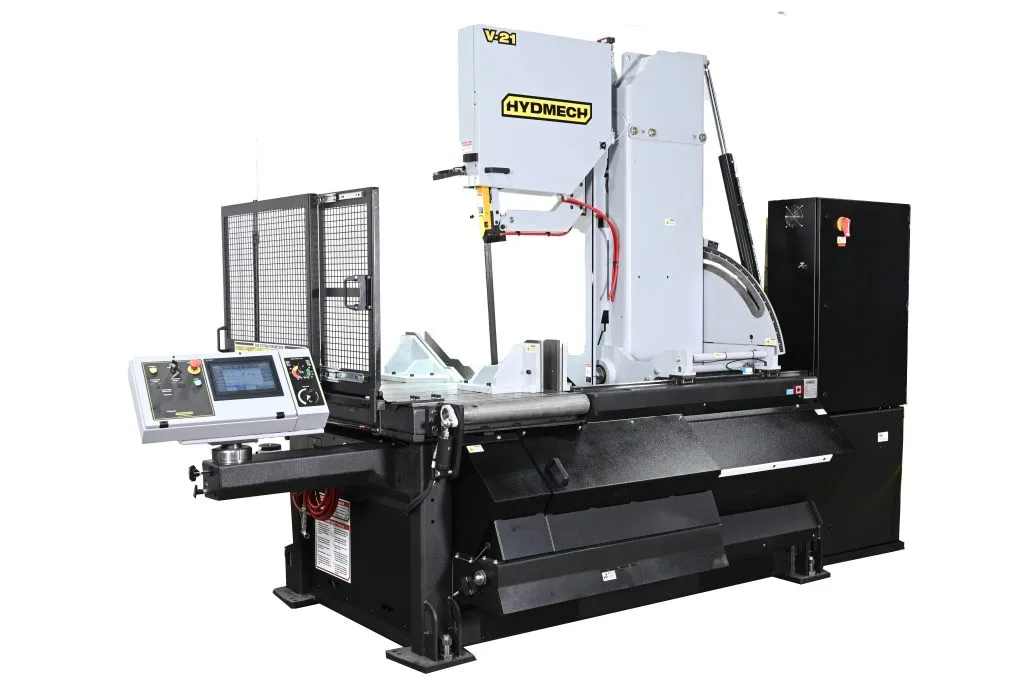

NEW HYD-MECH V-21

Name: NEW HYD-MECH V-21
Brand: HYD-MECH
SKU: 494698
Availability: InStock

Safety note

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

Overview

Type:

Vertical Band Saws

Manufacturer:

HYD-MECH

Model:

V-21

Stock #:

38186

Description

21″ x 26″ New HydMech Semi-Automatic Vertical Mitering Band Saw Model V-21 Specification:
21″ x 26″ New HydMech Semi-Automatic Vertical Mitering Band Saw Model V-21 Standard Features:
4° canted head allows for efficient cutting and improved blade life
“Go to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Hydraulic DDF system
Two full stroking hydraulic vises
Hydraulically powered, programmable guide arm attached to saw column
Hydraulic chip paddle conveyor
10” color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting.
10 HP VFD. True direct blade drive – no belts/pulleys
Replaceable blade brush
Robust steel base
Digital feed rate display
Easy access electrical panel and hydraulics
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Optional Features:
Chip bucket with pump
Hydraulic overhead bundling
Mist lubrication
Pop-up feed roller
Tall square vise inserts
Idler conveyors
Powered conveyors

21″ x 26″ New HydMech Semi-Automatic Vertical Mitering Band Saw Model V-21 Optional Accessories:

Specifications

90° rectangular (h x w): 26” x 21” (22” x 21” w/bund)
90° round: 21″
45° right and left rectangular (h x w): 18 1/4” x 21” (15 1/2” x 21” w/bund)
45° right and left round: 17″
60° right rectangular (h x w): 12 1/2” x 21” (7” x 21” w/bund)
60° right round: 12.5″
60° left rectangular (h x w): 11” x 21” (7” x 21” w/bund)
60° left round: 11″
Blade Drive: 10 HP VFD
Blade Speed: 65-385 SFM
Blade Size: 1.5″ x 19′ 4″
Table Height: 44″
Voltages Available: 480 (208, 240, 575v requires a transformer supplied at no charge)
Weight: 8.700 lbs
Dimensions (w x l x h): 76” x 181” x 112”
Coolant Tank Capacity: 32 Gallons
Hydraulic Tank Capacity: 7 Gallons
Mitering Capability: 60° left to 60° right
