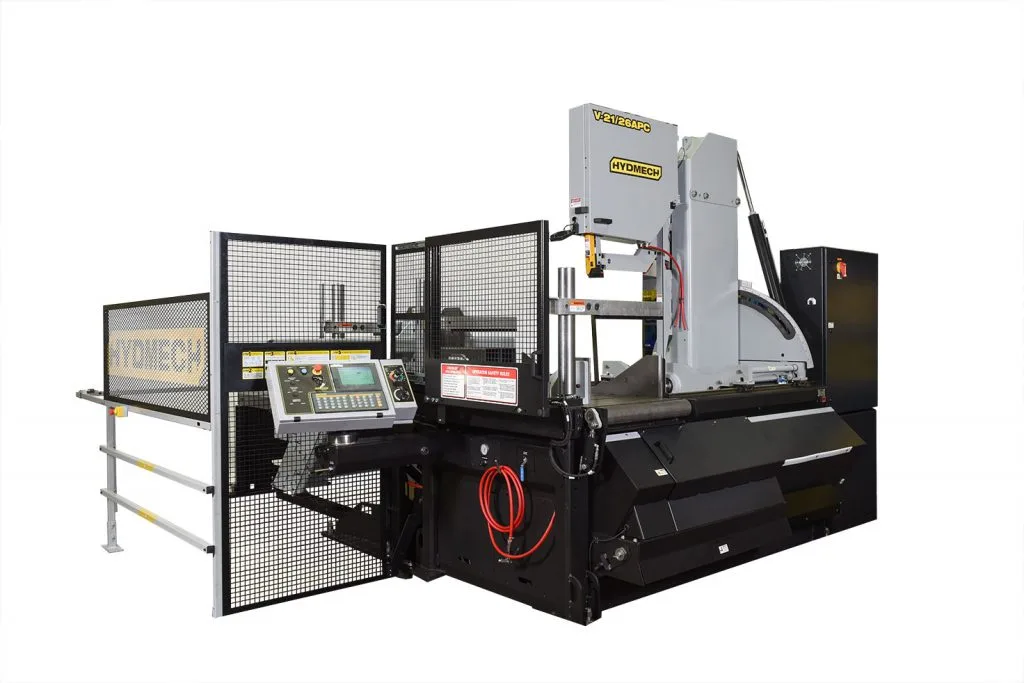

NEW HYD-MECH V-21/26APC

21″ x 26″ New HydMech Automatic Vertical Mitering Band Saw Model V-21/26APC Specification:
21″ x 26″ New HydMech Automatic Vertical Mitering Band Saw Model V-21/26APC Standard Features:
4° canted head allows for efficient cutting and improved blade life
60” bar feed, left side
Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation.
Powered by a rack and pinion servo drive.
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Hydraulic head tilt
Cast iron band wheels
Hydraulic DDF system
Hydraulically powered, programmable guide arm attached to saw column.
5” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
10 HP VFD. True direct blade drive – no belts/pulleys
Blade chamber separates material from cut part
Hydraulic chip conveyor
Replaceable blade brush
Out of stock switch
Blade breakage switch Easy access electrical panel and hydraulics
Pop-up feed roller – one, opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Optional Features:
Chip bucket with pump
Full capacity hydraulic overhead bundling
Mist lubrication
Out feed vise
Out feed vise bundling
Right side infeed shuttle
10’ shuttle infeed
Power transformer
Tall square vise inserts
Bridge/interface bracket
Powered bridge/interface bracket
Idler conveyors
Powered conveyors

21″ x 26″ New HydMech Automatic Vertical Mitering Band Saw Model V-21/26APC Optional Accessories:

90° rectangular (h x w): 26” x 21” (22” x 21” w/bund)
90° square: 21″
90° round: 21″
45° right rectangular (h x w): 18″ x 21″ (15.5″ x 21″ w/bund)
45° right square: 18″
45° right round: 17″
45° left rectangular (h x w): 18″ x 21″ (15.5″ x 16.5″ w/bund)
45° left square: 18″
45° left round: 17″
60° right rectangular (h x w): 12.5” x 21” (7” x 21” w/bund)
60° right square: 12″
60° right round: 12″
60° left rectangular (h x w): 11” x 21” (7” x 16.5” w/bund)
60° left square: 11″
60° left round: 11″
Blade Drive: 10 HP VFD
Blade Speed: 65-385 SFM
Blade Size: 1.5″ x 19′ 4″
Table Height: 44″
Voltages Available: 480 (208, 240, 575v Optional power transformer required)
Weight: 14,700 lbs
Dimensions (w x l x h): 181″ x 184″ x 112″
Coolant Tank Capacity: 32 Gallons
Hydraulic Tank Capacity: 7 Gallons
Mitering Capability: 60° left to 60° right
