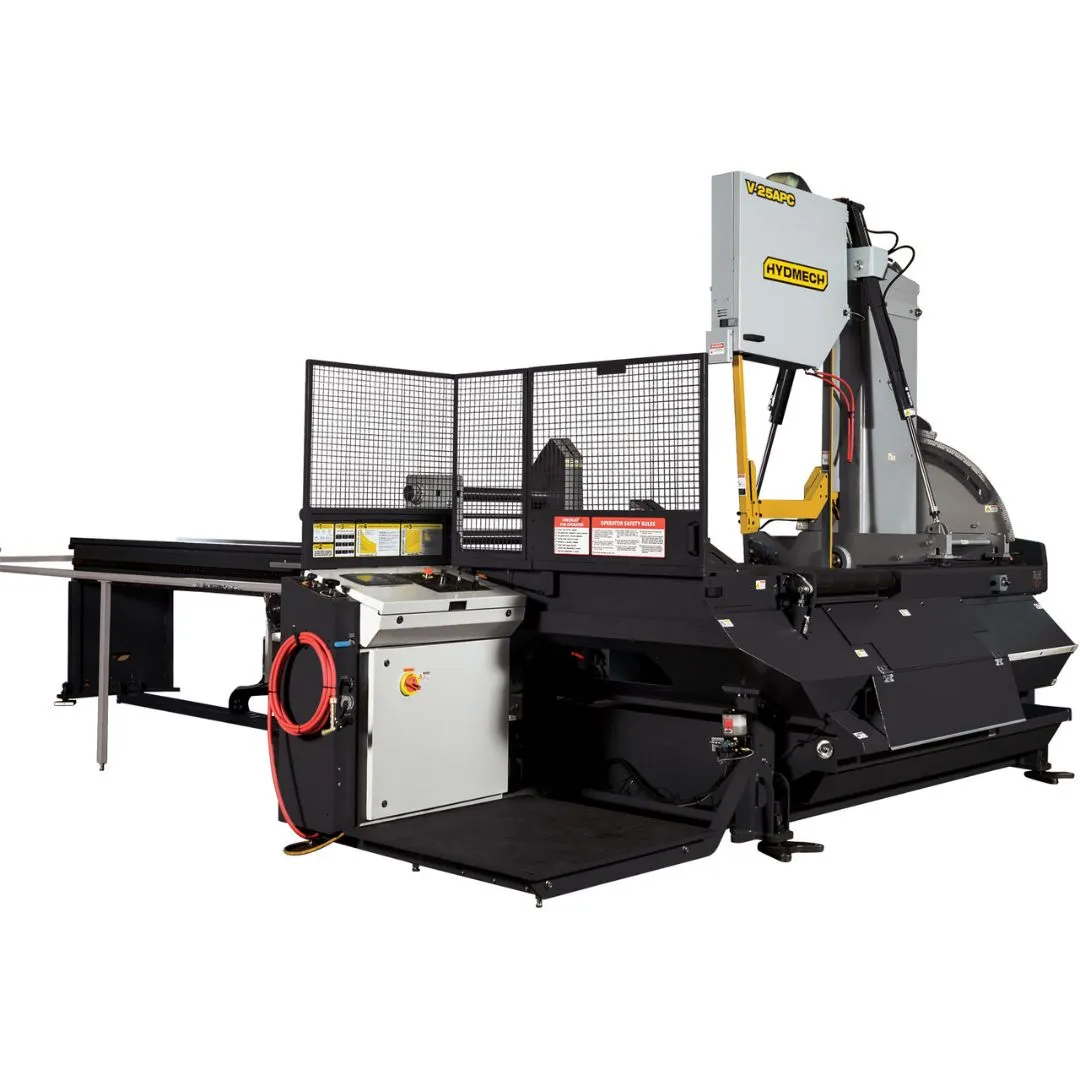

NEW HYD-MECH V-25APC

25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25APC Specifications:
25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25APC Standard Features:
6° canted head allows for efficient cutting and improved blade life
60” bar feed, left side
Shuttle features automatic multi-indexing up to 60” (120” optional) in a single stroke with automatic kerf compensation
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Hydraulically powered, programmable guide arm attached to saw column.
Robust steel base
Hydraulic head tilt
Cast iron band wheels
8.5” GT25 color touch screen display, Mitsubishi FX5U PLC No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. User Friendly Graphical Icon programing for miter cutting, 1000 jobs, 20 jobs in queue
Two full stroking hydraulic vises
10 HP VFD. True direct blade drive – no belts/pulleys
Blade chamber separates material from cut part
Hydraulic chip conveyor
Out of stock switch
Replaceable blade brush
Blade breakage switch Easy access electrical panel and hydraulics
Pop-up feed roller – one, opposite bar feed
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Laser light
Work light
Easy access electrical panel and hydraulics
Blade breakage switch
Variable vise pressure
25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25APC Optional Features:
Chip bucket with pump
Hydraulic overhead bundling
Mist lubrication
Tall square vise inserts
Out feed vise
Right side infeed shuttle
10’ shuttle infeed
Hydraulic chip conveyor
Bridge/interface bracket
Power transformer
Powered bridge/interface bracket
Idler conveyors
Powered conveyors
25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25APC Optional Accessories:

90° rectangular (h x w): 30″ x 25″
90° square: 25″
90° round: 25″
45° rectangular (h x w): 21″ x 25″
45° square: 21″
45° round: 21″
60° right rectangular (h x w): 14.5″ x 25″
60° right square: 14.5″
60° right round: 14.5″
60° left rectangular (h x w): 13″ x 25″
60° left square: 13″
60° left round: 13″
Blade Drive: 10 HP VFD
Blade Speed: 75-350 SFM
Blade Size: 1.5″ x 21′ 0.5″
Table Height: 44″
Voltages Available: 480v
Weight: 15,000 lbs
Dimensions (w x l x h): 158” x 254” x 123”
Coolant Tank Capacity: 38 Gallons
Hydraulic Tank Capacity: 7 Gallons
Mitering Capability: 60° left to 60° right
