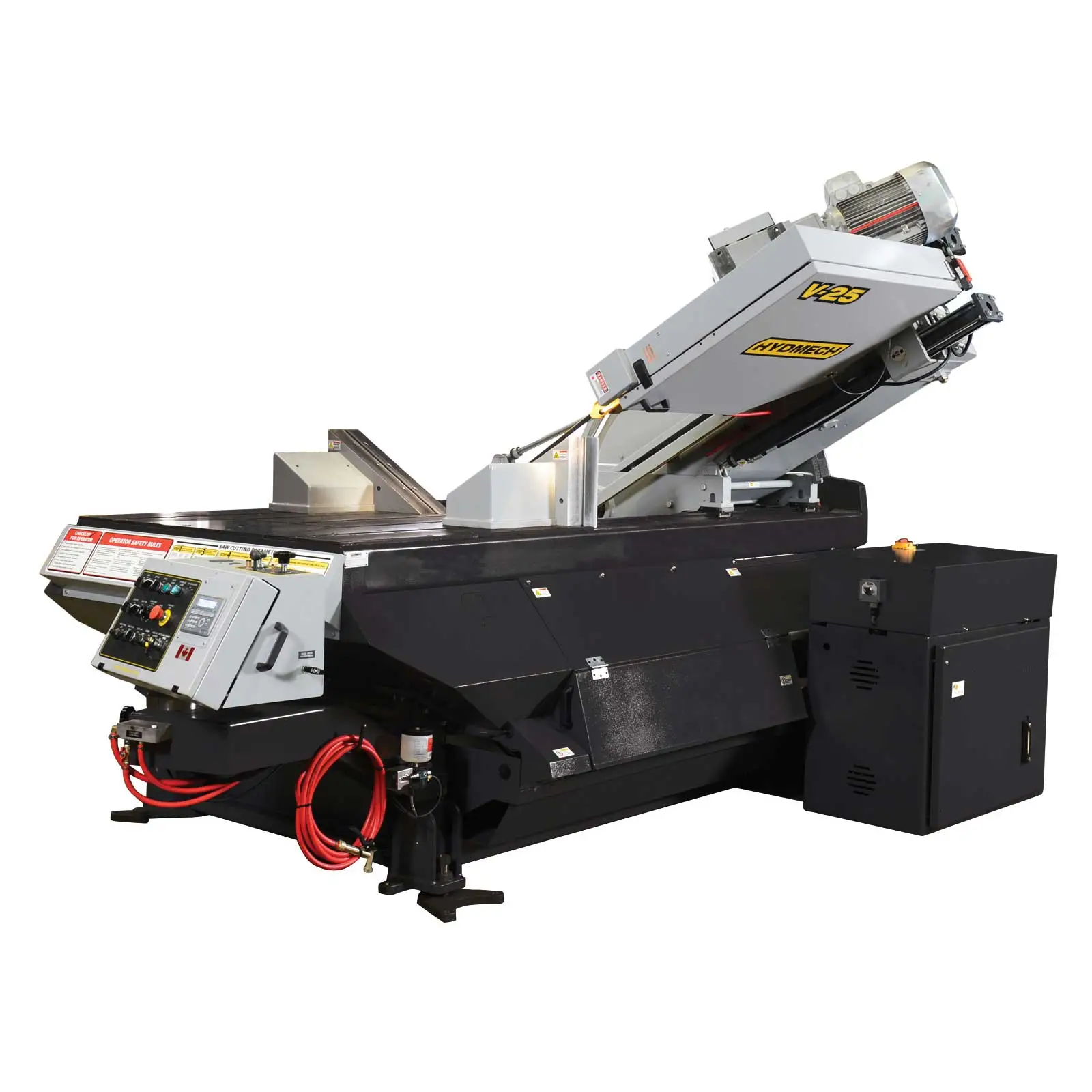

NEW HYD-MECH V-25

25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25 Specifications:
25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25 Standard Features:
6° canted head allows for efficient cutting and improved blade life
Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right
Digital angle display
Two full stroking hydraulic vises
Powered movable guide arm
Laser light
10 HP VFD. True direct blade drive – no belts/pulleys
Cast iron band wheels
Replaceable blade brush
Robust steel base
Easy access electrical panel and hydraulics
Blade breakage switch
Variable vise pressure
Hydraulic band tensioning with digital readout
Replaceable carbide guide inserts
3 HP hydraulic pump provides system pressure
Safety door interlocks
Flood coolant with wash down hose
Work light
25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25 Optional Features:
Chip bucket with pump
Hydraulic overhead bundling
Mist lubrication
Pop-up feed roller
Tall square vise inserts
Hydraulic chip conveyor
Bridge/interface bracket
Powered bridge/interface bracket
Hydraulically positioned datum line vertical rollers (when the non-driven pop up rollers come up, the vertical rollers move forward, moving the material off of the table and away from the datum line. A must for cutting banded material. Note: you must purchase both non-driven pop up rollers to use this option.)
Idler conveyors
Powered conveyors

25″ x 30″ New HydMech Vertical Mitering Band Saw Model V-25 Optional Accessories:

90° rectangular (h x w): 30″ x 25″
90° square: 25″
90° round: 25″
45° rectangular (h x w): 21″ x 25″
45° square: 21″
45° round: 21″
60° right rectangular (h x w): 14.5″ x 25″
60° right square: 14.5″
60° right round: 14.5″
60° left rectangular (h x w): 13.5″ x 25″
60° left square: 13.5″
60° left round: 13.5″
Blade Drive: 10 HP VFD
Blade Speed: 75-350 SFM
Blade Size: 1.5″ x 21′ 0.5″
Table Height: 44″
Voltages Available: 208, 240 or 480, or 575v
Weight: 10,000 lbs
Dimensions (w x l x h): 96″ x 160″ x 123″
Coolant Tank Capacity: 38 Gallons
Hydraulic Tank Capacity: 7 Gallons
Mitering Capability: 60° left to 60° right
