This heavy duty vertical bandsaw is designed for large production pieces. A 26″ capacity, power feed table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, rip fence, miter gauge, and 4 cutting modes. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.

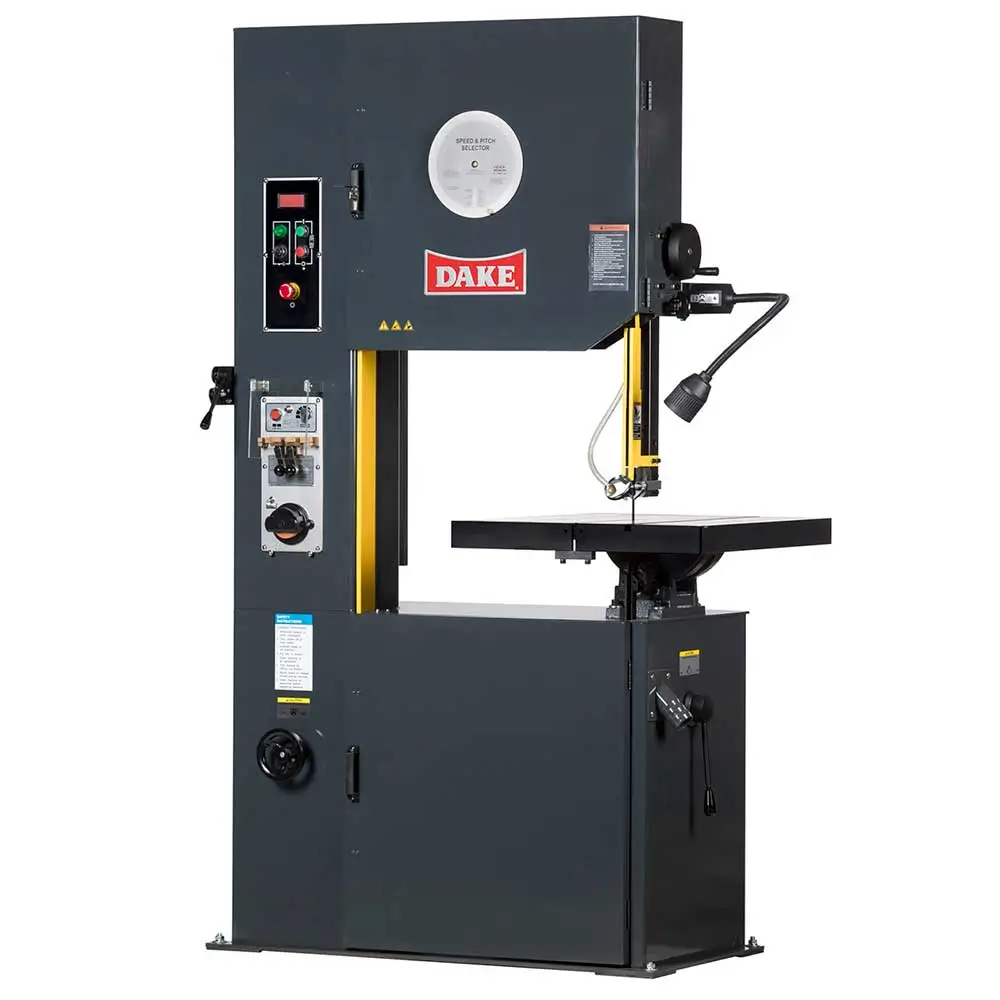

26″ New Dake Vertical Band Saw Model V-26E Specifications:
Features:
Variable speeds with 50 – 415 feet per minute in low range and 550 – 5,000 feet per minute in the high range.
Electronic Power Fed Table. Torque motor driven with rack and pinion.
Heavy cast table with chip clearance grooves.
Low voltage controls, main power lock out switch and door limit switches.
Rip Fence, miter gauge, circle cutting attachment.
Built in blade welder with grinder and shear to easily fix broken blades.
Blade speed / pitch selector guide and digital tachometer.
Work light comes standard for increased visibility.
Standard Equipment:
Heavy duty frame
Rip fence
Work light
Blade welder/grinder/shear
Speed indicator (digital readout)
Blade tension indicator
Digital tachometer
Chip blow & blade brush
1 standard blade
26″ New Dake Vertical Band Saw Model V-26E Optional Accessories:
Mist system
Transformer 9KVA
Part Number: 987032-2
Horsepower: 3
Voltage: 220V/440V, 3 phase
Blade Width: 1/4″ – 1″
Blade Length: 184-1/4″
Blade Speed: 550-5,000 fpm
Worktable Travel Distance: 12″
Band Wheels Number: 2
Band Wheels Size: 26-1/4″
Throat Size (Band to Column): 26″
Maximum Work Height: 13″
Worktable Dimensions: 23-1/2″ x 27-1/2″
Worktable Tilt: 45º R / 10º L
Worktable Height: 39-3/8″
Machine Height: 84″
Machine Floor Space: 51″ x 32″
Weight: 1,540 lbs
