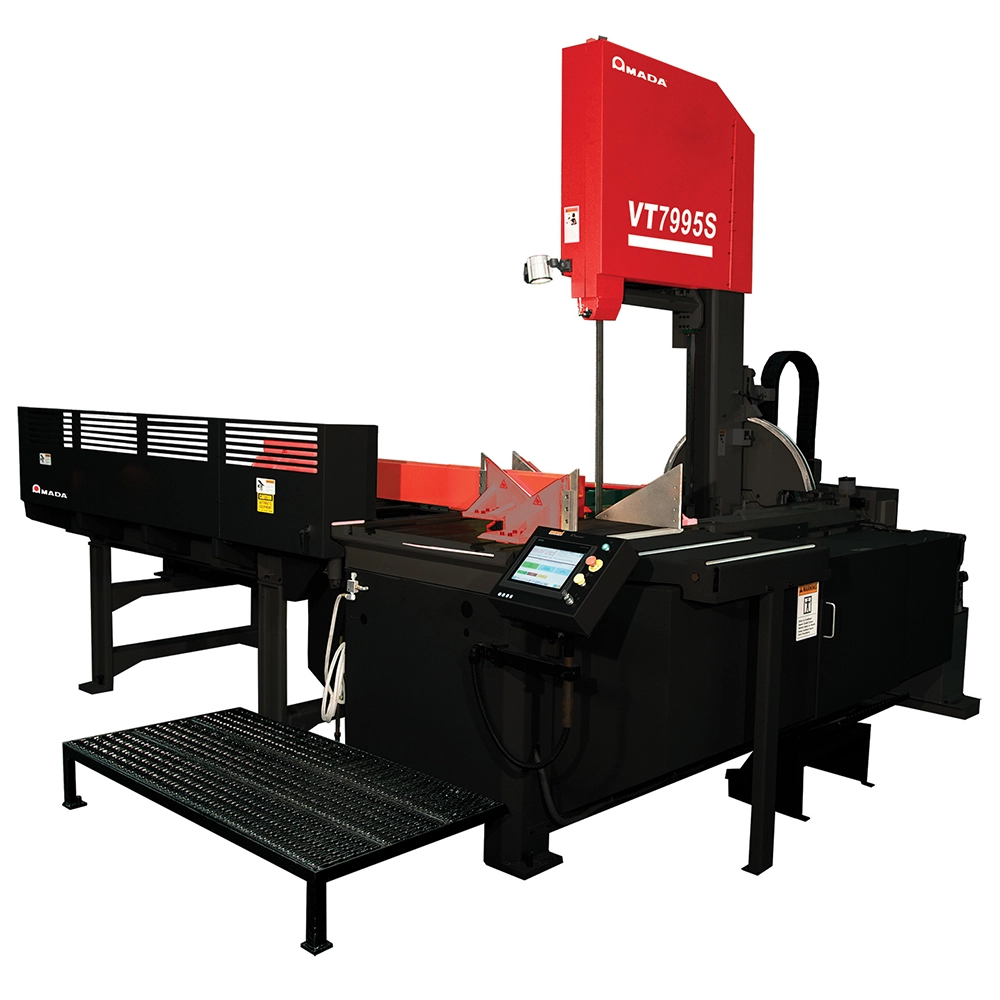

Speed Range: Infinitely variable 60 to 400 FPM (18.3 to 122m/min), 15 HP Standard. Blade speed can be automatically set when material is selected.
Tilting Column: For miter cutting up to 60º left and right of vertical. Electronic tilt-The column is electrically powered, chain driven, with encoder feedback and PC3 touch screen controller for precision miter positioning.
0º or 3º Canted Column: Standard 3º forward canted head increases cutting efficiencies when cutting structural materials. An optional straight column for notching or cutting rounds and pipe.
Blade Guide: Rotating easy load combination carbide and ball bearing roller guides with self tensioning design.
Upper Blade Guide Arm: Hydraulically positioned and locking, controlled by selector switch at operator’s station.
Coolant System/Manual Chip Conveyor: Built-in with flood system, available with optional drop lubrication system (requires compressed air connection) (Option code ML2), including chip pan with manual hand crank type chip conveyor. A flushing hose is included to wash away chips from hard to reach places reducing clean-up time. Coolant capacity is 75 gallons.
Work-Rest Rollers: Two turned ball bearing rollers, one on the entry side and one on the discharge side of the machine bed.
Vises: Hydraulic, full stroking with 9-1/2″ high x 15″ wide 60º faceplates. Optional variable vise pressure available (Option Code M9A).
PC3 Programmable Control®: Provides a Programmable Logic Control Unit with a 12″ color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library.
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Round 0° (diameter): 31.25″
Round at 45° right (diameter): 25.5″
Round at 45° left (diameter): 24″
Round at 60° right (diameter): 17.5″
Round at 60° left (diameter): 15.75″
Rectangle at 0° (W x H): 31.25″ x 37.5″
Rectangle at 45° right (W x H): 31.25″ x 25.5″
Rectangle at 45° left (W x H): 31.25″ x 24″
Rectangle at 60° right (W x H): 31.25″ x 17.5″
Rectangle at 60° left (W x H): 31.25″ x 15.75″
Maximum vise opening: 31.25″
Work load capacity: 5,000 lbs
Blade size (L x T x W): 25′ x 0.063″ x 2″
Blade speed: 60-400ft/min by Inverter
Tension control: Hydraulic
Cutting control: Direct Force Sensing Electric Ball Screw with PC3 Programmable Control
Blade feed force: 0 to 350 lbs
Type: Main Vise (Optional second vise is available to install)
Control: Hydraulic, Full Stroking with 9-12″ High x 15″ Wide 60° Faceplates
Saw blade: 15 HP
Hydraulic pump: 5 HP
Cutting fluid pump: 1/2 HP
Tilt gear: 1/15 HP
Power supply voltage: AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, voltage must be specified when ordering
Tank capacity: 75 gal
Pump type: Electric
Tank capacity: 10 gal
Chip disposal: Manual
Machine dimensions (W x L x H): 153.6″ x 191.8″ x 144.7″
Table Height (Above Floor): 52″
