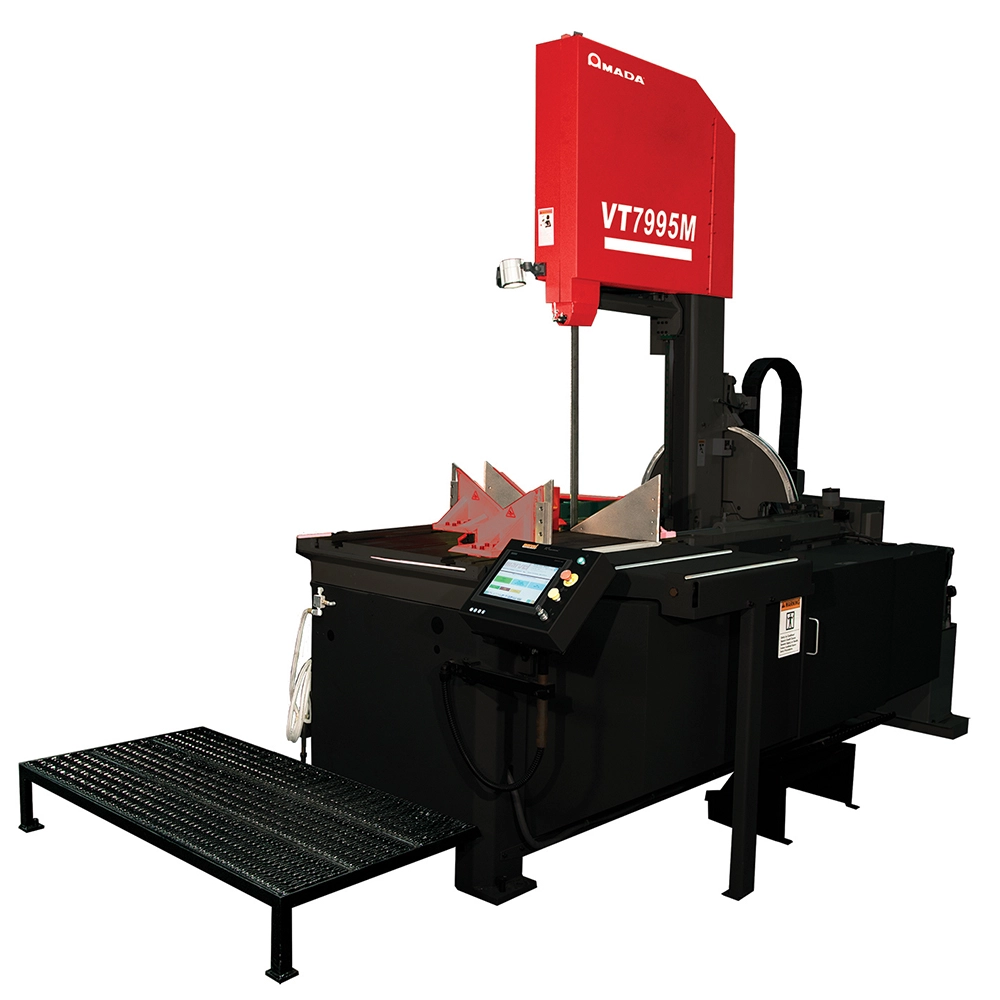

Speed Range: Infinitely variable 60 to 400 FPM (18.3 to 122m/min), 15 HP Standard. Blade speed can be automatically set when material is selected.
Tilting Column: For miter cutting up to 60º left and right of vertical. Electronic tilt-The column is electrically powered, chain driven, with encoder feedback and PC3 touch screen controller for precision miter positioning.
0º or 3º Canted Column: Standard 3º forward canted head increases cutting efficiencies when cutting structural materials. An optional straight column for notching or cutting rounds and pipe.
Blade Guide: Rotating easy load combination carbide and ball bearing roller guides with self tensioning design.
Upper Blade Guide Arm: Hydraulically positioned and locking, controlled by selector switch at operator’s station.
Coolant System/Manual Chip Conveyor: Built-in with flood system, available with optional drop lubrication system (requires compressed air connection) (Option code ML2), including chip pan with manual hand crank type chip conveyor. A flushing hose is included to wash away chips from hard to reach places reducing clean-up time. Coolant capacity is 75 gallons.
Work-Rest Rollers: Two turned ball bearing rollers, one on the entry side and one on the discharge side of the machine bed.
Vises: Hydraulic, full stroking with 9-1/2″ high x 15″ wide 60º faceplates. Optional variable vise pressure available (Option Code M9A).
PC3 Programmable Control®: Provides a Programmable Logic Control Unit with a 12″ color, touch screen display. The control features graphical part programming with memory for up to 500 jobs and parts, as well as a material selection chart and customizable material library.
Round 0° (diameter): 31.25″
Round at 45° right (diameter): 25.5″
Round at 45° left (diameter): 24″
Round at 60° right (diameter): 17.5″
Round at 60° left (diameter): 15.75″
Rectangle at 0° (W x H): 31.25″ x 37.5″
Rectangle at 45° right (W x H): 31.25″ x 25.5″
Rectangle at 45° left (W x H): 31.25″ x 24″
Rectangle at 60° right (W x H): 31.25″ x 17.5″
Rectangle at 60° left (W x H): 31.25″ x 15.75″
Maximum vise opening: 31.25″
Work load capacity: 5,000 lbs
Blade size (L x T x W): 25′ x 0.063″ x 2″
Blade speed: 60-400ft/min by Inverter
Tension control: Hydraulic
Cutting control: Direct Force Sensing Electric Ball Screw with PC3 Programmable Control
Blade feed force: 0 to 350 lbs
Type: Main Vise (Optional second vise is available to install)
Control: Hydraulic, Full Stroking with 9-12″ High x 15″ Wide 60° Faceplates
Saw blade: 15 HP
Hydraulic pump: 5 HP
Cutting fluid pump: 1/2 HP
Tilt gear: 1/15 HP
Power supply voltage: AC230V +- 10% or AC460V +- 10%
3PH, 60 Hz, voltage must be specified when ordering
Tank capacity: 75 gal
Pump type: Electric
Tank capacity: 10 gal
Chip disposal: Manual
Machine dimensions (W x L x H): 153.6″ x 191.8″ x 144.7″
Table Height (Above Floor): 52″
