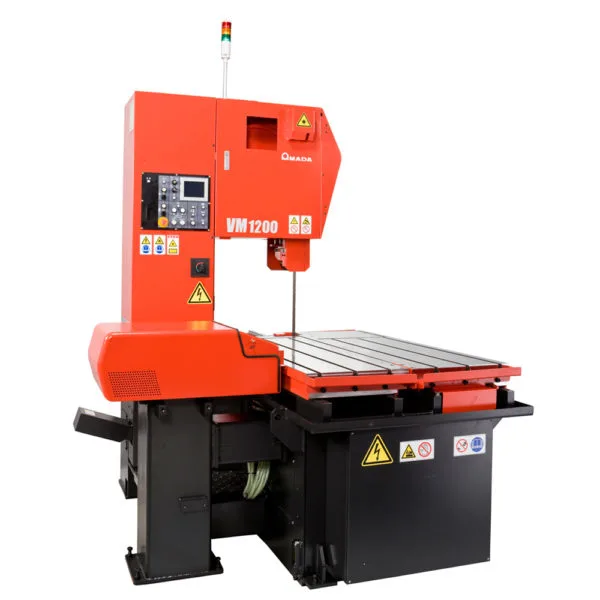

NEW AMADA VM1200

48″ x 20″ New Amada Vertical Plate Band Saw Model VM1200 Specifications:

48″ x 20″ New Amada Vertical Plate Band Saw Model VM1200 Standard Equipment:
Selective Cutting Height

A cutting height setting can be selected from either 20″ (standard).
A cutting height setting can be selected from either 20″ (standard).
Selective Blade Size

A blade can be selected from either a standard 2″ x 0.063″ blade.
A blade can be selected from either a standard 2″ x 0.063″ blade.
Use of Servo Motor and Linear Guide

An AC servo motor and a LM guide are used to move the table for the purpose of accurate cutting control.
An AC servo motor and a LM guide are used to move the table for the purpose of accurate cutting control.
Automatic Adjustment of Guide Position

Once a material size is preset, automatic adjustment can be made to determine an optimum guide position. Upon completion of cutting, automatic stop will take place.
Once a material size is preset, automatic adjustment can be made to determine an optimum guide position. Upon completion of cutting, automatic stop will take place.
Automatically Adjustable Wire Brush

Wire brush contact is automatically adjusted in proportion to wear of wire brush. A message will be displayed to prompt a user to replace the wire brush, when excessive wear is detected.
Wire brush contact is automatically adjusted in proportion to wear of wire brush. A message will be displayed to prompt a user to replace the wire brush, when excessive wear is detected.
Excellent Operability

The color display and touch panel facilitate operation. The embedded CNC-Lite function automatically sets optimum cutting conditions.
The color display and touch panel facilitate operation. The embedded CNC-Lite function automatically sets optimum cutting conditions.
Back Gauge (optional)

Using an optional back gauge can facilitate the alignment of marks.
Using an optional back gauge can facilitate the alignment of marks.
Permissible Loading Mass

In response to a trend toward larger materials, the machine table offers 4,410 loading mass (11,025 lbs for VM-2500).
In response to a trend toward larger materials, the machine table offers 4,410 loading mass (11,025 lbs for VM-2500).

Capacity (L x H): 48″ x 20″
Throat Depth: 20″
Work Load Capacity: 4,410 lbs
Blade Size (L x T x W): 15’4″ x 0.063″ x 2″
Blade Speed: 33 – 295 ft/min by Inverter
Tension Control: Hydraulic
Cutting Control: AC Servo Motor
Saw Blade: 7.5 HP
Hydraulic Pump: 1 HP
Wire Brush: 1/8 HP
Cutting Fluid Pump: 1/4 HP
Table Feed Motor: 3/4 HP
Power Voltage: AC220V±10%, 3 PH, 60 Hz
All Other Voltages Require Transformer
Power Requiremnet: 11 kVA
Tank Capacity: 27.7 gal
Pump Type: Electric
Tank Capacity: 2.6 gal
Pressure Setting: 498 psi
Chip Disposal: Chip Conveyor
Mechanism: Table Feed, AC Servo Motor with Rack and Pinion
Stroke: 49.2″
Machine Dimensions (W x L x H): 79.5″ x 128.5″ x 96.5″
Table Height: 39.6″
Machine Weight: 7,277 lbs
