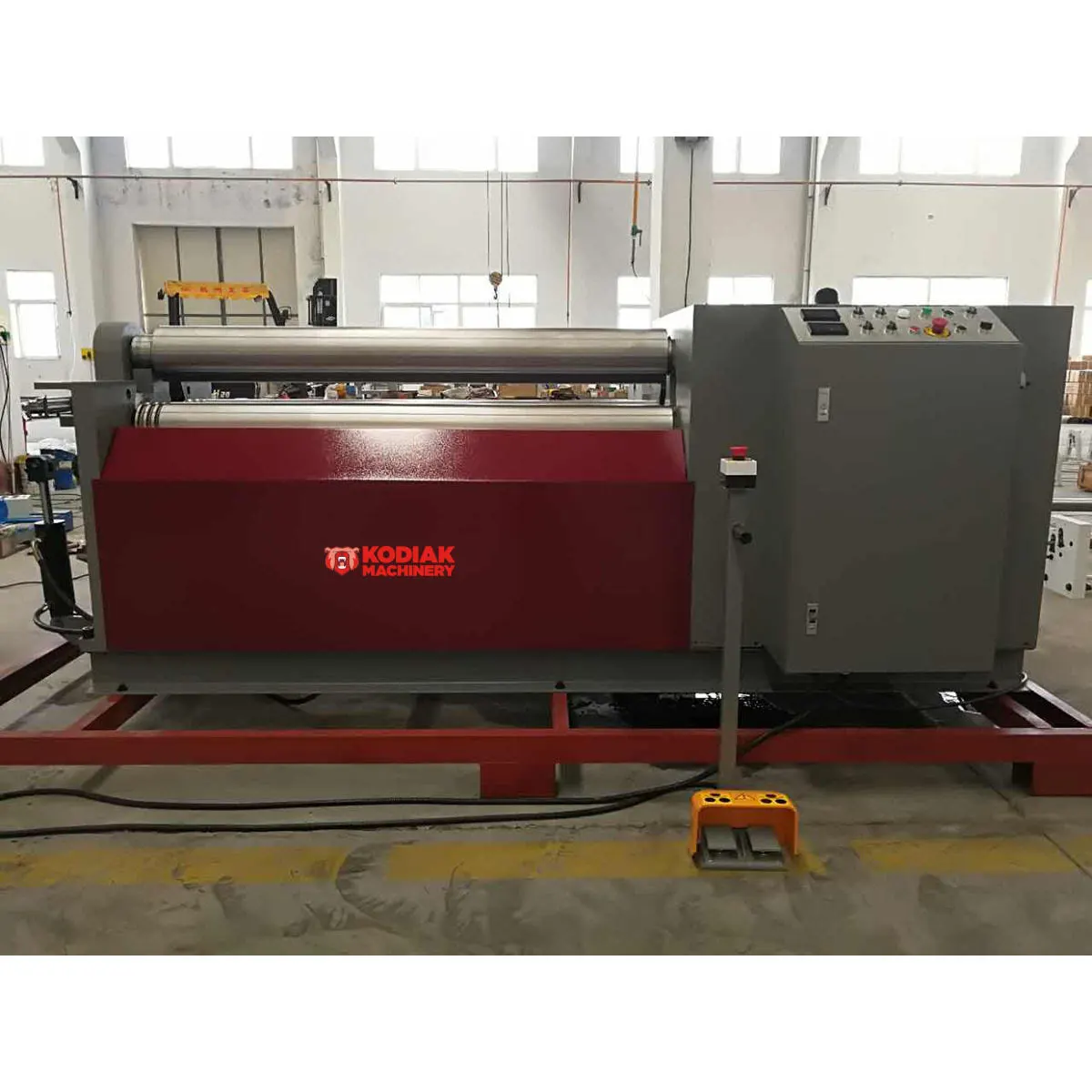

NEW Kodiak KBR-1038DP
Overview
ISO 9001 certified & OSHA code
Taiwan Machines
Hydraulic drop off york up/down for off loading workpiece
(2) each LED indicators for bending roll & pinch roll position
Built-in cone attachment
With 3 wire grooves, 3/8”, ½” and 5/8”
Safety line all around the machine for emergency stop
Heavy Duty all steel welded machine construction
German Hydraulic logic system centrally located and quiet
Schneider electrical components
Bending roll & pinch roll are hydraulic powered up/down & tilting
Crowning rolls for perfect performance
Planetary reduction gear and pump
All three rolls are made of high grade alloy steel
All 3 rolls are driven and run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
Power source 208V/220V, ( option 460 V , 3 phase)
One year industrial warranty for parts
(2) each LED indicator for bending roll & pinch roll position
Safety line all around the machine for emergency stop
Removable safety foot pedal with control panel
Safety fence for enclosure of the back side of the machine
Specs
Rolling capacity:
Mild steel
Stainless steel
Min. rolling dia.: 10’x3/8”
8’x1/4”
11”
Rolls length
Top Roll Dia.
Pre-bend: 10”
10”
0.32”
Rolls Speed: 150” / min
Rolls opening: 5 -1/4”
Oil tank cap.: 50 Gal.
Main motor: 20 HP
Weight: 14,850 lbs
Machine dimensions, LxWxH: 186″ x 55″ x 69”
