Overview
Type:
Plate Bending Rolls including Pinch
Manufacturer:
BENDMAK
Model:
CY3R-HHS
Stock #:
22094
Description

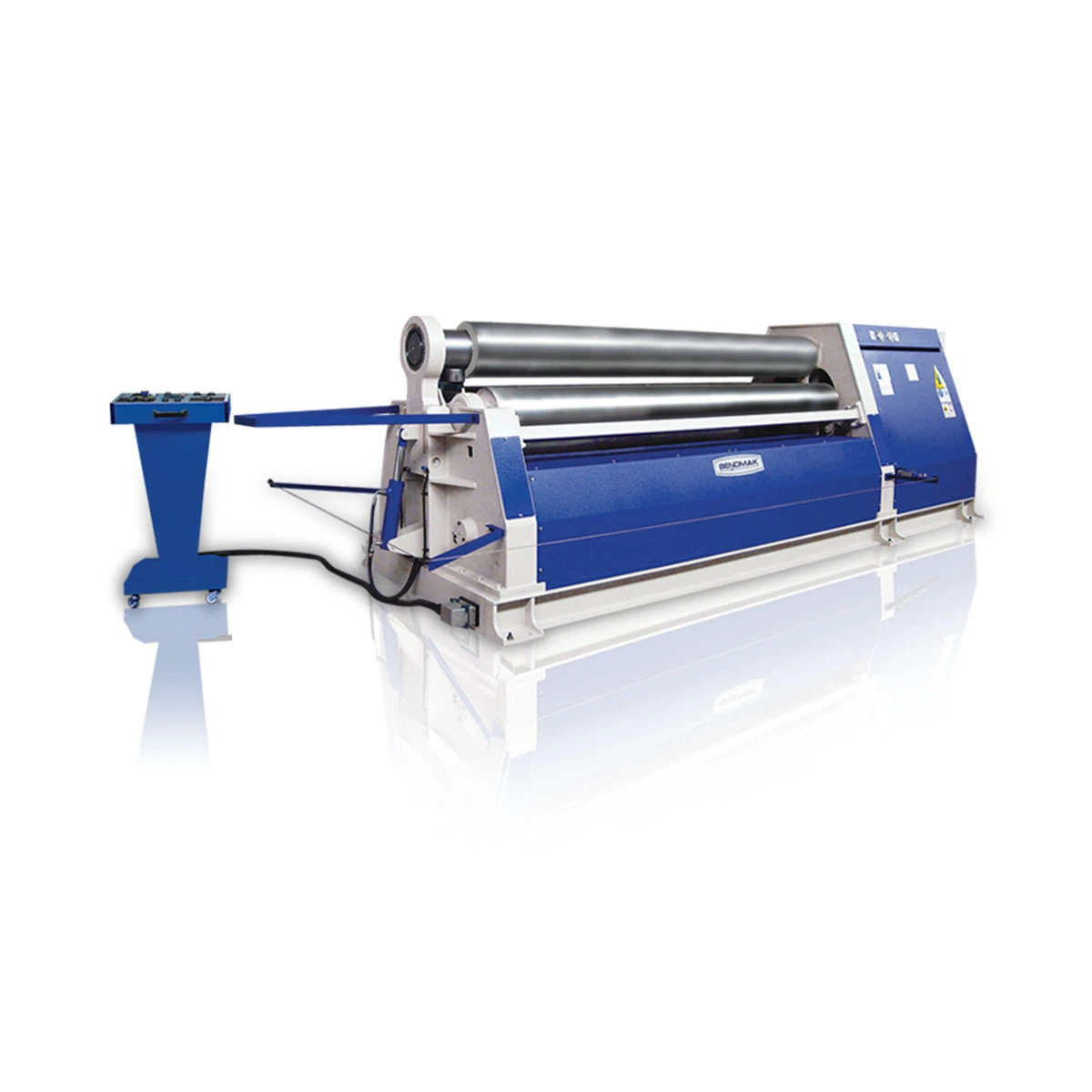

10′ x 1/2″ New Bendmak 3 Rolls Hydraulic Cylinder Machine Model CY3R-HHS 330-30/16
CY3R-HHS provides economical and reliable solutions with torque provided without any power loss. CY3R-HHS meets your needs in a wide range from 2 mm to 200 mm plate thickness and from 500 mm to 12000 mm sheet width.
CY3R-HHS 3 Rolls Hydraulic Cylinder Bending Machines, models with upper shaft diameter of 230 mm and above, each 3 shaft is independently driven by a reducer and hydraulic motor. The side balls are driven. The top ball is chain driven.
Bendmak CY3R-HHS 3 roller twisting machines allow pre-twisting on both sides without removing the sheet. With its braking system, it ensures perfect feeding by preventing the risk of material slipping.
Conical bending device
Induction hardened rollers
Digital display for side rollers
All steel (ST 52) welding construction machine body
Separate from the machine, mobile control panel
Dual speed control
Rolled roller bearings
Upper roller cover hydraulically opening and closing from the control panel. The upper roller automatically raises when the cover is opened.
Conical opening and closing via the control panel
CY3R-HHS Wheel Roller Twisting Machines, models with upper shaft diameter of 230 mm and above, all 3 shafts are independently driven by reducer and hydraulic motor. The balls are driven. The top ball is chain driven.

Specifications

Working Length: 3100 mm; 122.05″
Max Thickness: 16 mm; 0.63″
Pre-Bending: 13 mm; 0.51″
Top Roll Diameter: 330 mm; 12.99″
Side Roll Diameter: 300 mm; 11.81″
Motor Power: 15 kw
Dimensions: 208.66″, 74.80″, 74.80″
Weight: 23,324.91 lbs
