Overview
Type:
Plate Bending Rolls including Pinch
Manufacturer:
U.S. INDUSTRIAL
Model:
USR1025
Stock #:
37395
Description

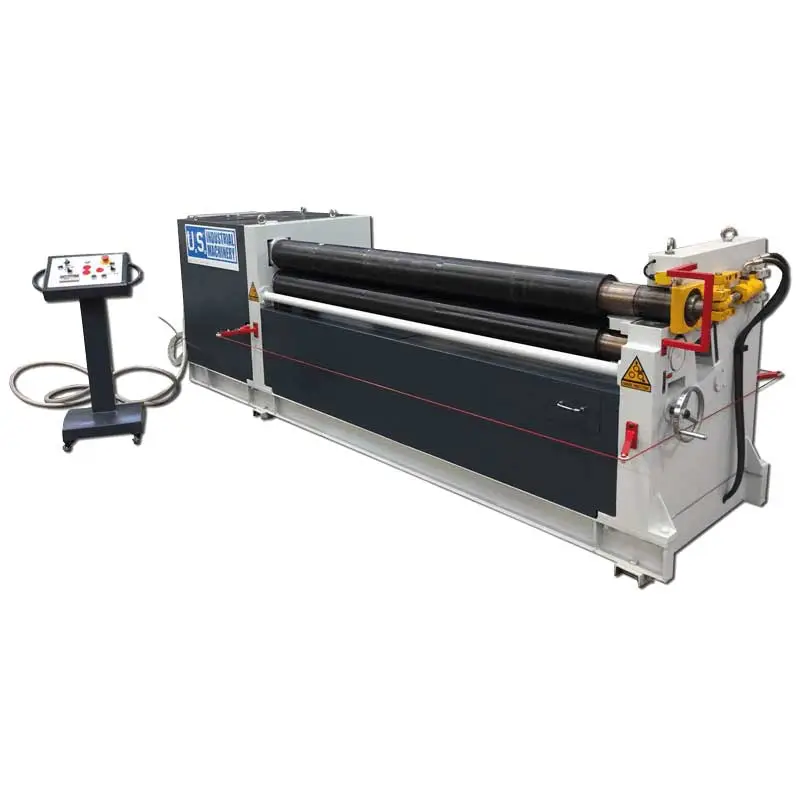

10′ x 1/4″ New U.S. Industrial Initial Pinch Plate Roll Model USR1025 Specifications:
10′ x 1/4″ New U.S. Industrial Initial Pinch Plate Roll Model USR1025 Features:
Heavy duty gear-motor drives top and bottom pinch rolls
Powered Bending Roll Adjustment and Manual Precision Pinch Roll Adjustment
Emergency Trip Line
Pedestal Control
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
Machine is usually stocked with optional hydraulic swing-out features for top roll
Machine is usually stocked with optional digital display with memory for position of bending roll
Machine is usually stocked with optional ability to tilt rolls, and blocker for making tapered cones
Machine is usually stocked with optional hardened rolls and black oxide coated
10′ x 1/4″ New U.S. Industrial Initial Pinch Plate Roll Model USR1025 Optional Features:

Specifications

Capacity: 10′ x 1/4″ Mild Steel @ 65000 PSI
Pre-Bend Capacity: 1/4″ Mild Steel @ 65000 PSI
Top & Bottom Roll Diameter: 7.4″/7.5″ (ends/middle)
Bending Roll Diameter: 6.67″/7.1″ (ends/middle)
Speed: 19 FPM
Main Drive Motor: 5.5 HP Reduction Gear Drive
Adjustment Motor for bend roll position: 3 HP
Machine Length: 177″
Machine Width: 54″
Machine Height: 44″
Net Weight: 9,250 lbs
Voltage: 220/440 volts, 3 phase
