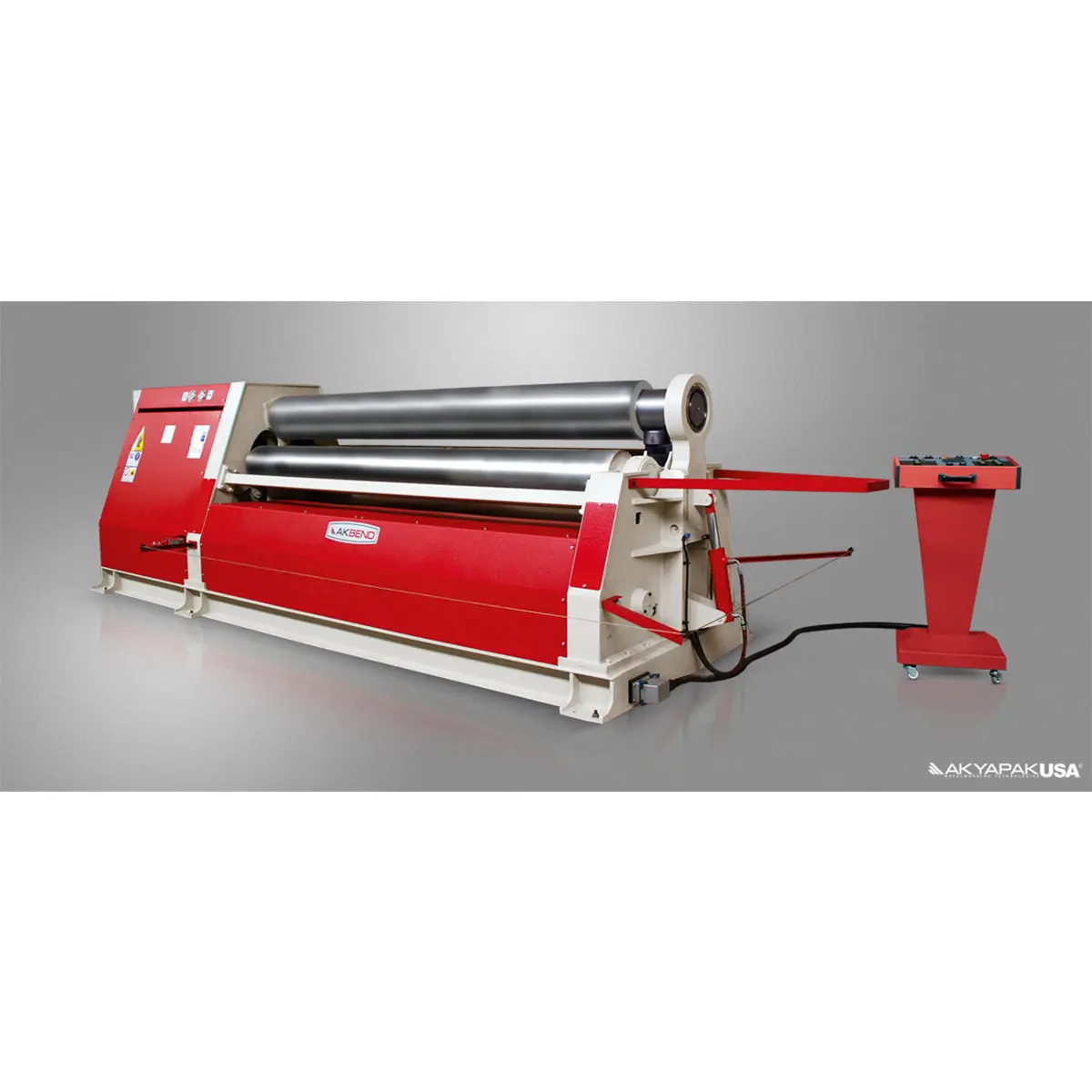

NEW AKYAPAK AHK

new

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
NEW AKYAPAK AHK

NEW AKYAPAK AHK

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Plate Bending Rolls including Pinch
Manufacturer:
AKYAPAK
Model:
AHK
Stock #:
22110
Description

AHK offers reasonable and reliable solutions with the torque it provides without power loss. AHK meets your needs
In AHK 3-Roll Plate Rolling Machines, every 3 rolls are independently-driven with the reducers and hydraulic motors in the models with a roll diameter of 230mm and over, and in the models with a roll diameter of less than 230mm,  the side  rolls are  driven by a hydraulic motor, reducer + gear and the upper roll is driven  by means of chain gear.
Akyapak AHK 3-roll plate rolls allow pre-bending on both sides of the machine without removing the plate. It guarantees excellent feeding by preventing the risk of sliding thanks to the braking system it provides.

Conical bending device
Induction hardened rollers
Digital display for side rollers
All steel (ST 52) welding construction machine body
Separate from the machine, mobile control panel
Dual speed control
Rolled roller bearings
Upper roller cover hydraulically opening and closing from the control panel. The upper roller automatically raises when the cover is opened.
Conical opening and closing via the control panel
CY3R-HHS Wheel Roller Twisting Machines, models with upper shaft diameter of 230 mm and above, all 3 shafts are independently driven by reducer and hydraulic motor. The balls are driven. The top ball is chain driven.

Specifications

Working Length: 4100 mm; 161.42″
Max Thickness: 10 mm; 0.39″
Pre-Bending: 8 mm; 0.32″
Top Roll Diameter: 330 mm; 12.99″
Side Roll Diameter: 300 mm; 11.8″
Motor Power: 11 kw
Dimensions: 248.03″, 74.8″, 74.8″
Weight: 27,778.25 lbs
