The first saw in America to use a patented gravity-feed system providing users an efficient feed rate
Fast & accurate all-purpose saw–easily cutting all metals, plastics, & woods
Horizontal band saw on a vertical frame gives users the versatility of both saw styles
Precision for complex cuts
Auto-feed for high volume cutting
Feed system: Gravity feed
Blade travel: 9″ into work
Cutting capacity at 90º: Round: 8.5″
Rectangle: 14.5″ x 8.5″

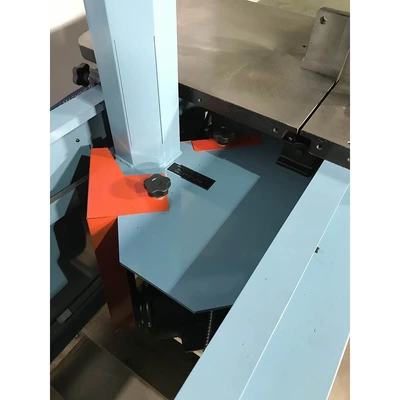

Miter cut angle range: 0º-45º (material can rotate 45º in clamp)
Bevel cut angle range: N/A
Capacity under guides: 14.5″
Throat: 8 3/4″
Blade size (ships with saw): 3/4″ width x 8/12T x 10′ length 0.035 thick (bi-metal)
Blade size (accepted widths): 1/4″, 3/8″, 1/2″ , 5/8″ and 3/4″
Blade speeds: 70, 140, 270 and 525 fpm

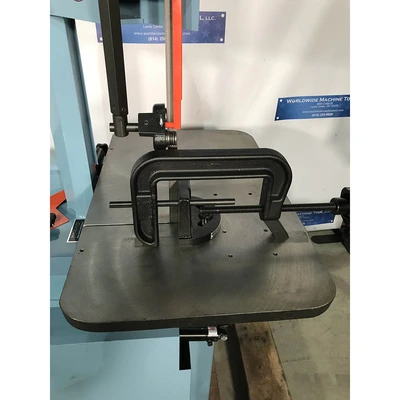

Table: Precision ground cast iron table: 18 1/2″ x 30″
Table height: 30″ from floor (no casters)
Motor: 1 HP, 110/220V, 60-cycle single-phase; 1 HP 220/440V, 60-cycle three-phase
Saw dimensions: 30″ width x 40″ length x 66″ height
Shipping dimensions: 35″ width x 48″ length x 73″ height
Shipping weight: 675 lbs F.O.B. Cleveland, Ohio
