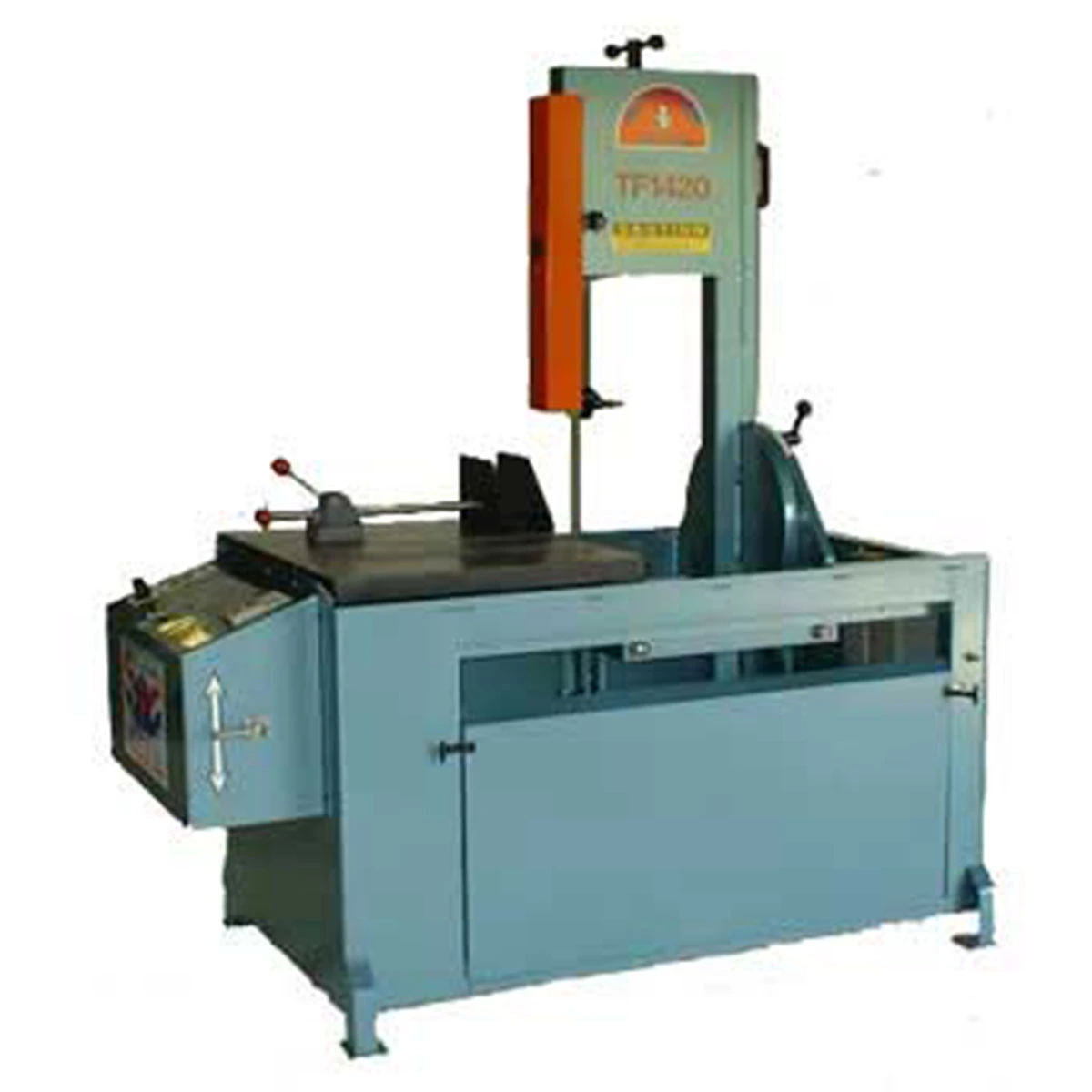

Combining large capacity and versatility, the TF1420 makes quick work of large and small jobs

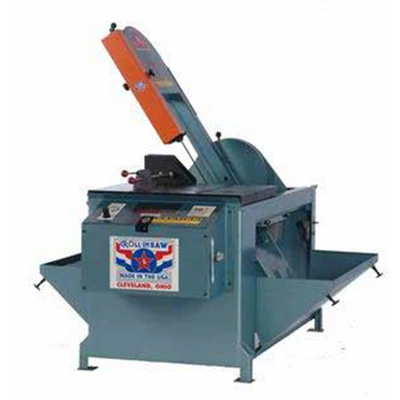

Quickly makes miter or beveled cuts by easily adjusting the frame up to 45º
Offers power, speed control, and feed pressure required to ensure maximum accuracy and efficiency
Extends the life of blades via the blade cleaning brush and blade misting coolant system
Fast & accurate all-purpose saw, with the benefits of both a vertical and horizontal saw
Feed system: Adjustable air over hydraulic cylinder for feed control from 0 60 175 lbs
Blade travel: 14″ into work
Cutting capacity at 90º: Round: 14″
Rectangle: 14″ x 20″
Cutting capacity at 45º: Round: 13″
Rectangle: 13″ x 15″
Miter cut angle range: 0º-45º
Bevel cut angle range: 0º-45º
Capacity under guides: 20″ under guides @ 90º
Throat: Square blade: 14″
45º blade: 13″
Blade size (ships with saw): 1″ width x 12′ 11″ length 0.035 thick (bi-metal)
Blade size (accepted widths): 1/4″, 3/8″, 1/2″ , 5/8″, 3/4″ and 1″
Blade speeds: 70-400 sfpm (digital speed control)
Table: Precision ground cast iron table: 32 1/4″ x 26 1/4″
Table height: 37″ from floor (no casters)
Motor: 2 HP 220/440V three-phase (TEFC)
Saw dimensions: 37″ width x 66″ length x 80″ height
Shipping dimensions: 38″ width x 77″ length x 86″ height
Shipping weight: 1,400 lbs F.O.B. Cleveland, Ohio
