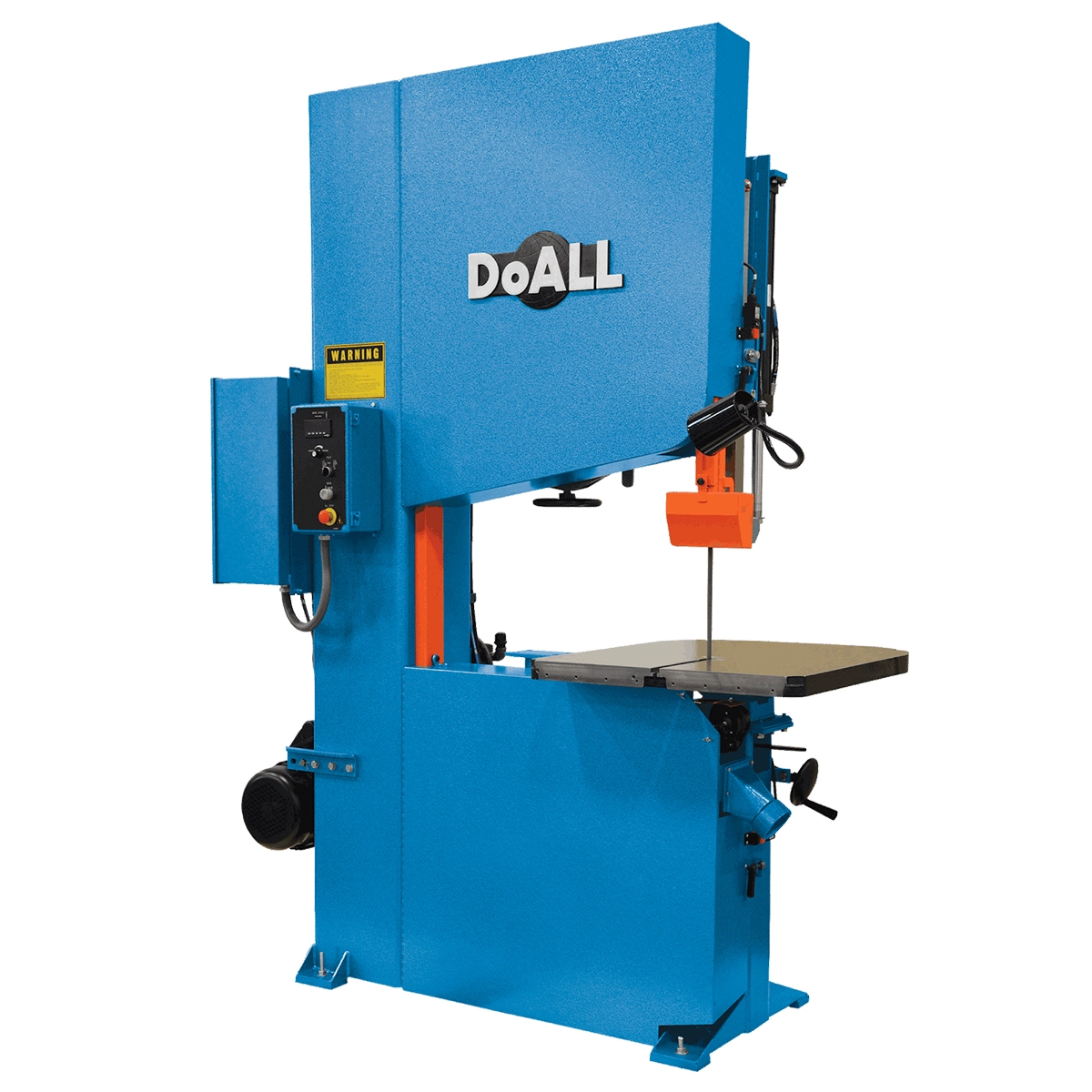

35″ New DoAll Vertical Zephyr Bandsaw Series ZV-3620

35″ New DoAll Vertical Zephyr Bandsaw Series ZV-3620 Specifications:

35″ New DoAll Vertical Zephyr Bandsaw Series ZV-3620 Features:
Column Mounted Controls: Column mounted controls give the operator easy access to band start and blade speed insuring their hands are away from the blade at band start.
Variable Frequency Band Drive: Band drive is comprised of an electric variable frequency drive controlled motor transferring power thru our time honored, belt driven high-speed spindle giving maximum torque to the tooth tips of the saw blade reducing band stall and tooth strippage.
Hydraulic Powered Post: Easy to operate hydraulic post allows the operator to keep the upper saw guide block as close to the top of the material being cut without getting their hands close to the blade during adjustment. Proper positioning minimizes the possibility of band deflection increasing bad life and safety.
Bandwheels: Cast aluminum, crowned band wheels, are supplied with replaceable rubber tires to minimize wheel wear and insure proper band tracking. The tires allow for minimum damage to the set of your saw band.
Manual Band Tension: Proper blade tension is manually set to a factory installed indicator which covers all widths of saw bands. This indicator will prevent the possibility of over/under tightening of the saw band for maximum cutting rates and extended band life.
Band Tracking System: Lever tracking mechanism allows for ease of blade alignment on band wheels reducing band fatigue by assuring proper support to the back of the saw band.
Saw Guide: Machine is equipped with one set of DoALL High-Speed, Type 3, saw guide blocks and rollers which will handle 1″ saw band. These will allow proper support to the side and back of the band minimizing deflection due to overfeed conditions in high band speed operations.
Safety Systems: Band door interlocks prevent the starting of the saw band while the doors are open. They will also stop the band drive if the doors open during operation which protects the operator from being exposed to a moving band. The upper wheel has a hydraulic actuated disk brake, which is applied when band breakage occurs preventing injury. The lower wheel is controlled by a dynamic brake, which is applied at band drive deactivation preventing operator injury.
Warranty: One year parts and service subject to the terms and conditions listed on terms and conditions page. Optional ten year warranty is available.

35″ New DoAll Vertical Zephyr Bandsaw Series ZV-3620 Standard Equipment:
Table tilt to 45 degrees negative – 5 degree positive
36″ Crowned aluminum band wheels with replaceable rubber tires
Upper wheel adjustment 3″
Operator controls mounted on column
One set of high speed, type 3 guide blocks with 1″ rollers
Work light
Variable frequency band drive
Tapered high-speed roller bearing spindles
Manual band tension with indicator
Hydraulic upper saw guide post
Dust spout for exhaust connection
Spark guard
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Trunnion wrench
One (1) complimentary DoALL bi-metal saw band
35″ New DoAll Vertical Zephyr Bandsaw Series ZV-3620 Accessories:

Maximum width: 35.25″
Max height under guide: 20″
Max height at column: 15″
Table tilt positive: 5°
Table tilt negative: 45°
Band width capacities: 0.25″ to 1″
Blade length: 234″
Motor Hp: 15 Hp
Band speed (must specify range at order placement): Low 1,000-4,000 fpm
Medium 4,000-8,000 fpm
High 10,000-15,000 fpm
Flood: No
Mist lubricator: Opt
W x L x H: 82″ x 37″ x 104″
Material pass height: 41″
Machine weight: 4,500 lbs
Voltage requirement (Wye configuration) (must specify at order placement): 208V, 230V or 460V-60Hz-3ph
Total amp draw (FLA): 208V 64.1 amps
230V 47 amps
460V 28.5 amps
