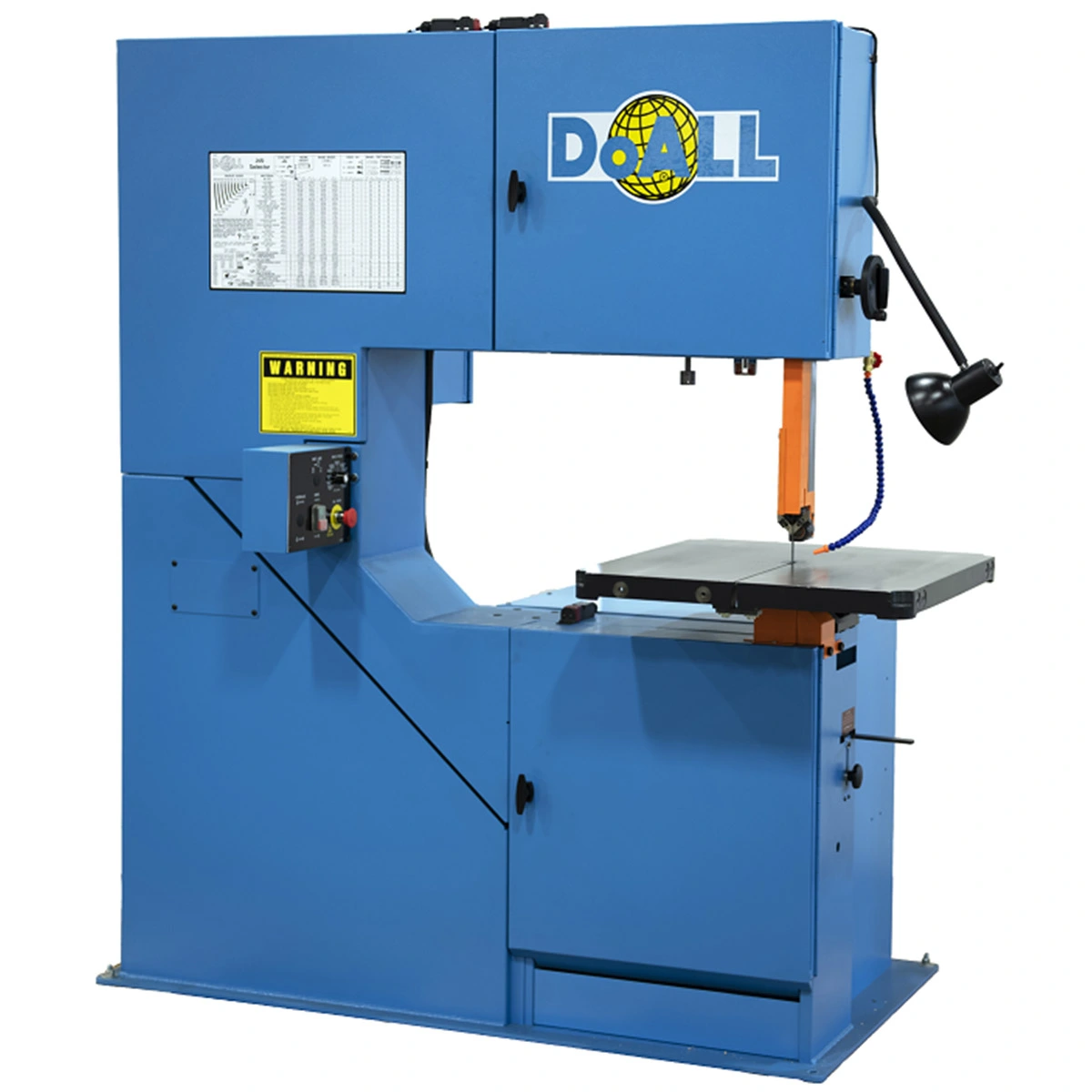

The 36″ DoALL 3613-V5 high speed, vertical contour band saw features a variable frequency 5 hp (3.75 kW) AC inverter drive controls that start the motion of the band wheels slowly to reduce mechanical shock and increase drive train life, plus a dynamic braking function that rapidly stops motion when power is shut-off. The 36″ DoAll 3613-V5 medium production, upright metal cutting band saw is widely used in locations that cut a large variety of materials.
36″ New DoAll Vertical Contour Band Saw Model 3613-V5 Specifications:
36″ New DoAll Vertical Contour Band Saw Model 3613-V5 Features:

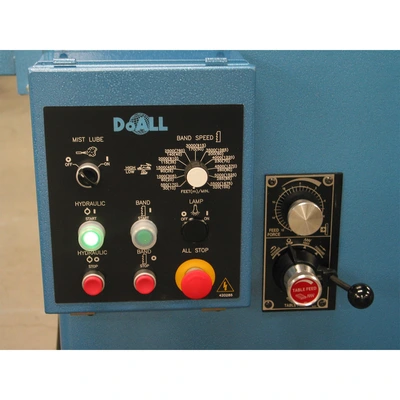

Column Mounted Controls: Column mounted controls give the operator easy access to band start and blade speed insuring their hands are away from the blade at band start.
Variable Frequency Band Drive: Band drive is comprised of an electric variable frequency drive controlled motor transferring power thru a high speed spindle assembly directly to the lower wheel providing maximum torque to the tooth tips of the sawblade reducing band stall and tooth strippage.
Post Elevating Handwheel: Easy to operate post elevating hand wheel allows the operator to keep the upper saw guide block as close to the top of the material being cut without getting their hands close to the blade during adjustment. Proper positioning minimizes the possibility of band deflection increasing band life and safety.

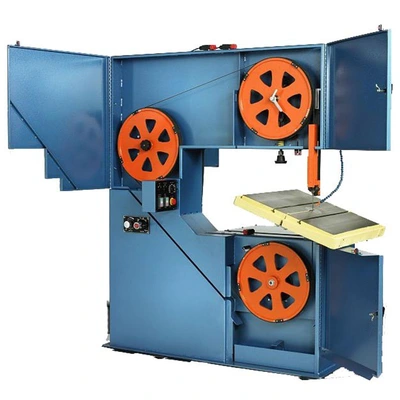

Bandwheels: Cast aluminum, crowned bandwheels, are supplied with rubber tires to minimize wheel wear and insure proper band tracking. The tires allow for minimum damage to the set of your saw band.
Manual Band Tension: Proper blade tension is manually set to a factory installed indicator which covers all widths of saw bands. This indicator will prevent the possibility of over/under tightening of the saw band for maximum cutting rates and extended band life.
High Band Speeds: The machines 5hp band motor and high speed spindle allow for maximum cutting rates at higher speeds while sawing non ferrous materials such as aluminum, plastics, wood, and rubber.
Wheel Brush: A strategically mounted replaceable nylon wheel brush cleans the surface of the lower wheel minimizing damage to the lower wheel tire by reducing any chip buildup which may cause improper blade tracking.
Saw Guide: Machine is equipped with one set of DoALL invented chevron type saw guide block and inserts which will handle 1/8-1/2″ sawbands. These will allow proper support to the side and back of the band minimizing deflection due to overfeed conditions.
Safety Systems: Band door interlocks prevent the starting of the saw band while the doors are open. They will also stop the band drive if the doors open during operation which protects the operator from being exposed to a moving band.
Warranty: One year parts only subject to terms and conditions. Optional ten year warranty is available.
36″ New DoAll Vertical Contour Band Saw Model 3613-V5 Standard Equipment:
Table tilt to 45 degrees negative-10 degrees positive
20″ aluminum band wheels with crowned rubber tires
Upper wheel adjustment 3″
Operator controls mounted on column
One set of high speed, insert type guide blocks for bands 1/8″ to 1/2″
One set of steel guide inserts for bands 1/4″, 3/8″, 1/2″
Band wheel brush
Variable frequency band drive
Work light
Manual band tension with indicator
Post elevating hand wheel
Chip box
Chip blower (plant air required)
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Recommended job selector
One (1) complimentary DoAll Bi Metal saw blade
Insert setting gages with wrench and trunnion wrench
36″ New DoAll Vertical Contour Band Saw Model 3613-V5 Optional Accessories:
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
Capacity: Inches
Maximum width: 36″
Maximum height: 13″
Table tilt positive: 10°
Table tilt negative: 45°
Band width capacity: 1/8″ – 1″
Band length: 199″
Motor: 5 Hp
Band Speed: High range: 550-5,500 fpm
Band Tension: Manual
Flood: No
Mist lubricator: Opt
Floor Space Dimensions W x L x H: 39″ x 81″ x 82″
Material pass height: 39″
Machine weight: 1,550 lbs
Voltage requirement (Wye configuration-must specify at order placement): 208V, 230V, or 460V-60Hz-3ph
Total Amp Draw (FLA): 10.7 (208)
10.7 (230)
5.3 (460)
