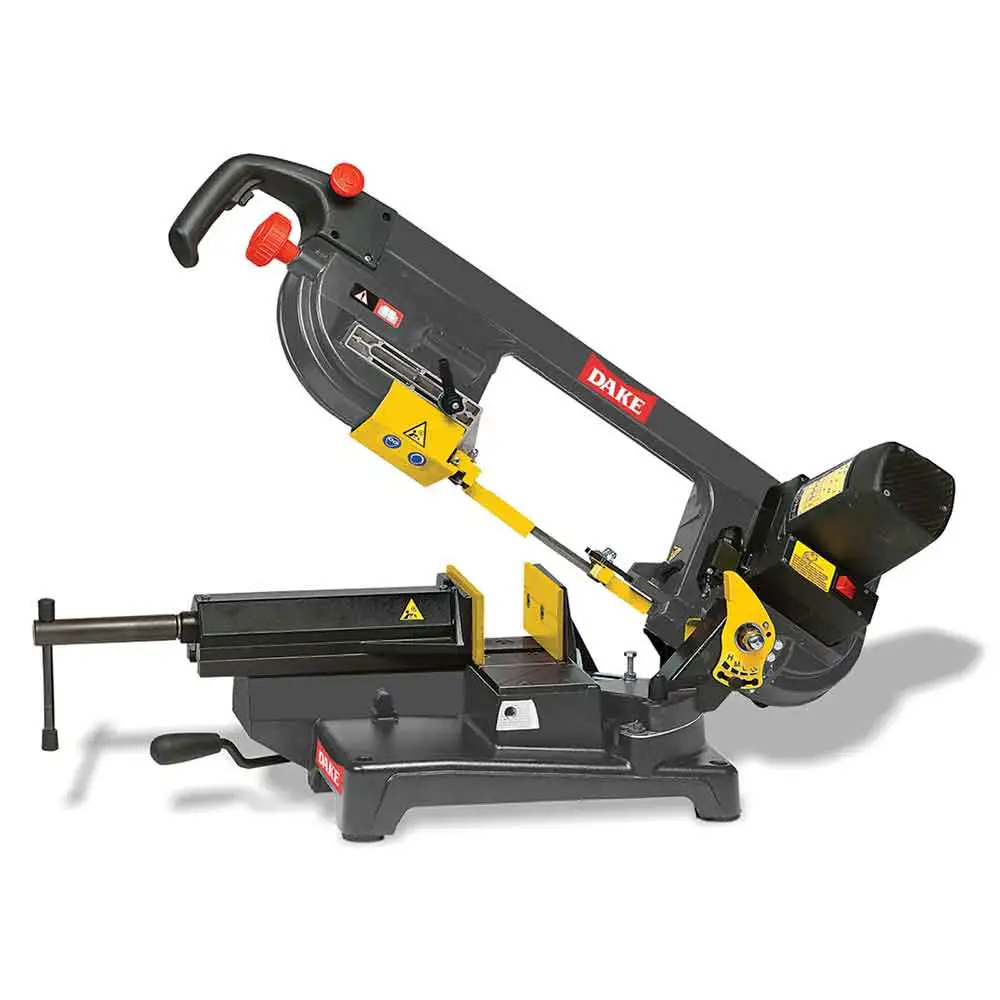

This semi-automatic benchtop horizontal bandsaw is small in size but not in power. Featuring new reverse cutting technology for cooler cutting and faster, cleaner cuts. Designed for on-the-go applications this saw will cut all of the metal rounds, flats, and tubes you need right in the field. Offering 110V power, 2.5 HP motor with variable cutting speeds, 2 cutting modes, and mitering capabilities of 0°-45°.
5″ x 6″ New Dake Benchtop Horizontal Mitering Band Saw Model SE 5X6 RCT Specifications:
5″ x 6″ New Dake Benchtop Horizontal Mitering Band Saw Model SE 5X6 RCT Features:
Gravity down feed for hands free cutting
Electronic speed regulator with “Constant Speed” feature prevents “bog” downs
End of cut shut off switch with trigger control, e-stop and blade cover interlock
Hefty 2.5 HP motor with direct drive
RCT “reverse cutting technology”. Blade runs in reverse direction for cooler cutting, faster and cleaner cuts.
Bi-Metal blade
Blade tension indicator with clutch for proper blade tensioning every time
Push and click hands free cutting pressure setting
Variable speeds with 114-262 feet per minute
Case bed and cutting bow and outboard stop
Miter capabilities 0º-45º
Quick release vise for fast set up and change over
2 cutting modes. Manual and gravity down feed.
Cutting speeds and feed guide
5″ x 6″ New Dake Benchtop Horizontal Mitering Band Saw Model SE 5X6 RCT Standard Equipment:
Electronic blade speed regulator
End of cut shut off switch
Hefty 2.5 HP motor
Bi-Metal blade
Blade tension indicator
Cast bed and cutting bow
Quick release vise
5″ x 6″ New Dake Benchtop Horizontal Mitering Band Saw Model SE 5X6 RCT Optional Equipment:
Blade reverse welded 6 TPI
Blade reverse welded 14 TPI
Blade reverse welded 10-14 vari tooth
Blade reverse welded 6-10 vari tooth
FST work table for the SE-5X6 RCT
Part Number: 983107-1
Capacity: 5″ x 6″ rectangle
Horsepower: 2.5
Voltage: 110V
Maximum Blade Speed: 262 fpm
Blade Width: 1/2″
Blade Length: 68-1/4″
Blade Speed: 114 – 262 fpm
Round 0º Capacity: 6″
Round 45º Capacity: 4″
Round 60º Capacity: n/a
Square 0º Capacity: 6″
Square 45º Capacity: 4″
Square 60º Capacity: n/a
Rectangle 0º Capacity: 6 x 5″
Rectangle 45º Capacity: 4-3/4 x 4″
Rectangle 60º Capacity: n/a
Base Width: 18″
Worktable Height: n/a
Height: 20″
Floor Space: 18 x 39″
Floor Space Left to Right: n/a
Floor Space Front to Back: n/a
Floor to Bed: n/a
