Mitering bandsaw with dual operating modes and hydraulic controlled down feed. 2.5HP, 120V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting.

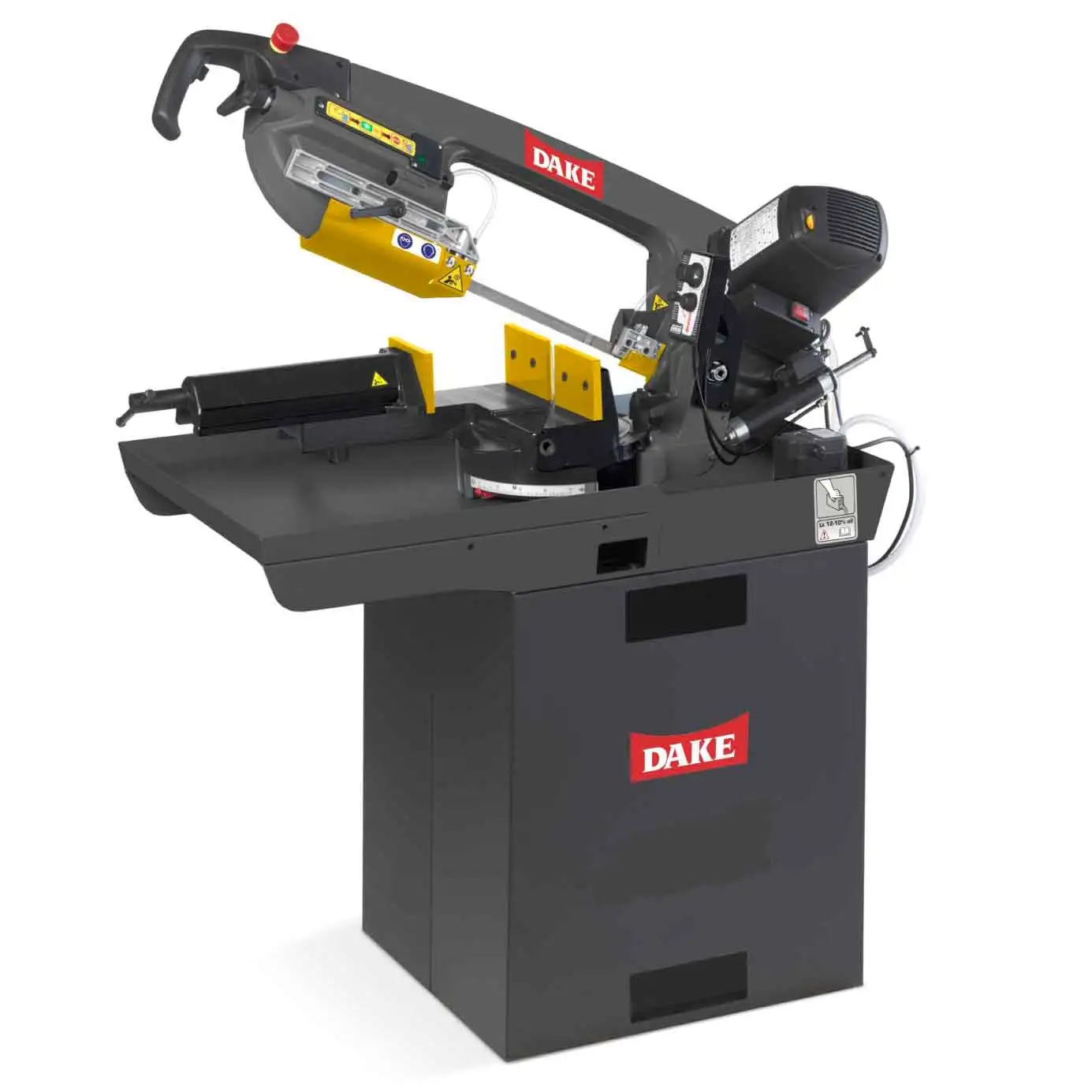

6.5″ New Dake Stationary Mitering Band Saw Model SE 6.5 M Specifications:
Features:
Hydraulic controlled down feed with manual return.
Automatic shut off at the end of the cut.
Dual operating modes, manual cutting or head feed cutting.
Powerful, manual clamping vise, with quick release lever for rapid vise opening and closing action for fast material size change over. The vise clamps material firmly.
Ergonomic designed for operator’s comfort and control.
Motor gearbox combination bolted to the bow for less vibration.
Variable speed with rotary adjusting wheel and “Constant speed control”. Maintains constant speed to prevent bog downs when cutting.
CE certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch.
Miters up to 60º right. Mitering pre-sets with slide stops makes set up fast and has precise with miter scale for all angles in between. The head turns, the material doesn’t.
Blade tensioning is done via “Go No Go” tensioning system with LED, taking the guesswork out of tensioning. Saw will not run if blade tension is not correct.
Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable.
Electric coolant pump and self-contained coolant system.
120 volt means you can use it most anywhere.
Steel fabricated base, and stock stop gauge, one bi-metal blade.
Standard Equipment:
Steel base
Blade
Quick release vice
120V motor
Part Number: 983110-1
Capacity: 6.5″ round
Horsepower: 2.5
Voltage: 120V
Maximum Blade Speed: Variable
Blade Width: 3/4″
Blade Length: 84-1/4″
Blade Speed: 114 – 262 fpm
Solid Round 90º Capacity: 6.5″
Solid Round 45º Right Capacity: 4-1/4″
Solid Round 60º Right Capacity: 3″
Solid Square 90º Capacity: 6-3/4″
Solid Square 45º Right Capacity: 4-1/2″
Solid Square 60º Right Capacity: 3″
Solid Rectangle 90º Capacity: 7-3/4″ x 3″
Solid Rectangle 45º Right Capacity: 6″ x 4-1/4″
Solid Rectangle 60º Right Capacity: 4″ x 2-3/4″
Worktable Height: 37″
Height: 65″
Floor Space: 35″ x 48″
Floor Space Left to Right: 35″ x 48″
Floor Space Front to Back: 35″ x 48″
