NEW HYD-MECH H-230A

9” x 9” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-230A Specifications:
9” x 9” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-230A Standard Features:
Heavy-duty, cast iron saw head
Split front vise

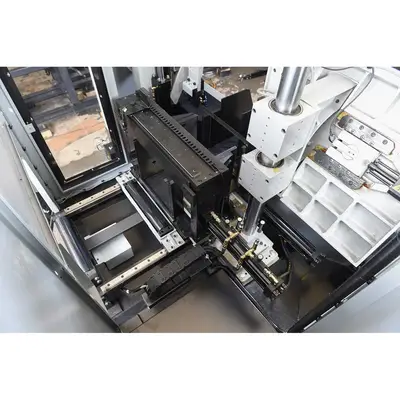

Cast iron shuttle features automatic multi-indexing up to 19” in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor.
On-demand hydraulics
Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.
Variable vise pressure
3 HP VFD. True direct blade drive – no belts/pulleys
Full capacity, full stroking hydraulic vises
Hydraulic positive down feed
Blade chamber separates material from cut part

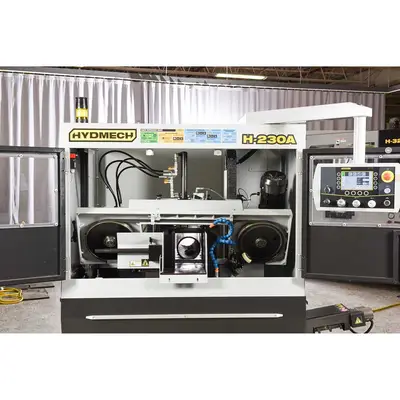

Cast iron band wheels

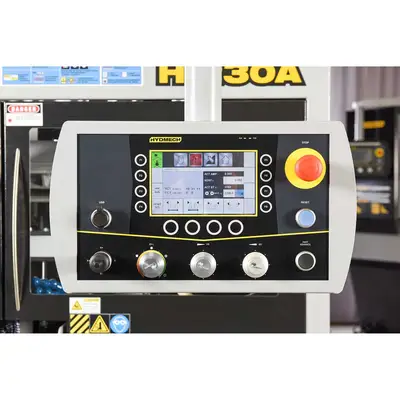

Automatic PLC, touch screen control programmable up to 20 jobs with 5 in queue.
Replaceable blade brush
Robust steel base
Automatic chip removal auger
Blade breakage switch

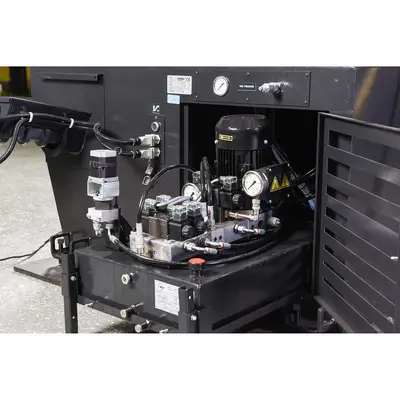

Easy access electrical panel and hydraulics

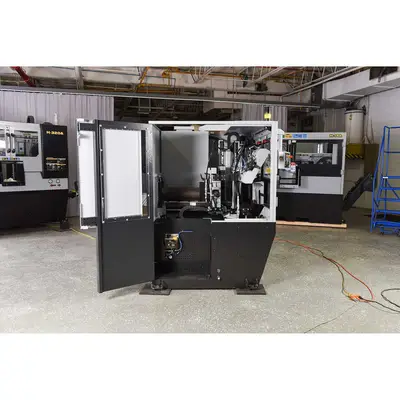

Designed for safety with saw-in-a-box style
Out of stock switch
Mechanical band tensioning with digital readout

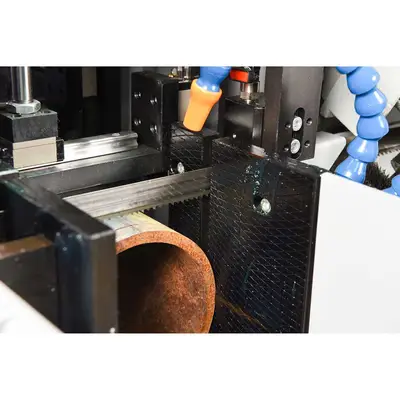

Replaceable carbide guide inserts
Safety door interlocks
Flood coolant with wash down hose
Vertical rollers
Laser light
Work light

9” x 9” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-230A Optional Features:
Full capacity hydraulic overhead bundling
Mist lubrication
Idler conveyors
Powered conveyors
9” x 9” New Hyd-Mech Automatic Dual Post Horizontal Band Saw Model H-230A Optional Accessories:

90° rectangle (h x w): 9″ x 9″
90° round: 9″
90° square: 9″
Blade Drive: 3 HP VFD
Blade Speed: 50-350 SFM
Blade Size: 1″ x 9′ 8″
Automatic Multi-Indexing: 0-19″
Table Height: 35″
Voltages Available: 240, 480 v (208, 575 optional power transformer required)
Weight: 2,200 lbs
Dimensions (w x l x h): 61″ x 63″ x 67″
Coolant Tank Capacity: 30 Gallons
Remnant Length: 2.5″ (6″ with bundling)
