Standard Duty horizontal bandsaw offering accurate cutting, rugged gear box, hydraulic control, chip brush blade cleaner, and wet or dry cutting with simple operation. 1″ blade, and 9 rounds, 9 x 12 flats.

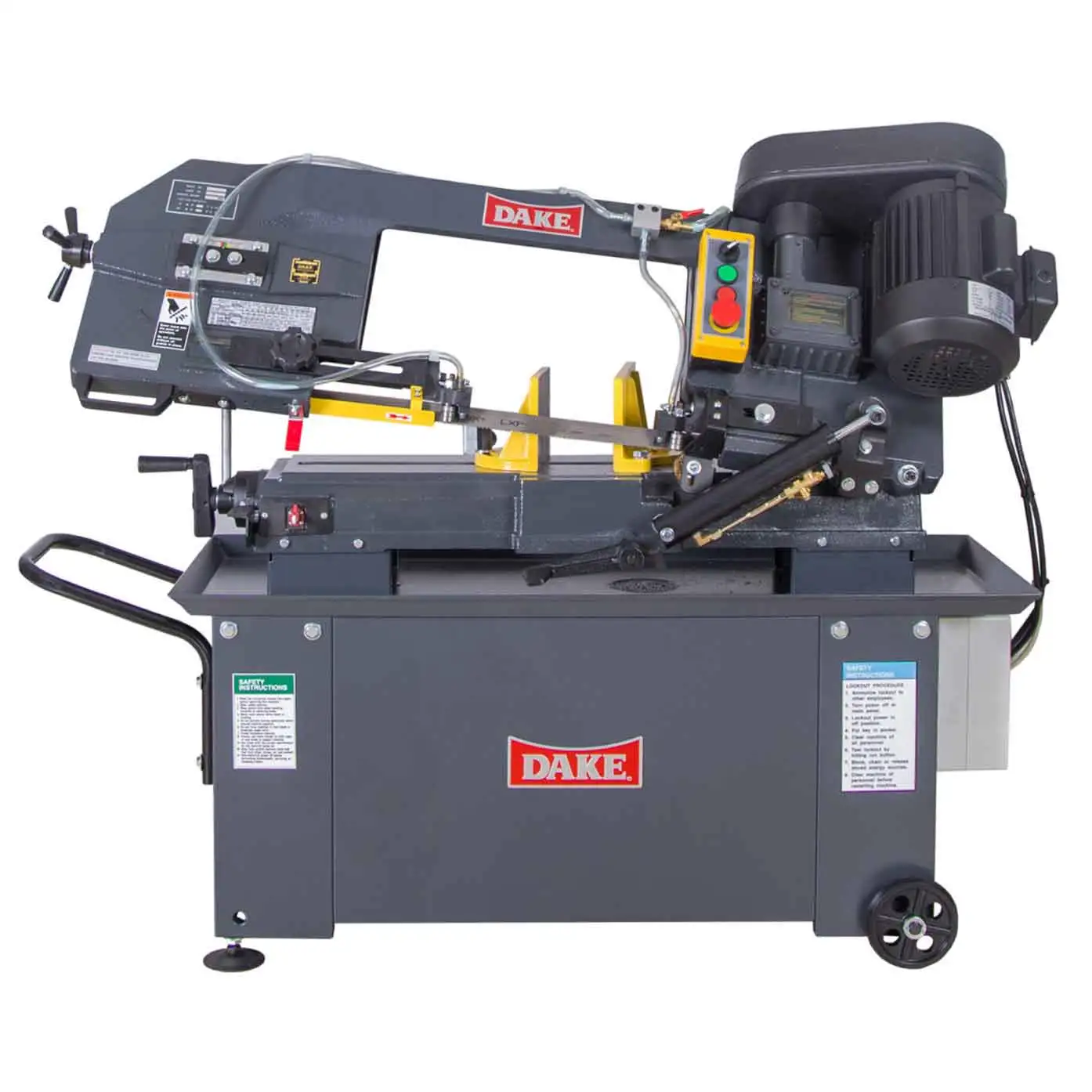

9″ x 12″ New Dake Standard Duty Horizontal Band Saw Model SE912 Specifications:
9″ x 12″ New Dake Standard Duty Horizontal Band Saw Model SE912 Features:
Accurate cutting with vibration free cast/machined table bed, heavy steel base, horizontally mounted guide arms, and adjustable blade guides and rollers.
CE approved low voltage safety reset, thermo overload protection, auto shut off, blade guards, safety interlocks.
Quick release vise and hand wheel action for fast change of material sizes.
Wet/dry cutting
Hydraulic control for head feed at variable rates and to lock head at any height.
Convenient chip brush blade cleaner, storage in base and wheels that roll easily.
Standard Equipment:
Recirculating coolant system
Steel base with wheels
Low voltage controls
Part Number: 983101
Capacity: 9 rounds, 9 x 12 flats
Horsepower: 1
Voltage: 110V, single phase
Maximum Blade Speed: 328 fpm
Blade Width: 1″
Blade Length: 104.5″
Blade Speeds: 98/164/246/328 fpm
Solid Round 90º Capacity: 9″
Solid Round 45º Right Capacity: 3-1/2″
Solid Round 60º Right Capacity: n/a
Solid Square 90º Capacity: n/a
Solid Square 45º Right Capacity: n/a
Solid Square 60º Right Capacity: n/a
Solid Rectangle 90º Capacity: 9″ x 12″
Solid Rectangle 45º Right Capacity: 3-1/2″ x 7-1/2″
Solid Rectangle 60º Right Capacity: n/a
Bed Work (area): 24-1/2″ x 9″
Weight: 500 lbs
Height: 59″
Floor Space: 56 x 21″
Floor Space Left to Right: 56″
Floor Space Front to Back: 21″
Floor to Bed: 21-3/4″
