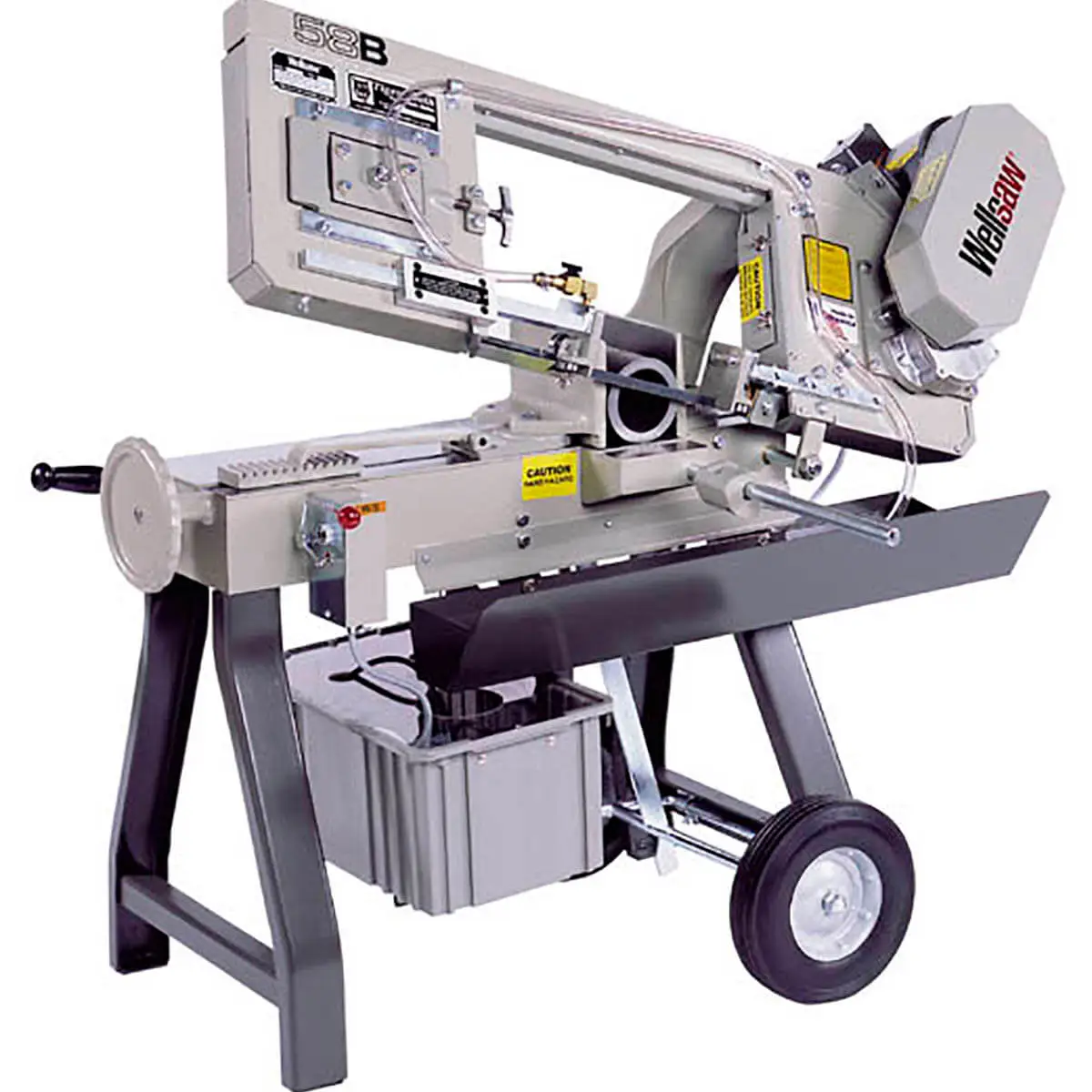

The Wellsaw Model 58B is available in Wet (58BW-flood coolant) or Dry (58BD) sawing configurations. This rugged model provides large capacity yet is highly portable. Our most versatile machine, it quickly converts from horizontal to vertical operations.
9-1/2″ x 11″ New Wellsaw Horizontal Band Saw Model 58BD Specifications:
Features:
Rigid Welded Steel Frame & Bed
Convertible (Horizontal/Vertical)
Mobile-Includes Retractable Wheels and Pull Handle
Hydraulic Feed Control with Adjustable Counterbalance Spring
Work Table for Vertical operation
Adjustable Stock Stop
Ball Bearing Blade Guides
Baldor Blade Motor
Three Band Speeds
Blade Brush
Safety Switch and Overload Protection
Quick Acting Vise
Precision Ground Bed
Replaceable Pivot Bar and Bushings
Auto Shut off at end of Cut
OSHA Blade Guards
Tiger Tooth Blade
Accessories:
Maximum Cutting Capacity Round: 9-1/2″
Maximum Cutting Capacity Flat: 11″
Maximum Cutting Capacity Rectangular (HxW): 9-1/2″ x 11″
Maximum Cutting Capacity 45˚ angle: 5-1/2″ x 5-1/2″
Vertical Capacity Throat Depth: 6-1/4″
Vertical Capacity Throat Height: 9-1/2″
Vertical Capacity Work Table: 8″ x 10″
Blade Speed (4): 76-141-268 SFPM
Blade Guides: Six Sealed Ball Bearings on Cast Iron Supports
Blade Size (LxWxT): 1/2″ x .025 x 7.9″ (93″)
Blade Motor: 1/2 hp Single Phase ODP
Vise Control: Manual Screw/Quick Action
Swivel Vise: to 45˚
Band Wheels: 11″ Cast Iron
Bed Height: 26″
Shipping Weight: 350 lbs
Floor Space (LxWxH): 26″ W x 54″ L
