Heavy duty, dual mitering saw that comes with one standard Bi-metal blade. Hydraulic controlled downfeed with automatic shut off at the end of the cut. 2.75HP, 220V motor with up to 60°right mitering capabilities. Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut.

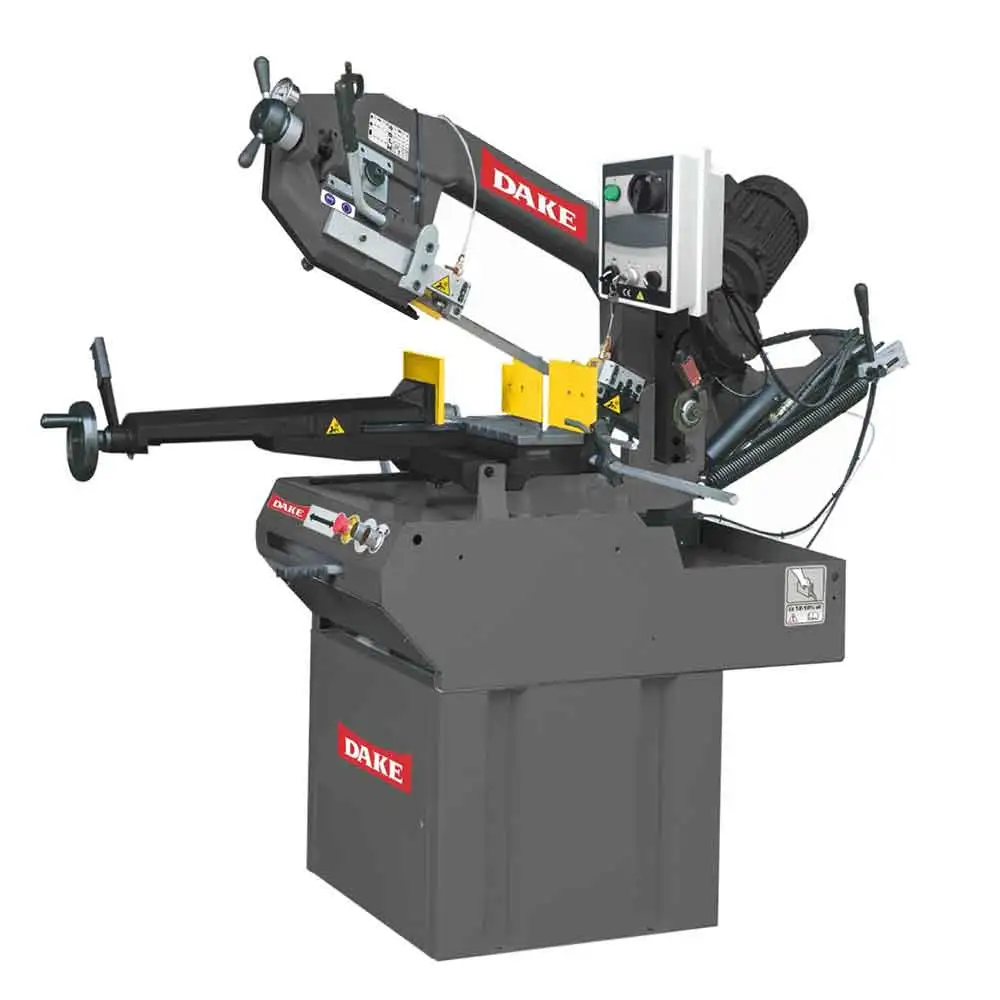

10″ New Dake Stationary Mitering Band Saw Model SE 10 DM Specifications:
10″ New Dake Stationary Mitering Band Saw Model SE 10 DM Features:
Hydraulic controlled down feed with adjustable manual return.
Automatic shut off at the end of the cut.
Dual operating modes with head descent control lock switch. Pre-set the down feed and shut switch so down feed does not need resetting after each cut.
Powerful, flame tempered, manual clamping vise. Hand wheel adjusted with quick release lever for rapid vise opening and closing action. The vise clamps material firmly.
Traversing vise can be used left or right of the blade.
Ergonomic designed for operator’s comfort and control.
Gear box is direct bolted to the bow for less vibration, and positive drive gear box is direct driven via steel and bronze gears, no belts and pulleys to contend with.
CE certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switch and blade cover interlock.
Blade tensioning is done via a hand wheel and color coded gauge tensioning system, taking the guesswork out of tensioning.
Miters up to 60º right / 45º left. Mitering pre-sets with flip up and pin stops makes set up fast and has precise with miter scale for all angles in between. The head turns, the material doesn’t.
Horizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceable.
Electric coolant pump and self-contained coolant system.
Steel fabricated base, and stock stop gauge.
Standard Equipment:
Steel base
1 standard bi-metal blade
Traversing, manual vise
Coolant
Stock stop gauge
Part Number: 983112-2
Capacity: 10″ round
Horsepower: 2.75
Voltage: 220V, 3 phase
Maximum Blade Speed: 230 fpm
Blade Width: 1″
Blade Length: 108″
Blade Speed: 115 – 230 fpm
Solid Round 90º Capacity: 10″
Solid Round 45º Right Capacity: 8″
Solid Round 60º Right Capacity: 5″
Solid Square 90º Capacity: 7-1/2″
Solid Square 45º Right Capacity: 7-1/2″ / 6-3/4″
Solid Square 60º Right Capacity: 5″
Solid Rectangle 90º Capacity: 10-1/2″ x 7-3/4″
Solid Rectangle 45º Right Capacity: 8-1/4″ x 3-1/8″
Solid Rectangle 60º Right Capacity: 4-3/4″ x 5-1/4″
Worktable Height: 37″
Height: 74″
Floor Space: 28″ x 66″
Floor Space Left to Right: 28″ x 66″
Floor Space Front to Back: 28″ x 66″
