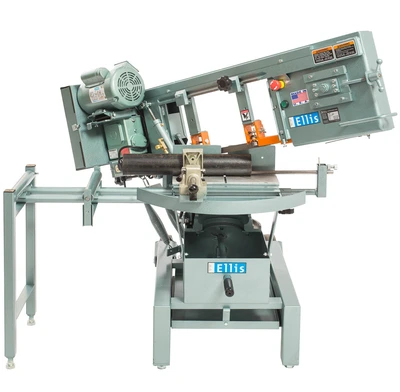

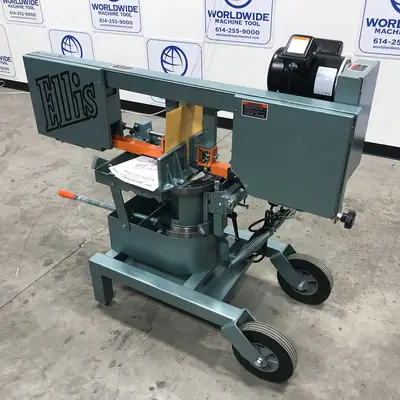

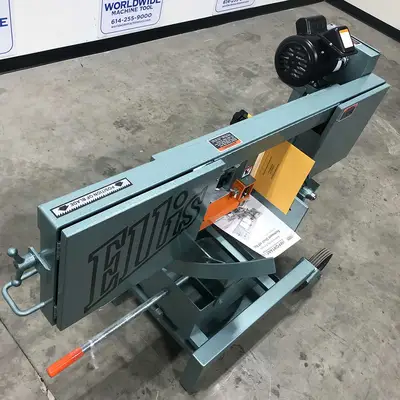

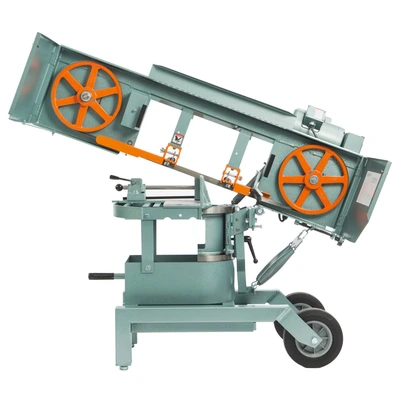

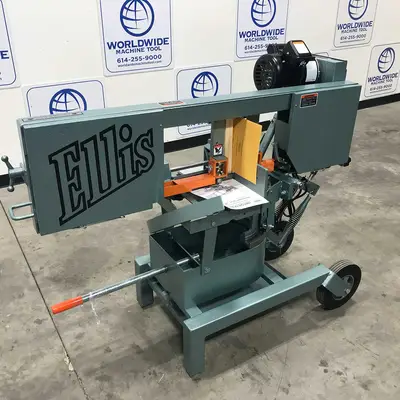

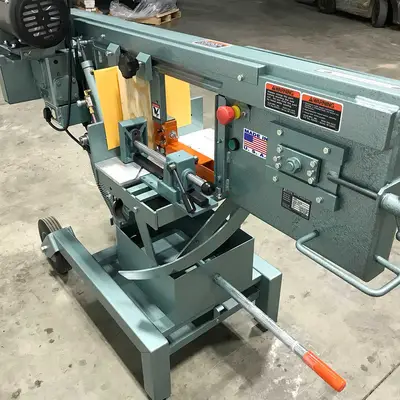

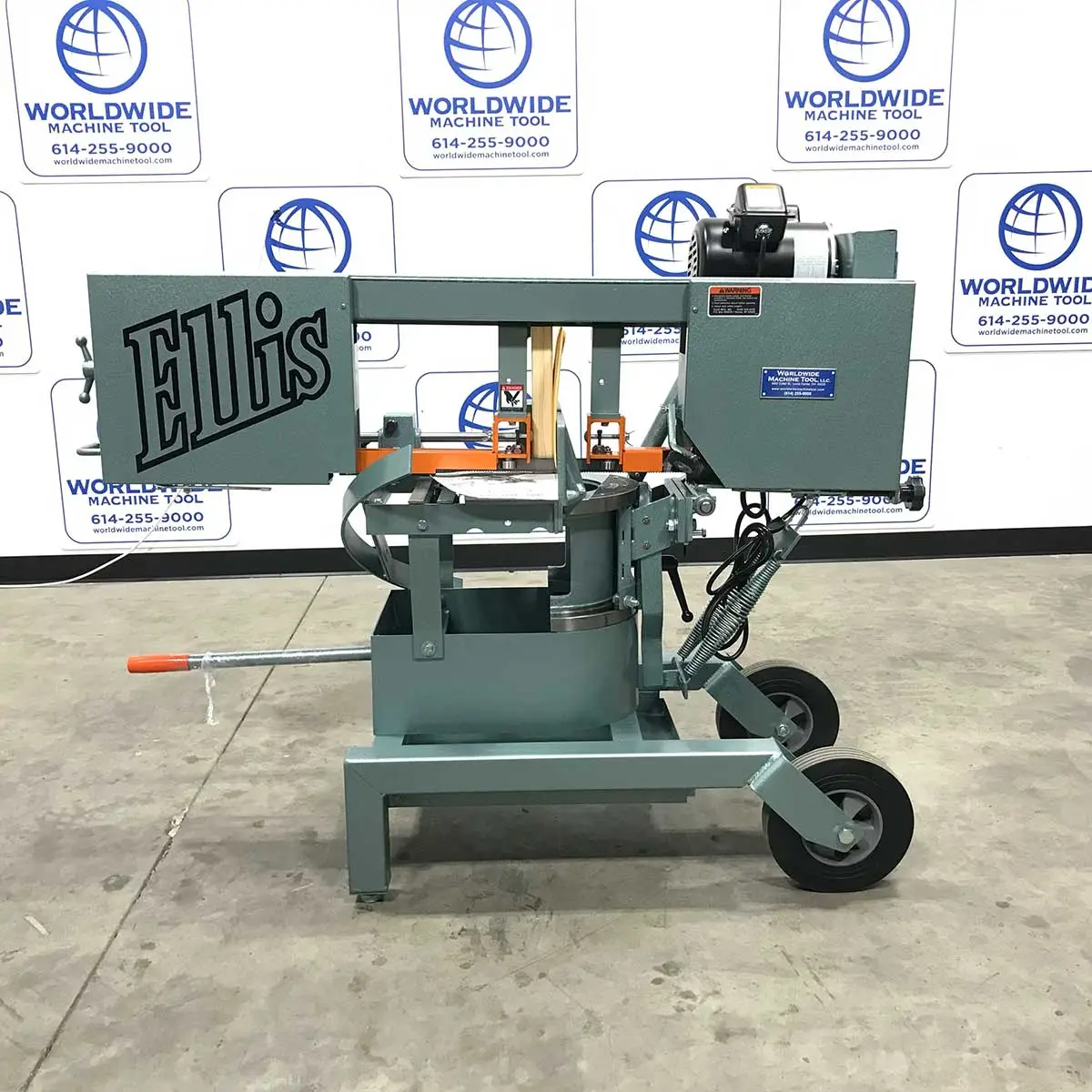

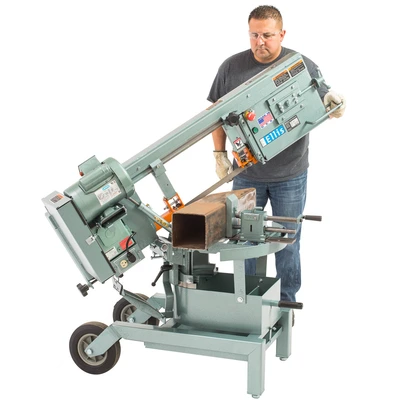

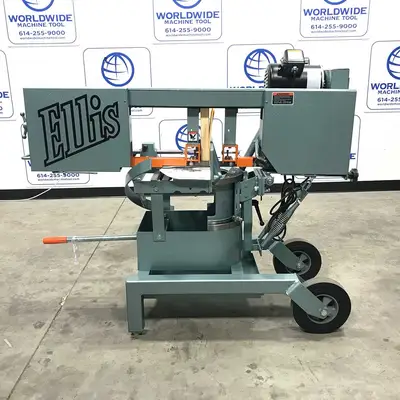

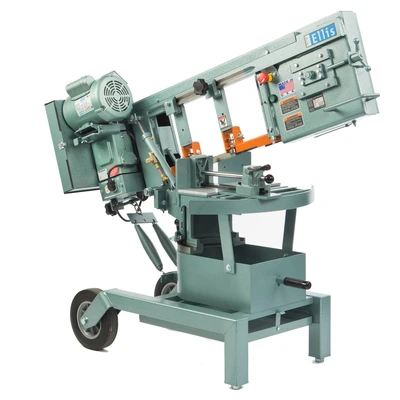

Ellis mitering horizontal band saws are engineered and manufactured with high quality in the United States. New Ellis horizontal band saws miter at 45° left or right. The 2000 model miters to 60° left or right. In addition every new Ellis saw are dry cutting, but can be bought with an optional air system.
Head Pressure Controlled By Hydraulic Cylinder
10″ Wheels For Portability
Sealed Oil Bath Worm Gear
Removable Chip Tray
Heavy Steel – Welded Base & Frame

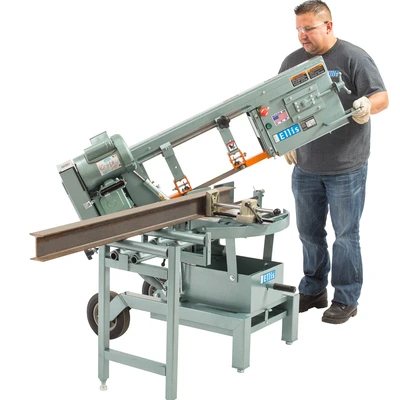

Head of band saw moves left or right for angle cutting
Built-in protractor for fast and accurate selection of angles

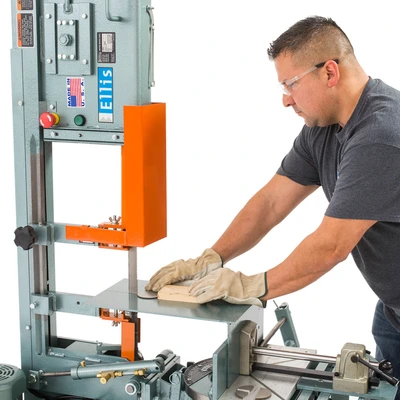

One-step conversion from horizontal to vertical band saw
Stock remains in one position for all cuts
Portable-this band saw moves easily to the job site
Cutting Capacity: 10” Round at 90°
8” Pipe at 90°
11” Flat at 90°
6-7/8” Round at 45°
6” Pipe at 45°
7-1/4” Flat at 45°
10” H x 8” W at 90°
8” H x 6” W at 45°
Blade Size: 1″ x 10′

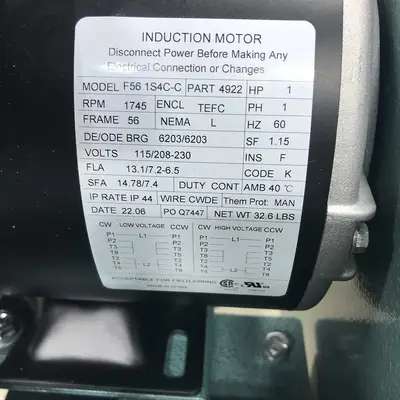

Main Motor: 1 H.P. 110/220 Volt 1 Phs.
Blade Speeds: 55-115-230 FPM
Vise: Quick Adjusting Camlock
Shut Off: Automatic
Machine Weight: 525 Lbs.
