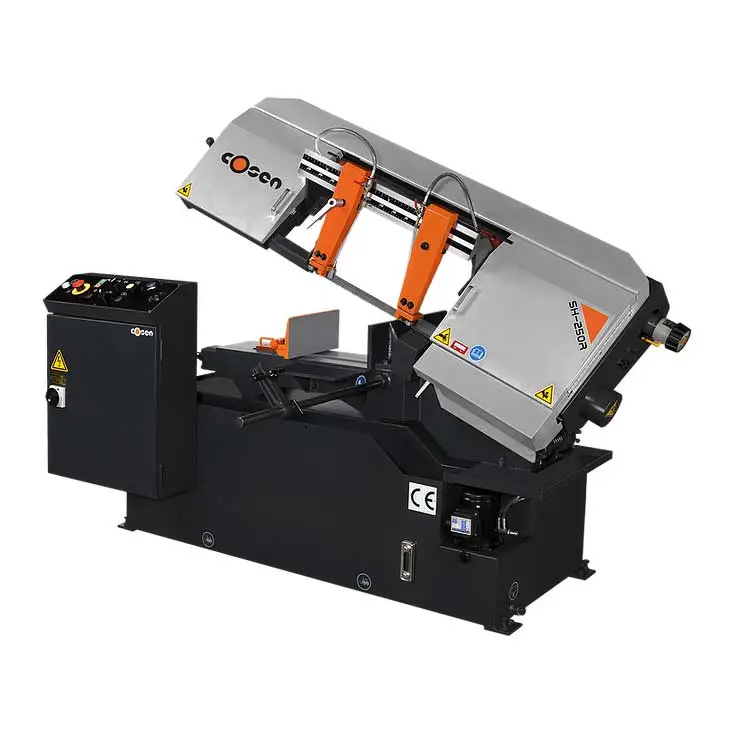

Cosen provides a full range of semi-automatic band saws in a wide variety of cutting capacities. These saws exceed many of the standard requirements that operators look for in a band saw machine. With its rigid construction and superior features, Cosen’s SH-250R fits into that category. This heavy duty band saw offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment.
10″ x 11.8″ New Cosen Horizontal Band Saw Specifications:
10″ x 11.8″ New Cosen Horizontal Band Saw Model SH-250R Features:
Hydraulic cylinder plus precision ground hinge support
Gearbox designed to accept high lateral pressure (no thermal distortion)
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Variable blade speeds
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Motor driven, synchronized wire blade brush
Adjustable down feed control
Saw head automatically raises after each cut
Maximum Cutting Capacity Round: 10″
Maximum Cutting Capacity Square: 10″
Maximum Cutting Capacity Rectangular (HxW): 10″ x 11.8″
Blade Speed 60HZ: 75,121,190,305 FPM
Blade Speed 50HZ: 62,101,157,256 FPM
Blade Size (LxWxT): 11′ x 1″ x.035″
Blade Motor: 2 H.P.
Hydraulic Motor: 1/4 H.P.
Coolant Motor: 1/8 H.P
Workbed Height: 25.2″
Weight: 1276 lbs
Floor Space (LxWxH): 35.4″ x 73″ x 41″
SKU#: 21669
