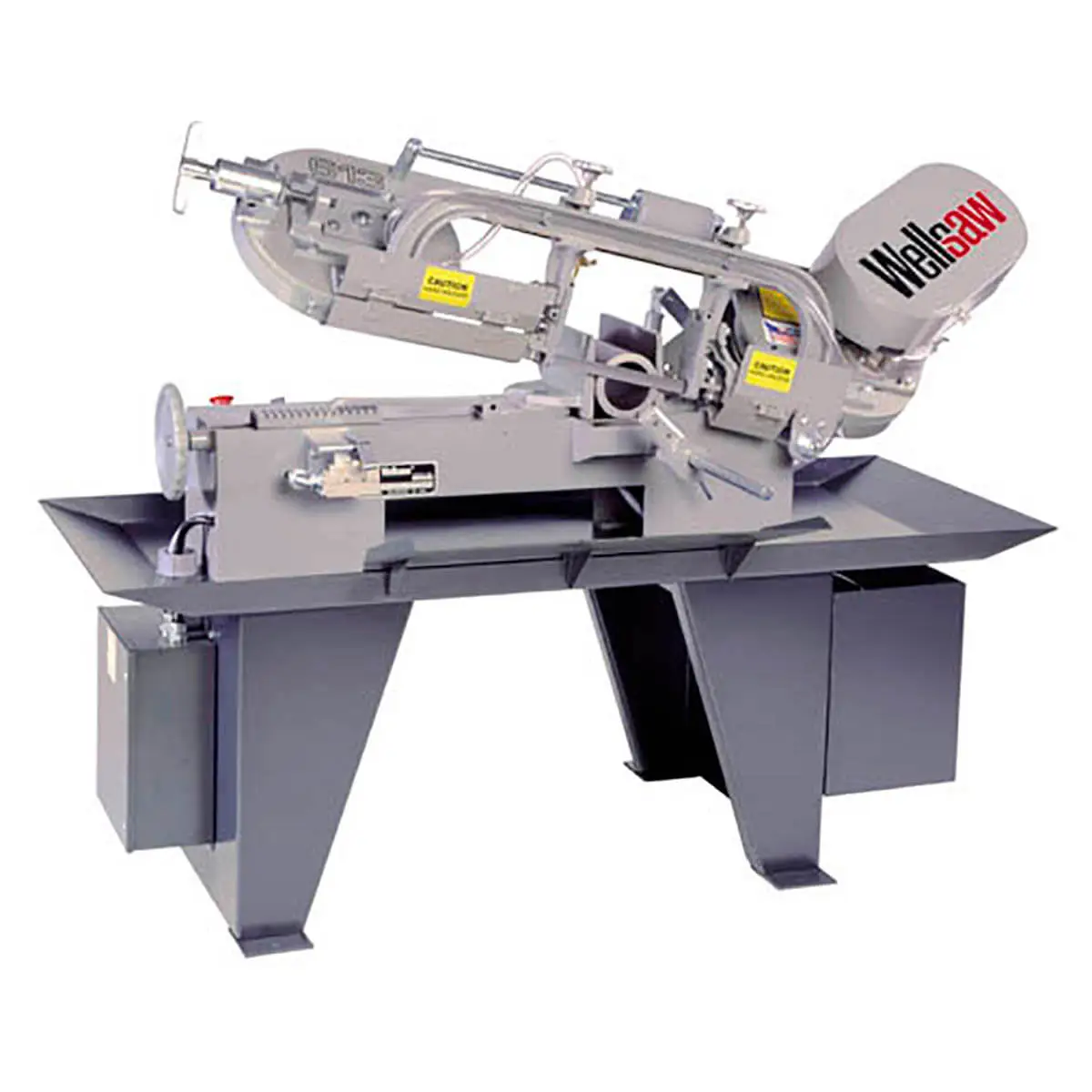

NEW WELLSAW 1016

NEW WELLSAW 1016

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Horizontal Band Saws
Manufacturer:
WELLSAW
Model:
1016
Stock #:
26118
Description

10″ x 16″ New Wellsaw Horizontal Band Saw Model 1016 Specifications:

10″ x 16″ New Wellsaw Horizontal Band Saw Model 1016 Features:
Spring-loaded carbide guides with rollers
Combination reduction gearbox and perimeter ring gear blade drive
2hp Baldor Motor
Four Blade Speeds
Rite-Tension Band Tensioning Device
Variable Hydraulic Downfeed Control
Flood type Wet Cutting System
Rotary Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Bed
Quick Acting Vise
Positive Frame Lock
Adjustable Stock Stop/back gauge
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth Bi-Metal Blade
Coolant for Initial Start-Up
10″ x 16″ New Wellsaw Horizontal Band Saw Model 1016 Accessories:

Specifications

Maximum Cutting Capacity Round: 10-1/2″
Maximum Cutting Capacity @45˚Angle: 6″ x 6-1/2″
Maximum Cutting Capacity Flat: 16.5″
Maximum Cutting Capacity Rectangular: 10″ H x 16″ W
Blade Guides: Carbide Guides with Rollers
Blade Size (LxWxT): 1″ x .035″ x 11’6″ (138″)
Blade Tension: Manual Rite-Tension
Blade Speeds: 50-100-175-275 SFPM
Vise Control: Quick Acting/Manual Screw
Motor Options: 2 HP-115-208-230/60/1
2 HP-208-230-460/60/3
Coolant System: Tank Capacity 8 Gallons, Submersible Pump 115V/.6 Amp/170 GPH
Feed Rate Control: Variable Hydraulic with Counterbalance spring
Band Wheels: 15″ Diameter Cast Iron
Swivel Vise: to 45 degrees
Bed Height: 29″
Floor Area: 40″ W x 84″ L
Shipping Weight: 900 lbs.
