1 ½ – 2 hp drive motors with magnetic starter and overload protection
Magnetic starter with overload protection

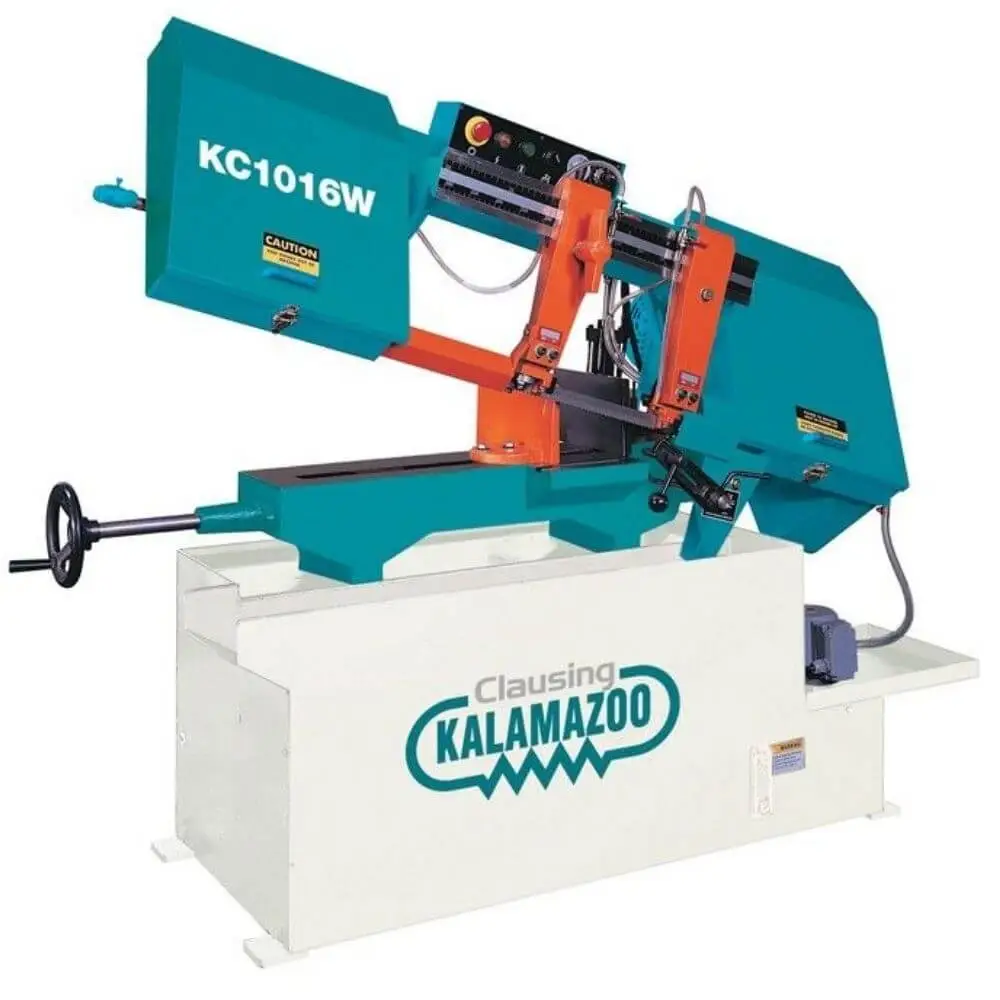

4-speed step pulley with worm gear speed reducer, worm shaft is hardened and ground (model KC1016W)
Infinitely variable speed drive (model KC1016VS)
Totally enclosed transmission
Heavy-duty hydraulic cylinder with precision ground hinge support
Pan shaped base with built-in coolant and hydraulic system
Cast iron bed
Cast iron quick acting 0º – 45º vise with manual leadscrew clamping system
Two additional bearing to support blade from the top
Recirculating coolant system with application through both guides
Blade brush
Valve controlled hydraulic cylinder controls feed and can be adjusted for different types and sizes of material
Adjustable stock stop
Simplified control switches mounted on saw head
Anti-slip hand wheel
Easy blade change with front access at waist level
1” wide blade
Tools
Operation and parts manual
Two (2) year limited warranty
Type: Horizontal wet cut
KC1016W1-motor, 4 speed drive: 1.5 Hp, 110v or 220v, 1 ph
KC1016W-motor, 4 speed drive: 2 Hp, 230v or 460v, 3 ph
KC1016VS1-motor, variable speed drive: 1.5 Hp, 110v or 220v, 1 ph
KC1016VS-motor, variable speed drive: 2 Hp, 230v or 460v, 3 ph
Band wheel diameter: 15″ flanged, cast iron
Blade (W x T x L): 1″ x 0.035″ x 11′
Bed height: 25″
Blade speeds-4 speed: 75, 121, 190, 305 fpm
Blade speeds-variable speed: 50-295 fpm
90º cutting capacity: Round 10″
Rectangular 9″ x 14.5″
45º cutting capacity: Round 9″
Rectangular 9″ x 9″
Length: 66″
Depth: 28″
Height (head up): 69″
Height (head down): 41″
Net weight: 720 lbs.
Shipping weight: 885 lbs.
Shipping dimensions (L x W x H): 68″ x 30″ x 45″
