Heavy duty, American made, horizontal bandsaw with a dual cast head frame for large capacity cutting. Also featuring a three point suspension, adjustable eccentric roller blade guides, centralized controls, four-speed drive, 45º swivel vise jaws, and heavy 16” blade wheels.

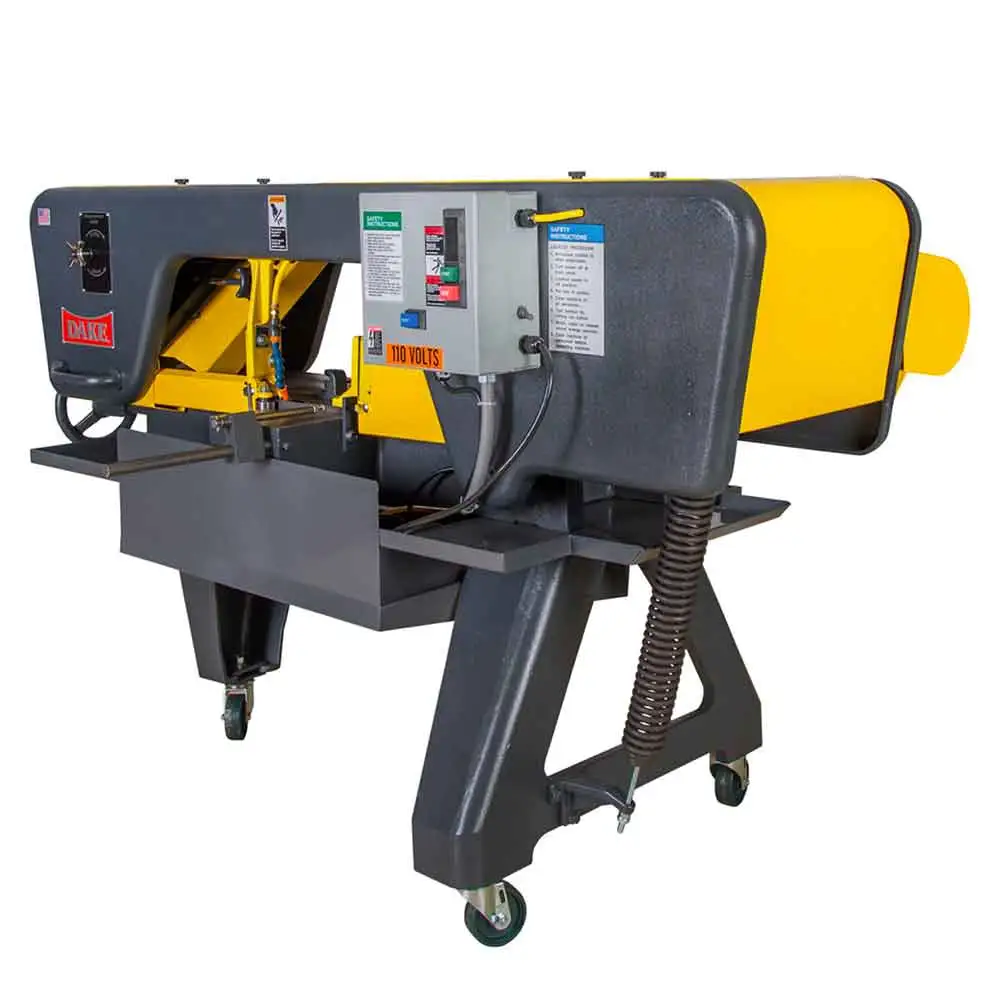

10″ x 18″ New Dake Heavy Duty Horizontal Band Saw Model JH10W1 Specifications:
10″ x 18″ New Dake Heavy Duty Horizontal Band Saw Model JH10W1 Features:
Heavy duty, American made medium production saw, comes with one standard Bi-metal blade.
Hydraulic controlled, gravity head feed, for hands free cutting. Hydraulically variable head feed control for regulation of head feeding rate. Machine automatically shuts off after cut is complete.
Cast two-piece head frame and large pivot bar, for extreme rigidity and long life.
Gear box is driven via “V” belt and step pulleys for fast speed changes.
Low voltage switches. Thermo over load protection, magnetic starter switch low voltage protection.
Miters up to 45º
Vise has quick release for quick change over of material sizes.
Chip brush keeps the gullets of the blade clean.
Case legs are of a three-point design. This unique design lets the machine sit flat, even on uneven floor surfaces.
The saw is fully guarded for operator safety.
Standard Equipment:
Vise
Magnetic starter
Blade tension
Frame feed control
Flood coolant system
Optional Equipment:
Casters (set of 3)
Stock stand
24″ discharge table
Part Number: 985017
Capacity: 10″ rounds, 18″ flats
Horsepower: 1
Voltage: 110V, single phase
Maximum Blade Speed: 270 fpm
Blade Width: 1″
Blade Length: 137″
Blade Speeds: 50/90/160/270 fpm
Solid Round 90º Capacity: 10″
Solid Round 45º Right Capacity: 7″
Solid Round 60º Right Capacity: n/a
Solid Square 90º Capacity: n/a
Solid Square 45º Right Capacity: n/a
Solid Square 60º Right Capacity: n/a
Solid Rectangle 90º Capacity: 4-1/2″ x 18″
Solid Rectangle 45º Right Capacity: 4″ x 10″
Solid Rectangle 60º Right Capacity: n/a
Bed Work (area): 11″ x 18″
Weight: 935 lbs
Height: 75″
Floor Space: 30 x 65″
Floor Space Left to Right: n/a
Floor Space Front to Back: n/a
Floor to Bed: 23-3/4″
