2 hp drive motors with magnetic starter and overload protection
Quick positioning 45º vise
Cast iron bed
Totally enclosed transmission
Quick and simple speed change
1” wide blade
Blade cleaning brush
Solid carbide blade guides with rollers
Recirculating coolant system with application through both guides
Stock stop
Easily adjusted head feed
Head control is hydraulic cylinder operated by needle valve
Two (2) year limited warranty

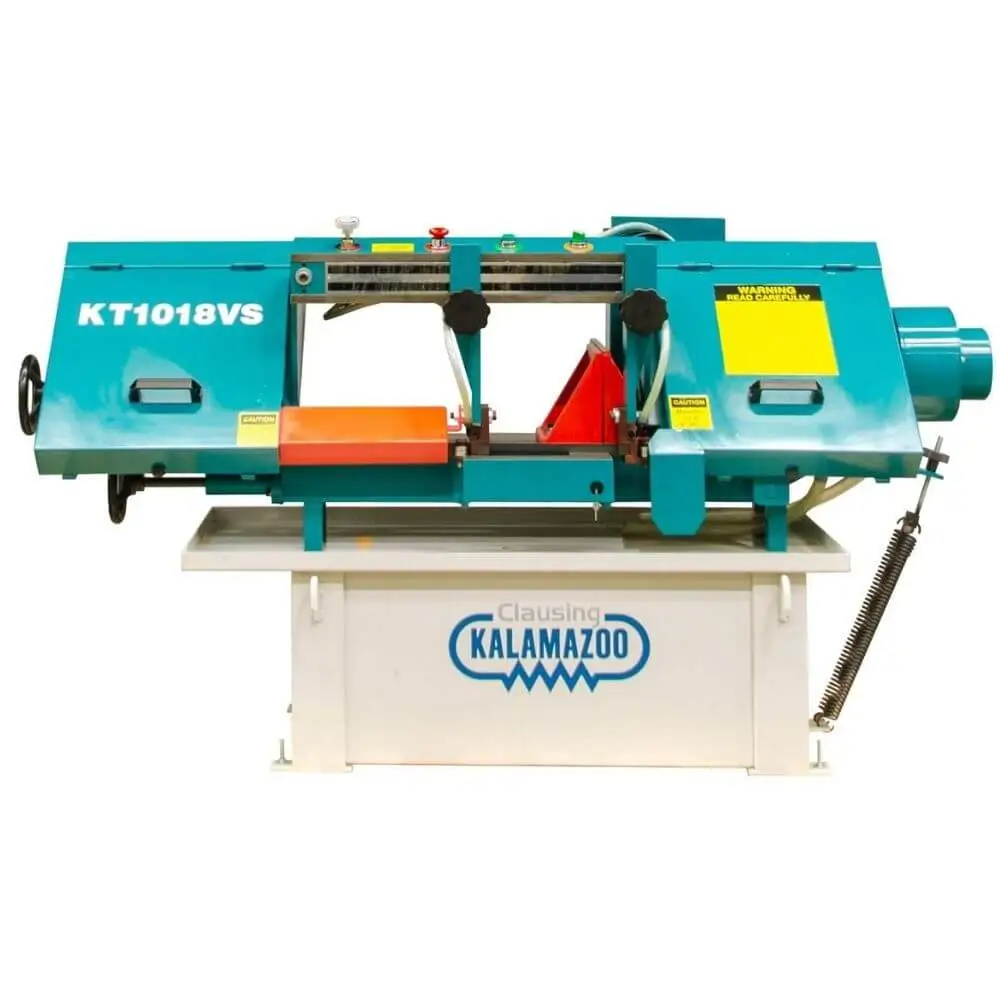

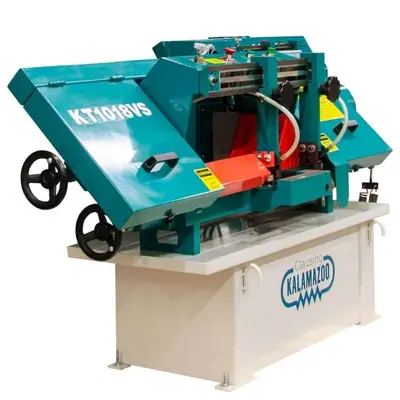

Type: Horizontal wet cut
KT1018W1 or VS1-motor: 2 Hp, 110v or 220v, 1 ph
KT1018W or VS-motor: 2 Hp, 230v or 460v, 3 ph
Band wheel diameter: 15.4″ flanged, cast iron
Blade (W x T x L): 1″ x 0.035″ x 11′-4.5″
Bed height: 21.8″
Blade speeds W models (4): 60, 125, 200, 300 fpm
Blade speeds VS models (variable): 69-321 fpm
90º cutting capacity: Round 10″
Rectangular 18″ x 6″ or 10″ x 6″
45º cutting capacity: Round 8″
Rectangular 8″ x 6″ or 4″ x 9″ or 3″ x 10″
Length: 74.8″
Width: 29.1″
Depth: 39.4″
Height (head up): 60.4″
Height (head down): 39.4″
Net weight: VS-720 lbs.
W-685 lbs.
Shipping weight: VS-850 lbs.
W-888 lbs.
Shipping dimensions (L x W x H): 80.3″ x 35.4″ x 45.3″
