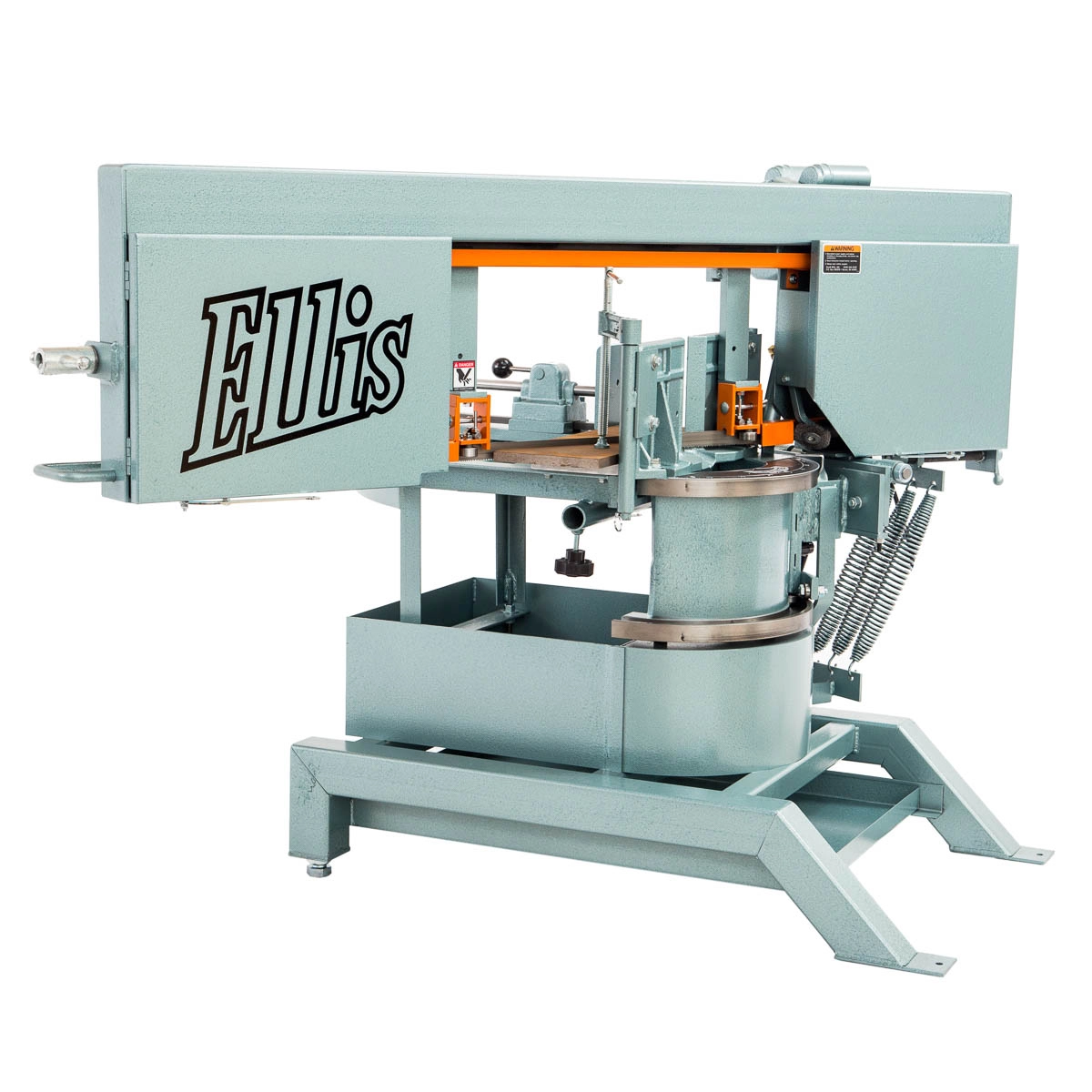

Ellis mitering horizontal band saws are engineered and manufactured with high quality in the United States. New Ellis horizontal band saws miter at 45° left or right. The 2000 model miters to 60° left or right. In addition every new Ellis saw are dry cutting, but can be bought with an optional air system.
Head Pressure Controlled By Hydraulic Cylinder
Sealed Oil Bath Worm Gear
Removable Chip Tray
Heavy Steel – Welded Base & Frame
Maximum Cutting Capacity @ 45 Degrees: 11″ x 11″
Maximum Cutting capacity @ 60 Degrees: 10″ x 6″
Main Motor: 1-1/2 H.P. 110/220 Volt 1 Phs.
Blade Size: 1″ x 12′ x .035″
Machine Weight: 800 Lbs.
