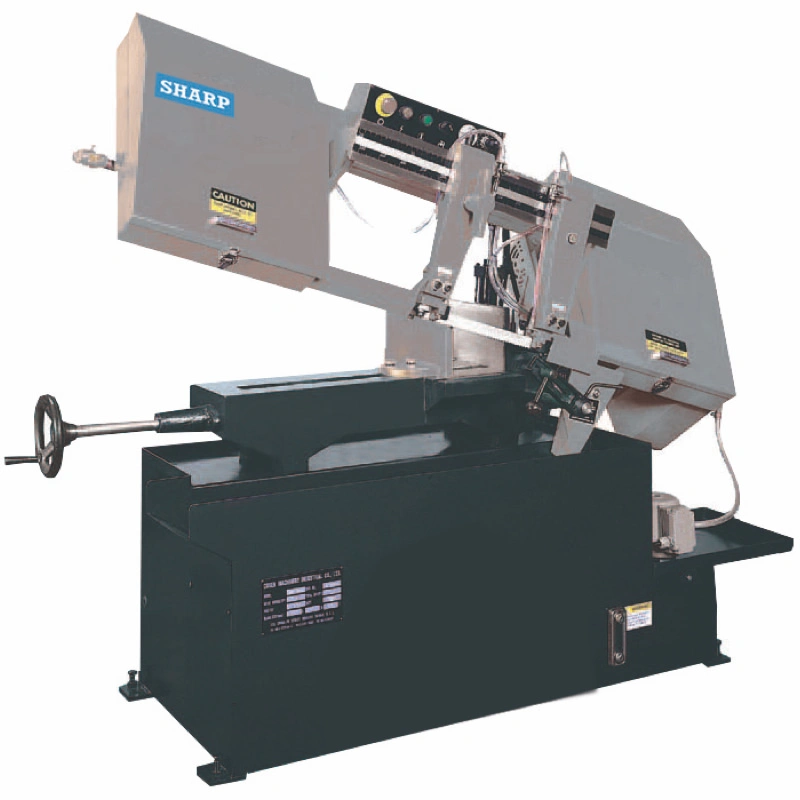

Simple, easy to use manual saw with 8” capacity for round stock, vise can swivel 45°, manual vise clamping, mechanical length stop.
8″ round, 7″ square, 7″ x 11.4″ rectangular cutting capacity (90°)
5″ round, 6″ square capacity (45°)
1 HP motor, wt. 660 lbs
Coolant system
Auto saw arm return at end of cut
4 step blade speeds with worm gear speed reducer
Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life.
Blade brush to remove chips from blade gullet
Adjuster stock stop
Manual blade tension adjustment
Adjustable mechanical material stop
Bi-Metal saw blade
Coolant system
Tools leveling pads and additional wire brush
Infinite variable speed device
2M roller table
1M roller table
Rectangular 90° (H x W): 11.4″ x 7″
Rectangular 45° (H x W): 9″ x 6 “
Round 90°: 8″
Round 45°: 8″
Square 90°: 7″
Square 45°: 6″
Speed: 60HZ: 59,96,155,260 fpm
50HZ: 49,83,129,217 fpm
Size: 107″ x 1″ x 0.035″
Tension: Manual
Saw Blade: 1 HP
Coolant: 1/8 HP
Table Height: 25″
Vise Control: Manual
Net Weight: 484 lbs
Gross Weight: 528 lbs
Floor Space: 56″ x 24.5″ x 45″
