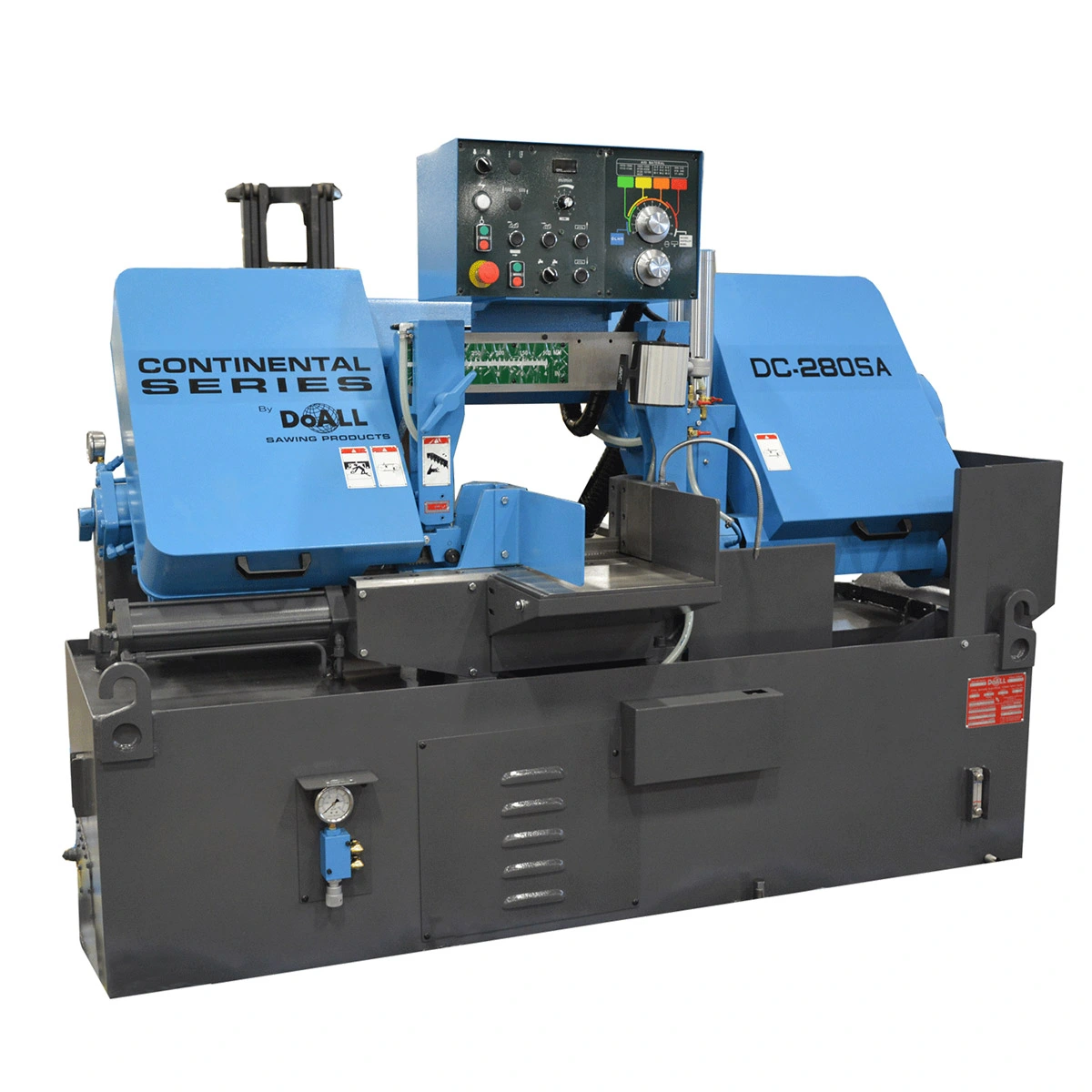

11-3/4″ x 11″ New DoAll Horizontal Band Saw Model DC-280SA The 11-3/4″ x 11″ DC-280SA Semi-Automatic Continental Series™ high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saw is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut.
11-3/4″ x 11″ New DoAll Horizontal Band Saw Model DC-280SA Specifications:
Standard Equipment:
Programmable Logic Controller (PLC) control for all electric and hydraulic functions
Speed transmission by worm gear & shaft
Hydraulic blade tension
Multi-step full stroke vises with split front vise and variable vise pressure control
Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
Power driven, coolant flushed, blade cleaning wire brush
Flushing hose and auxiliary coolant nozzles
Automatic chip conveyor
Blade breakage/stall motion detector shut off switch
Band door interlocks
Work light
One 6.5 foot (2 meter) gravity conveyor
Tool kit
Complimentary DoALL Cutting Fluids package
One complimentary DoALL bi-metal saw blade
Instruction and parts manuals on CD or USB data stick
11-3/4″ x 11″ New DoAll Horizontal Band Saw Model DC-280SA Optional Accessories:
Additional 10 ft. length (3 meter) gravity conveyor with 17-1/4″ roller lengths … $2,395.00
Magnetic wand chip remover … $160.00
Digital copy of instruction and parts manuals … $75.00
Cutting Capacity Round Tube: 11″ (280mm)
Cutting Capacity Rectangle (WxH): 11.75 x 11″ (300x280mm)
Band Saw Blade (LxWxGage): 151 x 1-1/4 x 0.042″ (3820x34x1.1mm)
Band Speed: 52-430 fpm (16-128mpm)
Band Drive Motor: 5 hp (3.7 kW)
Hydraulic pump: Motor 1 hp (.75 kw)
Hydraulic Tank Capacity: 16 gal (60 L)
Coolant Motor: ¼ hp (0.2 kw)
Coolant Tank Capacity: 20 gal (75 L)
Material Pass Line Height: 27 ½” (700mm)
Machine Weight: 2646 lbs (1200 kg)
Dimensions W x L X H: 83.1 x 47.6 x 59.8″ (2110x1210x1520mm)
SKU: 1829
