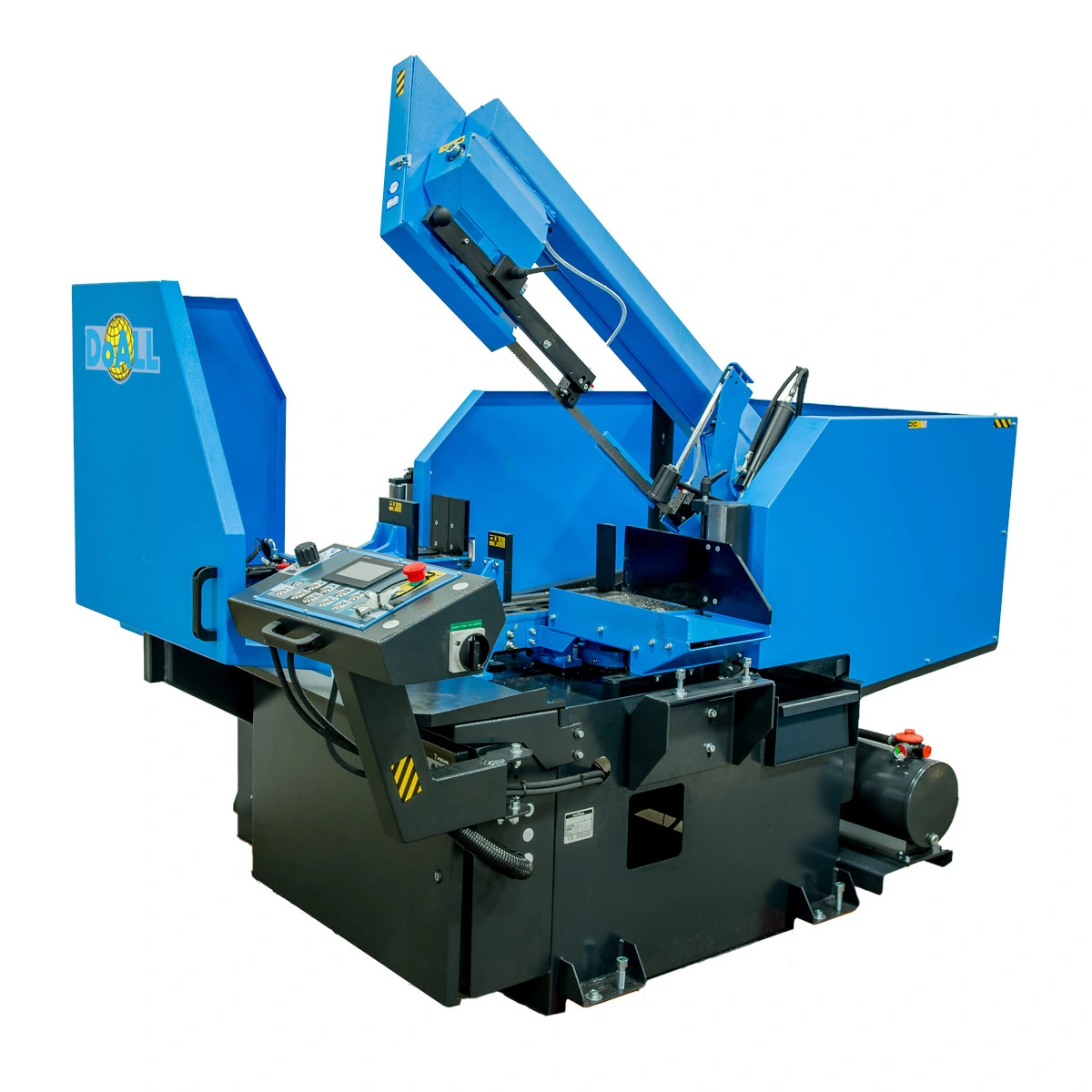

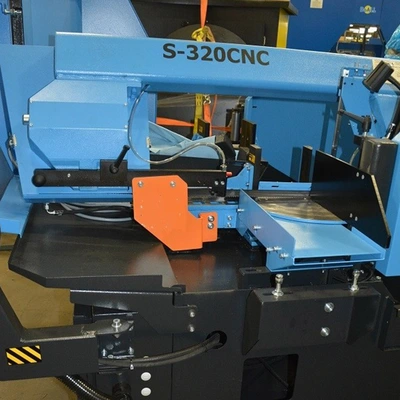

The DoALL S-320CNC StructurALL® miter, CNC automatic, metal-cutting band saw is ideal for fabricating shops, maintenance facilities, tool and manufacturing plants. The S-320CNC can also be classified as a horizontal structural, scissor-style miter-cutting saw. Hydraulically controlled, this CNC machine provides automatic indexing for multiple material feeds. With the easy-to-use controller, operators need only remove the material that has been cut. Designed for vertical and angular cuts, the DoALL swivel band saw is adjustable to 60° to the right in semi-automatic mode only.
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Specifications:
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Features:

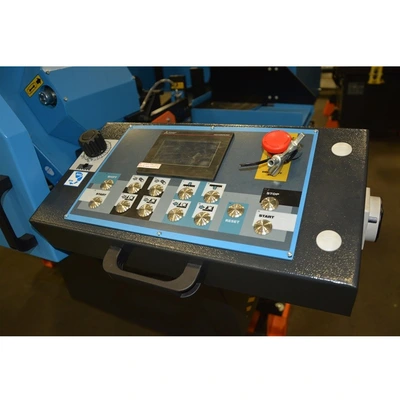

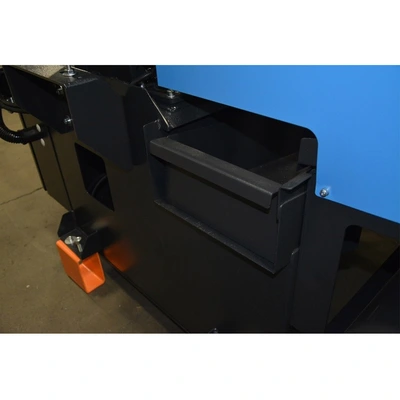

Operator Control Console: Control console can be positioned for operator comfort and safety insuring hands are away from blade at band start.
Mitsubishi Touch Screen Panel: The touch screen control panel displays cutting cycle indicator, blade tension warning, BRP (overfeed protection) function, band speed, band drive amp load and a list of error messages allowing operator to monitor machine functions.
Direct Driven Band Drive: Drive is comprised of an electric VFD controlled motor transferring power through a gear reduction unit directly to the drive wheel eliminates belt slippage and gives positive torque to the blade.
Automatic Cycle: The Automatic Cycle function allows the operator the ability to write and save 20 individual programs containing up to 15 different length of parts eliminating the need to stop the cycle and reset for multiple part sizes saving production time.
Automatic Overload Feed Protection: BRP function monitors band drive motor amperage stopping head fall when operator set parameter is reached signaling overfeed or a dull saw band.
Band Wheels: Cast steel wheels insure band tracking and long life. Lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print.

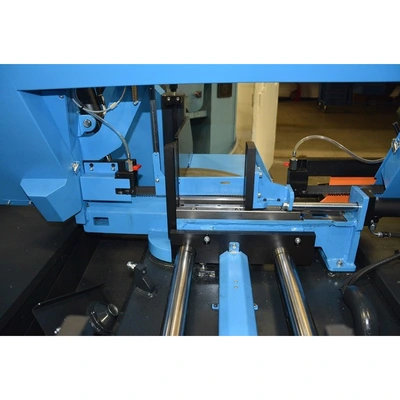

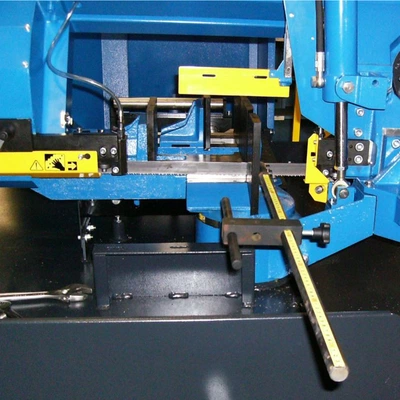

Hydraulic Clamping Vise: Full stroke hydraulic vises will minimize set up time and maximize clamping pressure eliminating material movement and tooth strippage.
Indexer: The vise carriage is guided with two hardened chrome plated rods and is positioned by a servo controlled ball screw insuring accuracy and repeatability also allowing for incremental indexing which decreases cycle time.
Head Turn Table: The miter function is accomplished by turning a conveniently located lock and manually swiveling the head to the desired angle which is displayed on touch screen allowing operator to make miter cuts in the semi-automatic production mode.
Manual Blade Tension: Illuminating indicator prevents possible error of over/undertightening the band for maximum cutting rates and band life.
Band Brush: Driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and band life.
Counter Balance Spring: Counterbalance springs maintain constant head weight throughout the cut keeping the blade tooth load equal aiding in maximum blade life.
Warranty: One year parts only subject to the terms and conditions. Optional ten year warranty is available.
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Standard Equipment:
Swivel head to 60 degrees right
Automatic cycle
Movable control console
Rapid head down approach
Carbide faced saw guide inserts
Material height sensor
Full stroke hydraulic vises
Driven band cleaning brushes
Ball screw with incremental feed
Heavy duty counter balance springs
Cast steel band wheels
Fine adjustment head feed control
Overfeed protection
Infinite band speed controlled variable frequency drive
Mitsubishi touch screen controller
Digital angle position
Out of stock sensor
Manual band tension
Variable vise pressure
Recirculating coolant system
Mist band lubricator system
Work light
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Recommended band speed chart
One (1) complimentary DoALL bi-metal saw blade
Complimentary DoALL cutting fluids package
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model S-320CNC Optional Accessories:
Cutting capacity round tube 90°: 11.75″
Cutting capacity round solid 90°: 6″
Cutting capacity rectangle 90°: 11.75″ x 12.5″
Capacity round at 45°: 4″ – 11.75″
Capacity rectangle at 45°: 11.25″ x 11.75″
Capacity round at 60°: 3″ – 7.75″
Capacity rectangle at 60°: 7.25″ x 7.25″
Saw blade (width x length): 1″ x 144″
Motor Hp: 3.5 Hp
Band speed: 65-325 fpm
Band tension: Manual
Motor Hp: 1 Hp
Reservoir Size: 2.5 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 0.17 Hp
Reservoir size: 2.25 gallon
Length per stroke: 19.5″
Maximum index strokes length: 394″
Remnant length: 3″
W x L x H: 91″ x 75″ x 60″
Material pass height: 31.5″
Machine weight: 1,993 lbs
Voltage requirement (Wye configuration): 230V-60Hz-3ph
Total amp draw (FLA): 14.7 amps
