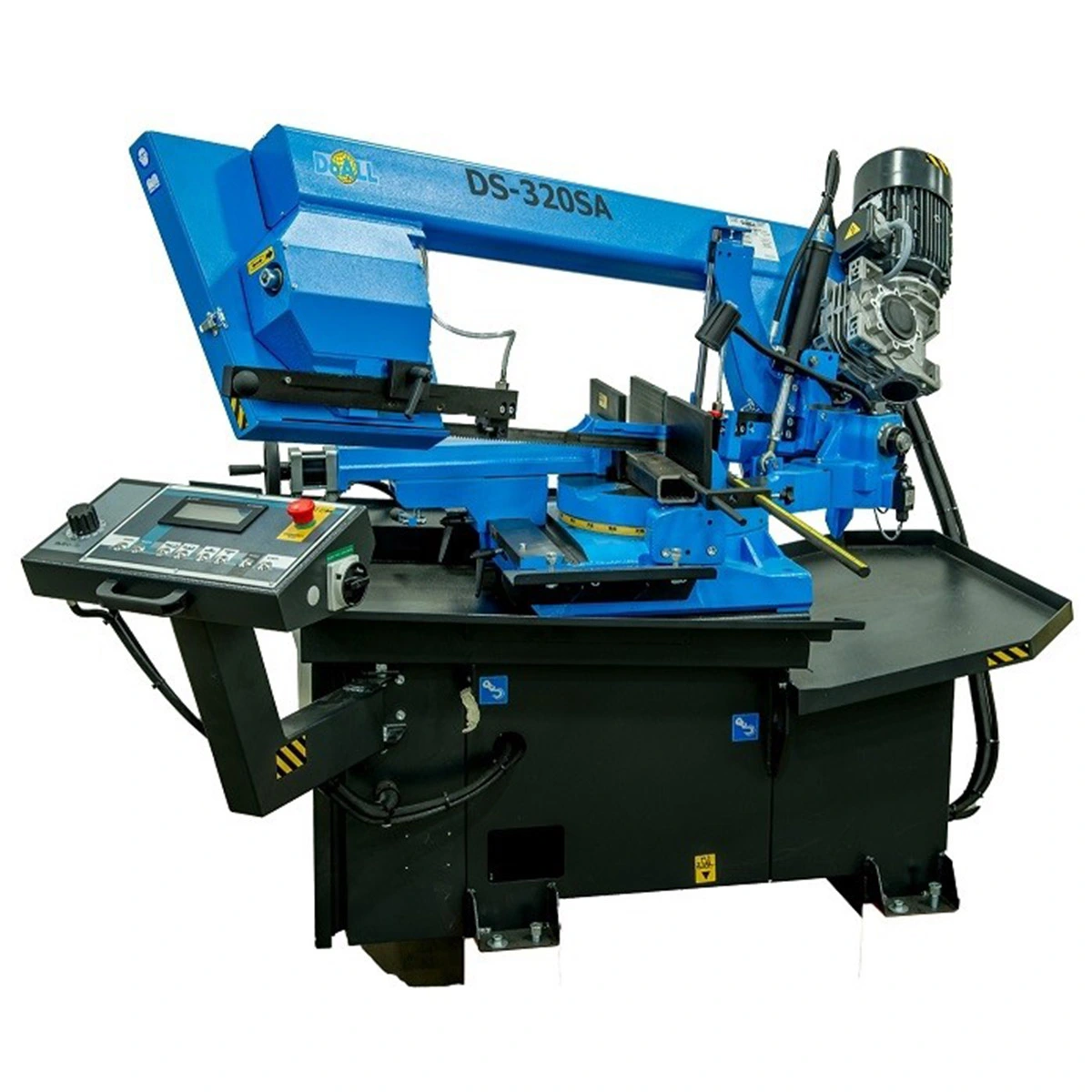

The DoALL DS-320SA StructurALL® semi-automatic, dual-miter band saw is designed for cutting vertical and angular material for low volume piece production. The DS-320SA model dual-swivel ability allows miter-cutting from 60° right and 45° left. The semi-automatic DS-320SA model features a variable frequency drive with programmable feed rates. A large variety of optional accessories are available to customize the machine for specific sawing requirements.
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model DS-320SA Specifications:
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model DS-320SA Features:
Operator Control Console: Control Console can easily be positioned for operator comfort and safety ensuring hands are away from the blade at band start.
Mitsubishi Touch Screen Panel: The touch screen control panel displays cutting cycle indicator, blade tension indicator, BRP (overfeed protection) function, band speed, band drive amp load, and a list of error messages allowing the operator to monitor machine functions.
Direct Driven Band Drive: Drive is comprised of an electric VFD controlled motor transferring power thru a gear reduction unit directly to the drive wheel eliminating belt slippage and giving positive torque to the blade.
Semi-Automatic Cycle: Programmable cycle allows the operator the ability to control hydraulic on-off, saw head movement after the cut, head raise limit through material height sensor, band drive on-off, and vise clamp-unclamp after the cut maximizing productivity.
Automatic Overload Feed Protection: BRP function monitors band drive motor amperage stopping head fall when operator set parameter is reached signaling overfeed or a dull saw band.

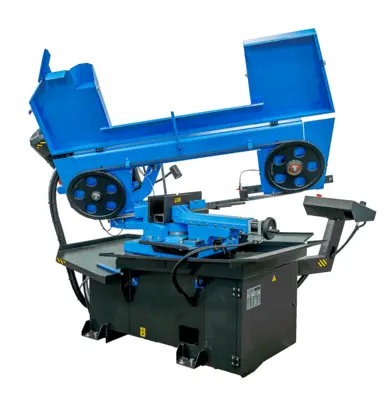

Band Wheels: Cast steel wheels ensure band tracking and long life. Lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print.
Hydraulic Clamping Vise: Two position, short stroke, hydraulic vise can be positioned on either side of band allowing maximum clamping close to the cut line eliminating material movement and tooth strippage.
Manual Blade Tension: Illuminating indicator prevents possible error of over/under tightening the band for maximum cutting rates and band life.
Band Brush: Driven band brush removes the chips from the blade gullets which would prevent the blade from attaining maximum cutting rates and blade life.
Counter Balance Spring: Counterbalance springs maintain constant head weight throughout the cut keeping the blade tooth load equal aiding in maximum blade life.
Warranty: One year parts only subject to terms and conditions. Optional ten year warranty is available.
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model DS-320SA Standard Equipment:
Dual swivel head to 45 left to 60 degrees right
Semi-automatic cycle
Movable control console
Rapid head down approach
Carbide faced saw guide inserts
Material height sensor
Manually adjusted short stroke hydraulic vise
Driven band cleaning brushes
Infinite band speed controlled variable frequency drive
Heavy duty counter balance springs
Cast steel band wheels
Fine adjustment head feed control
Manual band tension
Recirculating coolant system
Mist band lubricator system
Easy read angle position scale
3 ft manual set work stop
Saw blade guards
Band door interlocks
Operation and parts manuals on USB stick
Recommended band speed chart
One (1) complimentary DoALL bi-metal saw blade
Complimentary DoALL cutting fluids package
11.75″ x 12.5″ New DoAll Horizontal Band Saw Model DS-320SA Optional Accessories:
Cutting capacity round tube 90°: 11.75″
Cutting capacity round solid 90°: 6″
Cutting capacity rectangle 90°: 11.75″ x 12.5″
Capacity round tube at 45°: 11.75″
Capacity round solid at 45°: 4″
Capacity rectangle at 45°: 11.75″ x 11.25″
Capacity round tube at 60°: 7.75″
Capacity round solid at 60°: 3″
Capacity rectangle at 60°: 7.25″ x 7.25″
Saw blade (width x length): 1″ x 144″
Motor Hp: 3 Hp
Band speed: 65-325 fpm
Band tension: Manual
Motor Hp: 0.7 Hp
Reservoir Size: 2.5 gallon
Flood: Yes
Mist lubricator: Yes
Motor HP: 0.17 Hp
Reservoir size: 4 gallon
Length per stroke: N/A
Maximum index strokes length: N/A
Remnant length: N/A
W x L x H: 90″ x 46″ x 56″
Material pass height: 31.5″
Machine weight: 1,433 lbs
Voltage requirement (Wye configuration): 230V-60Hz-3ph
Total amp draw (FLA): 12 amps
