This NC operated hydraulic heavy duty automatic band saw utilize the Smart NC-100 system to store most parameters and functions and programmed to perform most cutting jobs.
10” round, 10” square, 10” x 11” rectangular cutting capacity, 3 HP (100NC)

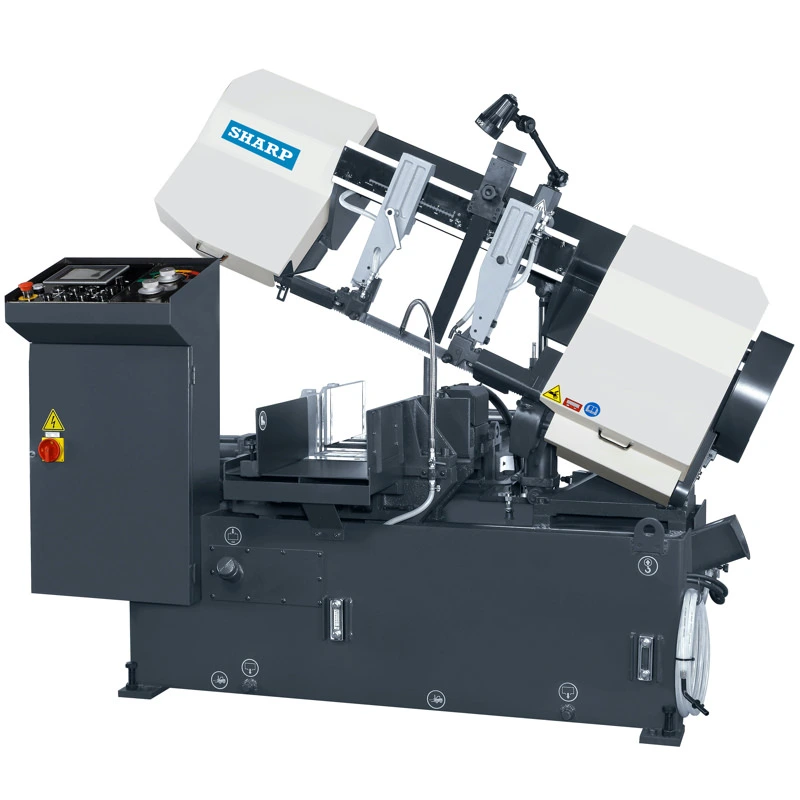

12” round, 12” square, 13.4” x 12” rectangular cutting capacity, 5 HP (120NC)
18” round, 18.1” square, 18.1” x 18.1” rectangular cutting capacity, 7.5 HP (180NC)
NC operating panel with touch screen
Hydraulic saw frame with heavy duty ball joint for powerful down feed
Back tilt saw head design to reduce saw twisting between wheel and blade guide
Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life.
Automatic hydraulic blade tensioning provide proper tensioning during and after machining
Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
Gearbox blade drive for heavy duty cutting
Easy blade change with front access at wait level
Blade “clip” device ot ease blade change
Additional flushing hose for cleaning
Discharge table with adjustable material stop
Bi-Metal saw blade
Coolant system
Tools leveling pads and additional wire brush
Hydraulic chip conveyor
Vise pressure regulator
3M powered roller table
Double retracting vise jaws
Hydraulic tool clamp for bundle cut
Laser beam light
Round: 12″
Square: 12″ x 12″
Rectangle: 12″ x 13.4″
Speed: 66-330 fpm (15-100 m/min)
Size: 150.4″ x 1.3″ x 0.04″
Tension: Hydraulic controlled
Guide: Interchangeable tungsten carbide
Cleaning: Steel wire brush with flexible drive shaft driven by main motor
Saw Blade: 5 HP
Hydraulic: 1 HP
Coolant: 1/8 HP
Hydraulic Oil: 6.6 gal
Coolant: 11.9 gal
Mode: Hydraulic/NC Automatic
Length: Single Stroke: 15.9″
Vise Control: Hydraulic with full stroke cylinder
Height of Work Bed: 26″
Net Weight: 3,528 lbs
Gross Weight: 3,970 lbs
Floor Space (L x W x H): 79″ x 75″ x 59″
