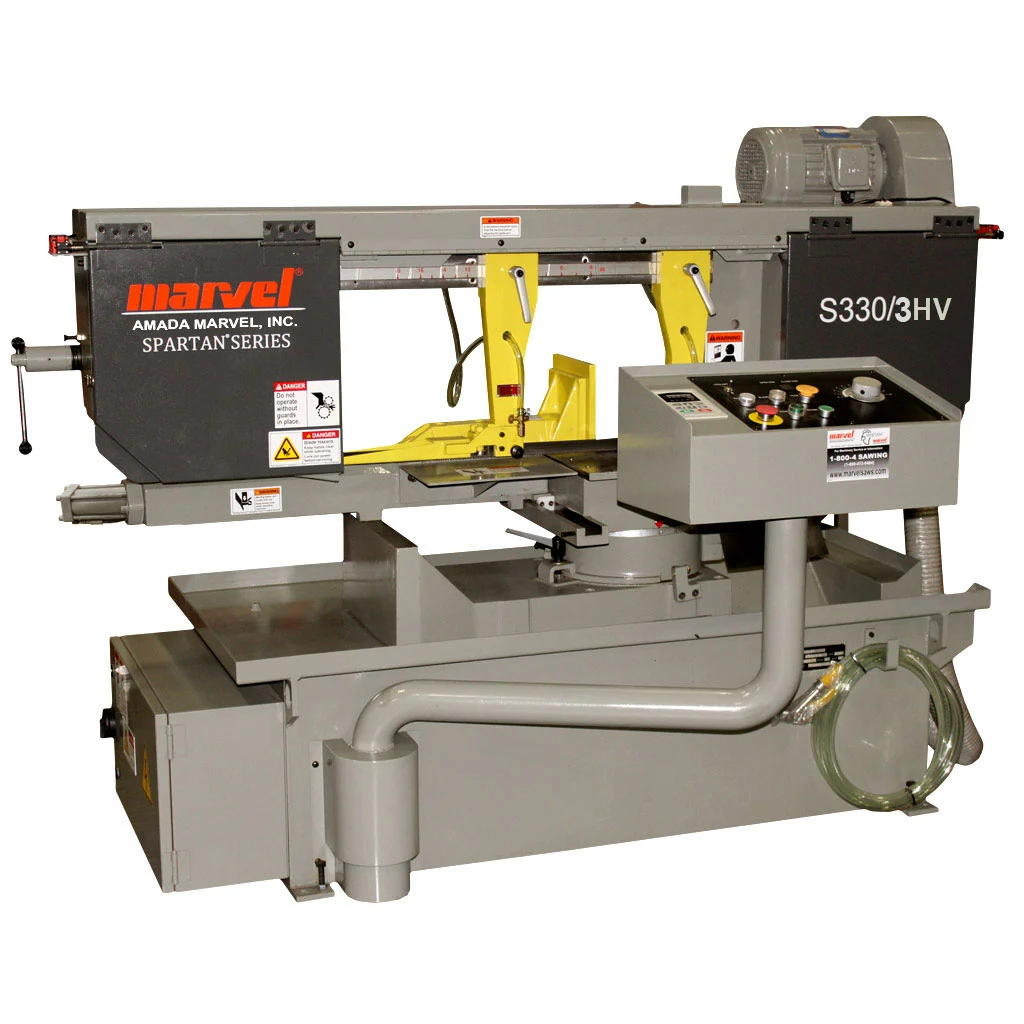

NEW MARVEL S330/3HV

18” x 12” New Marvel Horizontal Mitering Band Saw Model S330/3HV Specifications:

18” x 12” New Marvel Horizontal Mitering Band Saw Model S330/3HV Features:
Speed Range: The S330/2HV blade speed is infinitely variable through an Inverter Drive heavy-duty worm gear transmission. Blade speeds are 60-330 feet per minute (18-100 meters per minute). The S330/3HV uses a 4 speed step pulley. Blade speeds are 105, 175, 270 and 375 feet per minute (32, 53, 82, and 114 meters per minute). The broad speed range allows for optimum cutting of a large spectrum of materials.
Hydraulic Down Feed: Infinitely variable feed rate is hydraulically controlled for fast, accurate cutting. Settings are made at the operator’s control station.
Hydraulic Auto Frame Return: The saw frame will automatically raise hydraulically at the end of a saw cut. The saw frame can also be lifted hyraulically with the push button swtich.
Blade Guides: Carbide Blade Guides provide reduced vibration, heat and blade stress providing longer blade life.
Chip Brush: Powered from the drive wheel of the saw, the brush changes speed with the blade to assure that chips are being removed from each gullet, improving cutting performance and blade life.
Vise Jaw: Hydraulic rack and pawl vise design clamps and holds the work piece securely. The vise is operated by a selector switch located on the operator’s control panel.
Swivel Miter: The saw frame swivels a full 60 degrees to the rear and 45 degrees to the front for optimum miter cutting capability. Stops are provided at -60 and +45 degrees.
Operators Control Panel: Operation of the machine is safe and convenient from the swing arm pedestal mounted on the machine base. Control Voltage is 110V.
16” (407 mm) Diameter Cast Iron Blade Wheels
30.5” (775 mm) Work Height
Built In Coolant System
Adjustable Guide Arm With Dove Tail Slide

18” x 12” New Marvel Horizontal Mitering Band Saw Model S330/3HV Optional Accessories:
Automatic Mist Lube
Variable Vise Pressure
Free Standing Roller Table

Round (diameter) at 90°: 13″
Round (diameter) at ± 45°: 13″
Round (diameter) at − 60°: 8.7″
Rectangle (W x H) at 90°: 18″ x 12″
Rectangle (W x H) at ± 45°: 12″ x 12″
Rectangle (W x H) at − 60°: 11″ x 8″
Work Load Capacity: N/A
Blade Size (L x T x W): 13’6″ x 0.035″ x 1″
Blade Speed: 60-330 FPM by Inverter
Tension Control: Manual
Top Limit Setting: Manual Setting
Cutting Control: Hydraulic Flow Control Valve
Type: Single Vise
Control: Adjustable Hydraulic Vises
Saw Blade: 3 HP
Cutting Fluid Pump: 1/8 HP
Hydraulic Pump: 1/2 HP
Power Supply Voltage: AC230V±10%, 3 PH, 60 Hz, Required at Factory Voltage Setting
Power Requirement: N/A
Tank Capacity: 12 gal
Tank Capacity: 4.5 gal
Pressure Setting: N/A
Chip Disposal: Manual
Saw Frame Angle: – 60° ~ 90°~ +45°
Angle Swivel: Manual
Angle Display: Angle Scale
Head-Up Position: 79.9″ x 64.2″ x
Head Down Position: 79.9″ x 64.2″ x 57.2″
Table Height: 30.3″
Machine Weight: 1,543 lbs
