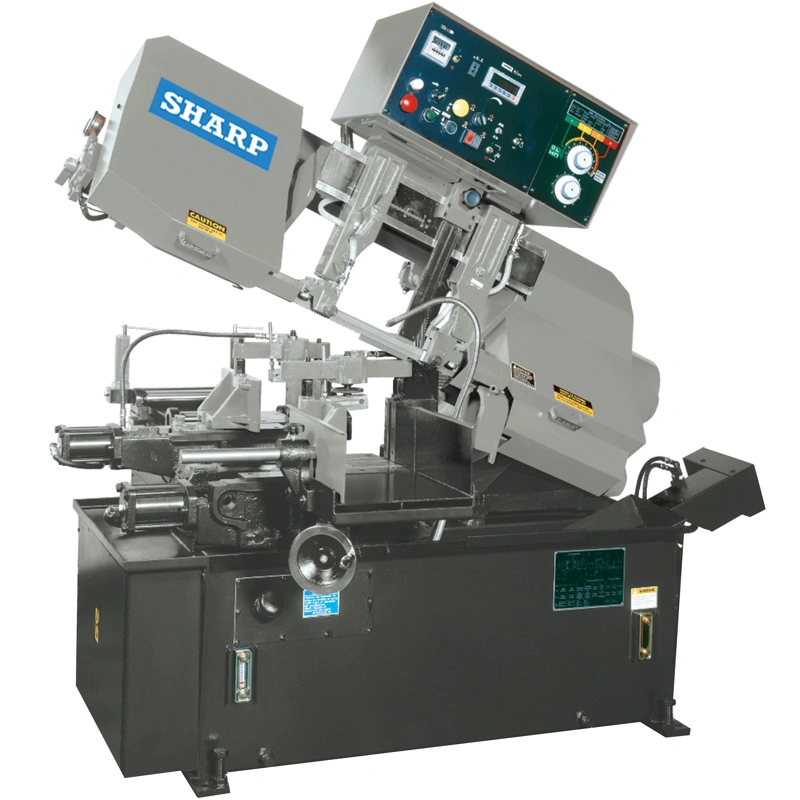

6” round, 12.6” square, 12.6” x 15” rectangular cutting capacity, 5 HP (126AD)
18” round, 18” square, 18” x 18” rectangular cutting capacity, 7.5 HP (180AD).
PLC controls hydraulic and electric system
Carbide blade guides with roller bearings pre-align the blade before entering carbide blade guides. It enhances blade life
Automatic hydraulic blade tensioning provide proper tensioning during and after machining
Multiple coolant applied during exit and entry of blade through blade guides, during cutting, and blade cleaning with brush
Gearbox blade drive for heavy duty cutting
Easy blade change with front access at wait level
Blade “clip” device ot ease blade change
Additional flushing hose for cleaning
Discharge table with adjustable material stop
Bi-Metal saw blade
Coolant system
Tools leveling pads and additional wire brush
Hydraulic chip conveyor
Vise pressure regulator
3M powered roller table
Double retracting vise jaws
Hydraulic tool clamp for bundle cut
Laser beam light
Rectangular (H x W): 12.6″ x 15 “
Round: 12.6″
Square: 12.6″ x 12.6″
Speed: 66-328 fpm (20-100 m/min)
Size: 167″ x 1.33″ x 0.04″
Tension: Hydraulic controlled
Guide: Tungsten carbide blade guide
Cleaning: Wire brush
Saw Blade: 5 HP
Hydraulic: 1 HP
Coolant: 1/8 HP
Hydraulic Oil: 6.5 gal
Coolant: 11.8 gal
Mode: Hydraulic/Automatic
Length: Single Stroke: 15.9″
Multi Stroke: Max 141.7″
Vise Control: Split front vise and hydraulic shuttle vise
Net Weight: 4,400 lbs
Gross Weight: 4,840 lbs
Floor Space (L x W x H): 79″ x 79″ x 59″
