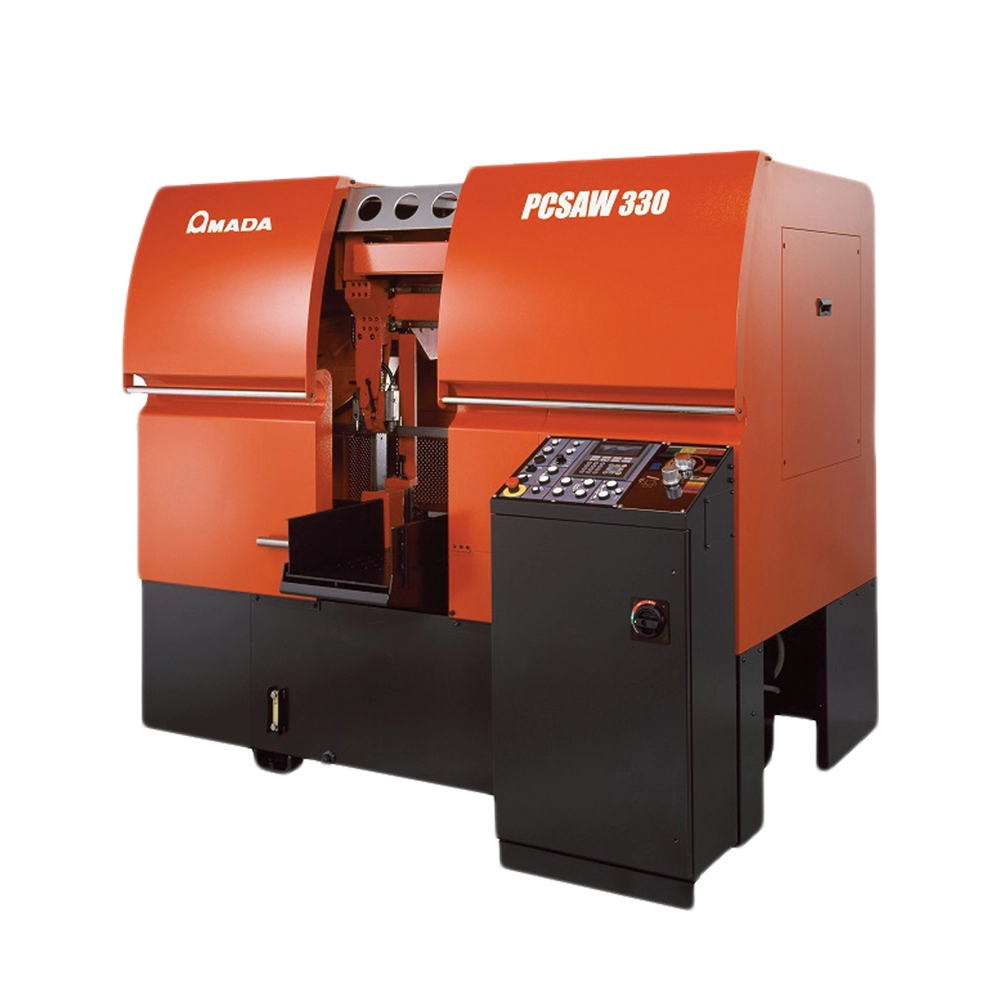

NEW AMADA PCSAW330

13″ x 13″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW330 Specifications:

13″ x 13″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW330 Standard Features:
HIGH SPEED CUTTING • The pulse cutting technology reduces cutting resistance thereby minimizing blade teeth wear and increasing cutting rates.
HIGH RIGID STRUCTURE • The post-type construction gives higher rigidity than the hinge type.
FULL COVER • The introduction of a full cover design prevents scattering of chips and cutting oil to ensure a better work environment.
SMARTCUT BAND • This helps increase yield and reduce the amount of chips produced. The combination of the PCSAW330 and the SMARTCUT BAND helps minimize the cutting resistance and increases material yield by reducing kerf.
AUTO TRIM CUT
CHIP CONVEYOR
SPLIT FRONT VISE
QUICK APPROACH
FULL STROKE VISES
MOTION DETECTOR
VERTICAL PULSE CONTROL
99 STATION NC TOUCH PANEL
BLADE DEVIATION MONITOR
HYDRAULIC BLADE TENSION
AC INVERTER SPEED CONTROL
AUTO INITIAL MATERIAL POSITION

13″ x 13″ New Amada Horizontal Pulse Cutting Band Saw Model PCSAW330 Optional Accessories:

About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.

Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
All product information including but not limited to price, specifications, color, photos, equipped with and features are subject to change.

Round (diameter): 1.18″-13″
Rectangle (W x H): 13″ x 13″
Work Load Capacity: 4,410 lbs
Blade Size (L x T x W): 13’6″ x 0.035″ x 1-1/2″
Blade Speed: 49-394 ft./min by Inverter Speed Change
Tension Control: Hydraulic
Top Limit Setting: Automatic Setting with Quick Approach Feeler
Cutting Control: Hydraulic Pressure & Flow Control Valve
Type: Main Split Vise and Rear Vise
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 5 HP
Hydraulic Pump: 2 HP
Pulse Cutting: 1/4 HP
Cutting Fluid Pump: 1/4 HP
Power Supply Voltage: AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement: 13 kVA
Tank Capacity: 16.9 gal
Pump Type: Centrifugal Electric Pump
Pump Capacity: 26.4 gal/min
Tank Capacity: 8.7 gal
Pump Type: Variable Discharge Vane Electric
Pump Capacity: 6.9 gal/min
Pressure Setting: 498 psi
Chip Disposal: Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 19.685″
Length: 0.394″-999.999″
Number of Input Station: 1-99
Number of Cut-Off Pieces: 1-9999
Remnant Length: 2.283″ Plus Length of Parts
Head-Up Position: 85.6″ x 99.6″ x 74.4″
Head Down Position: 85.6″ x 99.6″ x 74.4″
Table Height: 27.6″
Machine Weight: 3,970 lbs
