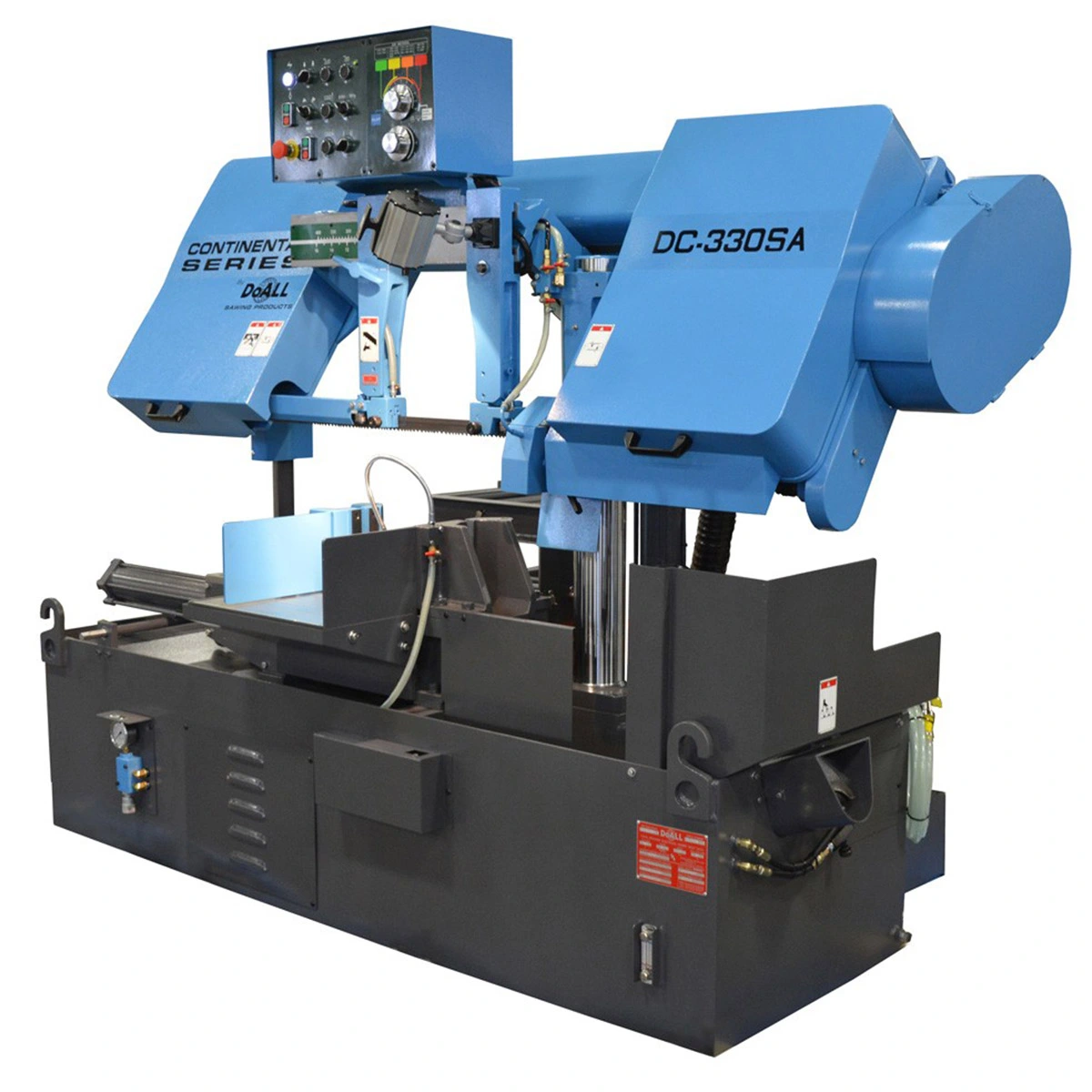

The DC-330SA Semi-Automatic Continental Series™ of high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.
13″ x 15.75″ New DoALL Horizontal Band Saw Model DC-330SA Specifications:
13″ x 15.75″ New DoALL Horizontal Band Saw Model DC-330SA Features:

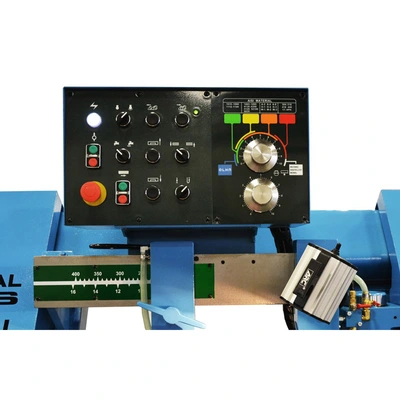

Push Button Control Panel: Ergonomically placed, user-friendly push-button control panel.
High Efficiency Transmission: High efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.
Hydraulic Chip Conveyor: Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.

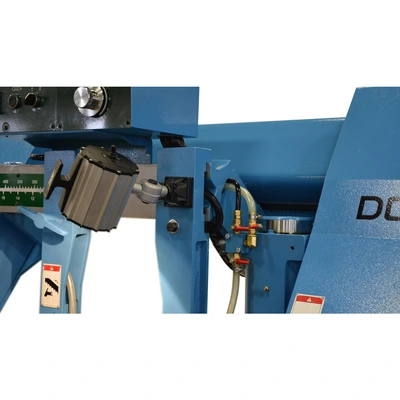

Coolant Thru Carbide Faced Saw Guide Inserts: Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
Efficiently Designed Hydraulic System: Engineered low pressure system allows for smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.
Band Wheels: 35 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.

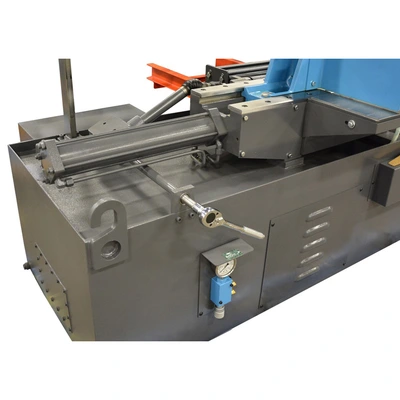

Multi-step Full Stroke Vises with Split Front Vise and Variable Vise Pressure: Shorter hydraulic cylinders reduces the overall footprint combining the advantage of rack and full stroke. Split front vice clamps on both sides of the blade reducing vibration and remnant length. Variable Vise Pressure will prevent distortion in thin wall tubing and extrusions.
Hydraulic Blade Tension: Eliminates possible error of over/under tightening the band for maximum cutting rates and band life.
Back-up Bearing/Inserts: Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.
Manual Material Positioner: Hand ratcheting roller system aids the operator in positioning material decreasing set up time.
Warranty: One year parts and service subject to terms and conditions. Optional ten year warranty is available.
13″ x 15.75″ New DoALL Horizontal Band Saw Model DC-330SA Standard Equipment:
Programmable Logic Controller for all machine functions
Feed rate/feed force saw head control
Infinite band speed controlled variable frequency drive
Manual hand ratcheting material positioner
Band speed digitally displayed
Multi-step full stroke cylinder with a split front vise clamping fore and aft of the saw blade
Variable vise pressure control
Spring loaded, zero clearance, coolant through, carbide faced saw guide inserts with lead-in rollers
Adjustable power driven band cleaning brushes with coolant flush line attached
Halogen work light
Flushing hose for machine wash down and auxiliary coolant nozzles
Hydraulic band tension
Hydraulic adjustable speed auger design chip conveyor
Saw band break/stall motion detector shut off switch
Band door interlocks
Operation and parts manuals on USB stick

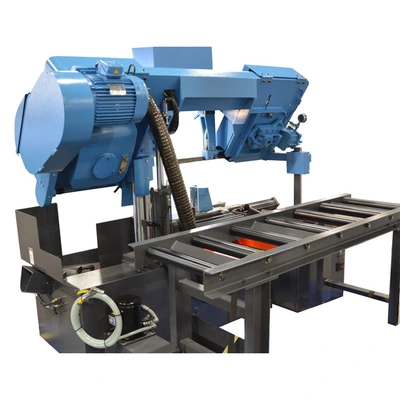

One 6.5 foot (2 meter) idler input conveyor
Maintenance tool kit
Complimentary DoALL Cutting Fluids package
One (1) complimentary DoALL bi-metal saw blade
13″ x 15.75″ New DoALL Horizontal Band Saw Model DC-330SA Optional Accessories:
Capacity at 90° rectangle: 13″ x 15.75″
Capacity at 90° round: 13″
Capacity at 45° rectangle: N/A
Capacity at 45° round: N/A
Saw blade (width x length): 1.25″ x 167″
Motor HP: 5 Hp
Band speed: 52-430 fpm
Band tension: Hydraulic
Motor HP: 1 Hp
Reservoir size: 16 gallon
Flood: Yes
Mist lubricator: No
Motor HP: 1/4 Hp
Reservoir size: 21 gallon
Length per stroke: N/A
Maximum index strokes length: N/A
Remnant length: N/A
W x L x H: 88″ x 48″ x 61″
Material pass height: 27.5″
Machine weight: 3,638 lbs
Voltage requirement (Wye configuration): 230V-60Hz-3ph
Total amp draw (FLA): 16 amps
