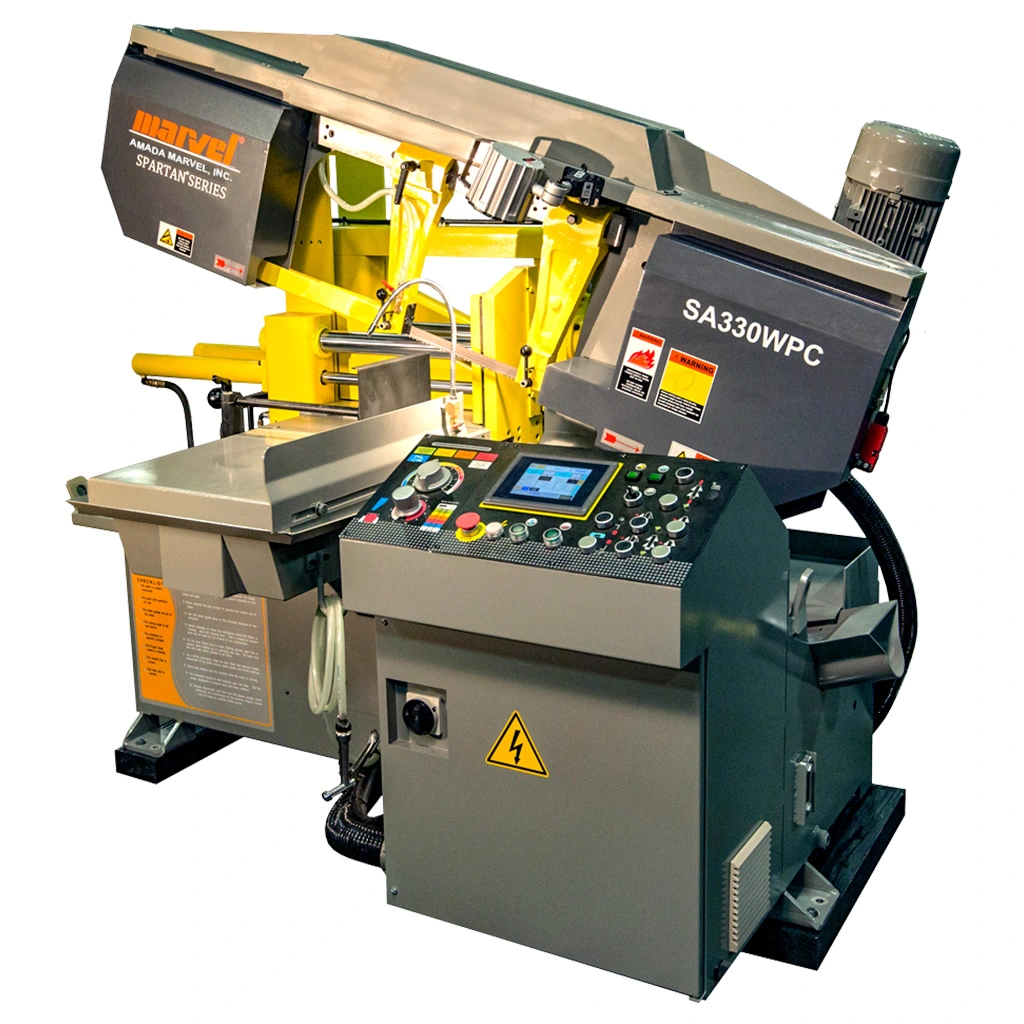

16” x 13” New Marvel Horizontal Mitering Band Saw Model SA330WPC Specifications:
16” x 13” New Marvel Horizontal Mitering Band Saw Model SA330WPC Features:
Speed Range: Infinitely variable through an inverter drive and a heavy-duty worm gear transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. The on screen tachometer assures accurate speed setting.
Hydraulic Down Feed: Feed rate and down pressure can be controlled for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator’s station.
Hydraulic Shuttle Feed: Length settings of 0-27.56” (0-700mm) are accomplished with simple programming at the operator’s touch screen. The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy, reducing material loss. Repeatability is + .005” per index.
PC Programmable Control: Conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to ten jobs. Inputs include Part Length from 0-999.999” and Number of Pieces to be cut. The Blade Speed is displayed on and set using the touch screen, but is not stored in memory. The Automatic Piece Counter stops each job when the pre-set number of cuts has been made.
Blade Guides: The carbide blade guides provide accuracies of + .002 per inch (.051 mm) of cut material.
Out-of-Stock Switch: The machine will shut off automatically when material is no longer present in the rear vise jaws, allowing for truly automatic operation.
Full Stroking Hydraulic Vise Jaws: Hydraulic vises hold the work piece, providing accurate cuts and longer blade life.
Shuttle Vise: The shuttle vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts. Remnant length is 9.5” (241 mm).
Auto Mist Lube: Mist lubricant in addition to standard flood coolant for lubrication.
Automatic Chip Removal: The chip auger rotating in the coolant return removes chips quickly and efficiently, freeing the operator to perform more productive operations.
Hydraulic Hold-Downs: Vertically mounted hydraulic clamps located on each vise jaw apply downward pressure to hold multiple bar work or structural shapes. Maximum Capacity: 12” x 18”.
16” x 13” New Marvel Horizontal Mitering Band Saw Model SA330WPC Optional Features:
Extension Dead Roller Table
Variable Vise Pressure Controls
First Section Dead Roller Table
Round (diameter) at 90°: 13″
Round (diameter) at 45°: 11″
Rectangle (W x H) at 90°: 16″ x 13″
Rectangle (W x H) at 45°: 15″ x 15″
Square at 90°: 13″ x 13″
Blade Size (L x T x W): 13’7″ x 0.035″ x 1″
Blade Speed: 95-295 SFPM
Tension Control: Hydraulic
Top Limit Setting: Manual Setting
Cutting Control: Hydraulic Flow Control Valve
Type: Main and Rear Vise
Control: Hydraulic Full-Stroke Cylinder
Saw Blade: 5 HP
Cutting Fluid Pump: 1/8 HP
Hydraulic Pump: 1/2 HP
Power Supply Voltage: AC230V±10%, 3 PH, 60 Hz, Required at Factory Voltage Setting
Tank Capacity: 14.5 gal
Tank Capacity: 4 gal
Chip Disposal: Chip Conveyor
Index Mechanism: Shuttle Vise
Stroke: 15.7″
Head-Up Position: 110.5″ x 94.3″ x
Head Down Position: 110.5″ x 94.3″ x 65.5″
Table Height: 27.6″
Machine Weight: 3,175 lbs
