Overview
Horizontal Band Saws
WELLSAW1316S-SA

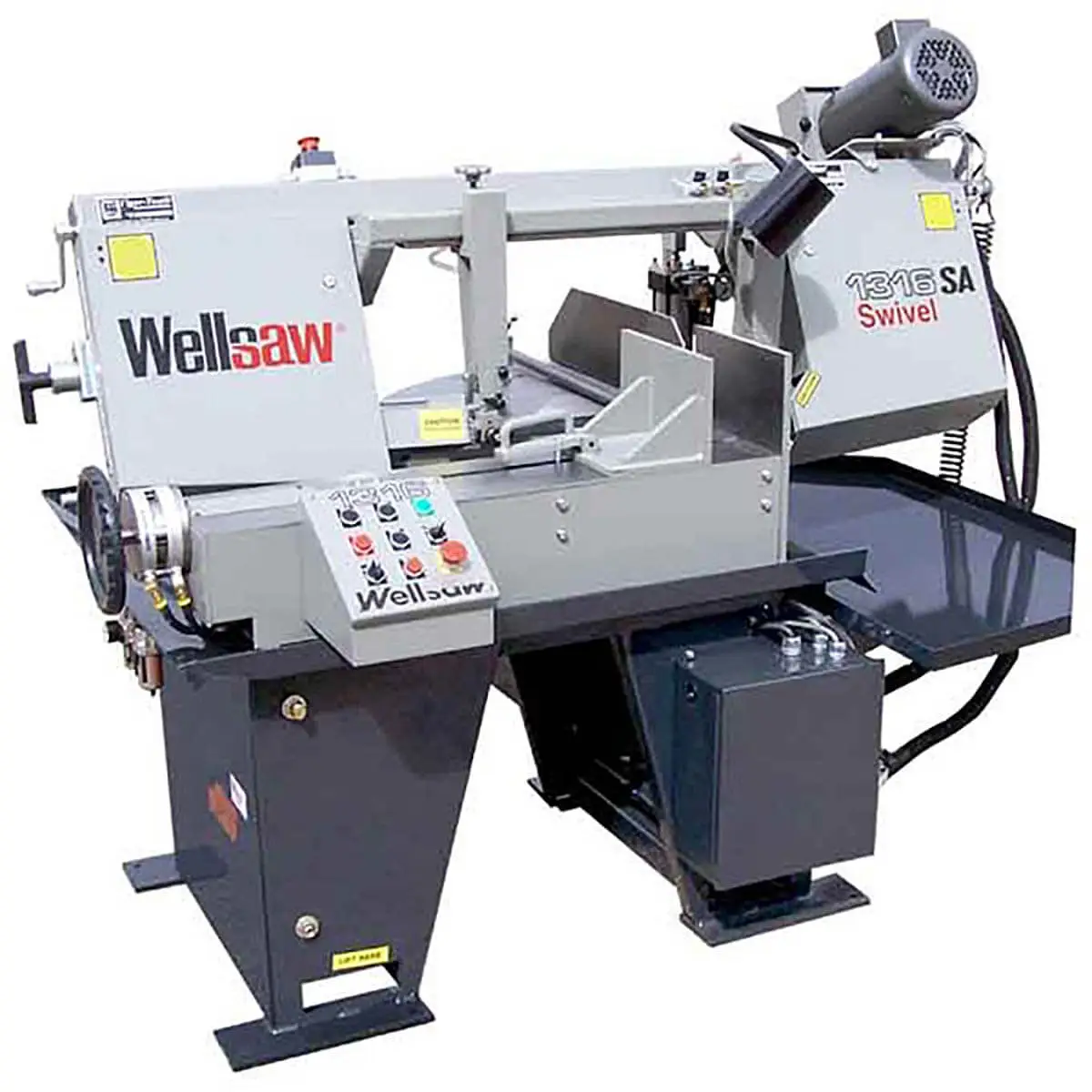

13″ x 16″ New Wellsaw Horizontal Band Saw Model 1316S-SA Specifications:
13″ x 16″ New Wellsaw Horizontal Band Saw Model 1316S-SA Features:
PLC Controlled, Full Cycle Semi Automatic
Saw Head Swivels on Precision Ball Bearings
Miter to 60 degrees-no need to swivel the stock
Large Protractor for Accurate Angle Selection
5′ x 18′ Infeed Roller Conveyor
Spring Loaded Carbide Guides with Rollers
Combination Reduction Gearbox and Ring & Pinion Blade Drive
Baldor Motor

3 HP Motor 3 Phase TEFC
2 HP Single Phase ODP
3 HP Motor 3 Phase TEFC
2 HP Single Phase ODP
Infinitely Variable Blade Speeds
Variable Hydraulic Downfeed Control
Work Light with Transformer
Rite-Tension Blade Tensioning Device
Wet Cutting System
Powered Blade Brush
110 Volts at Controls
Magnetic Starter with Overload and Undervoltage Protection
Precision Ground Bed and Vise Jaws
Quick Acting Vise/Air Powered
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth Bi-Metal Blade
Coolant for Initial Start-up
 Accessories:

Specs

Maximum Cutting Capacity Round@0˚ (90˚): 13″
Maximum Cutting Capacity Round @45˚: 11-1/2″
Maximum Cutting Capacity Round@60˚: 8″
Maximum Cutting Capacity Rectangular @0˚ (90˚): 13″ H x 16″ W
Maximum Cutting Capacity Rectangular @45˚: 13″ H x 11-1/2″ W
Maximum Cutting Capacity Rectangular@60˚: 8-1/2″ H x 8″ W
Blade Guides: Carbide Guides with Rollers
Blade Size (LxWxT): 1″ x .035″ x 12.6″(150″)
Blade Tension: Manual Rite-Tension
Blade Speeds: Infinitely Variable 70-375 SFPM
Vise Control: Air Cylinder/Quick Position
Motor: 3 HP
Electrical Options: 2 HP-115-208-230/60/1
3 HP-208-230-460/60/3
Coolant System: Tank Capacity 8 Gallons, Submersible Pump 115V/.6 Amp/3 GPM
Feed Rate Control: Variable Hydraulic/Counterbalance Spring
Band Wheels: 15″ Diameter Cast Iron
Stock Stop Projection: 25″
Bed Height: 35″
Floor Space (LxWxH): 90″ W x 76″ L
Shipping Weight: 1810 lbs.
