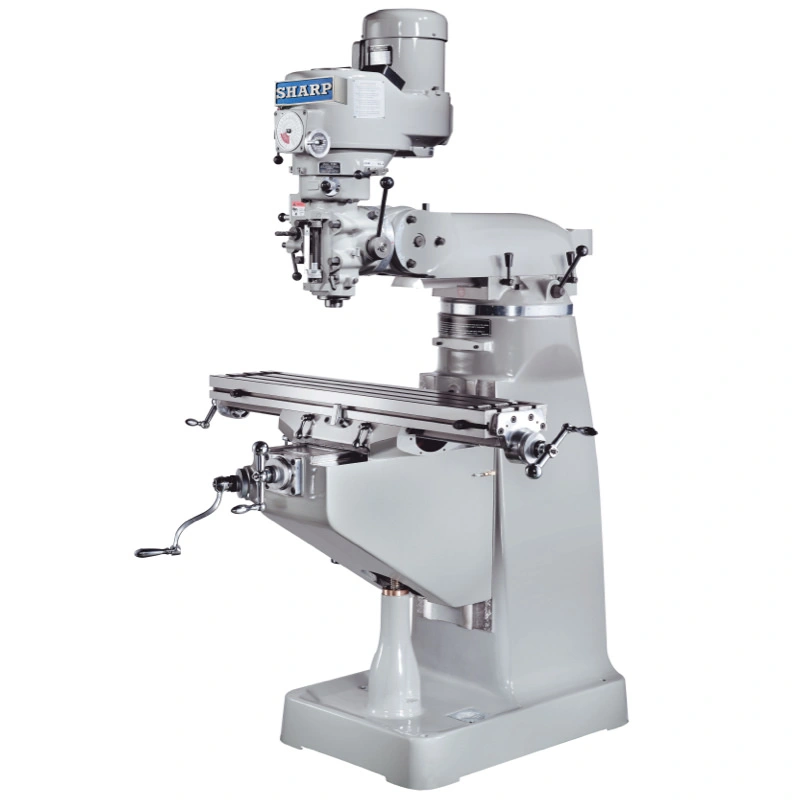

The new Sharp LMV mill is an excellent vertical milling machine for any shop. The Sharp LMV mill is built with certified Meehanite casting for rigid machining. Call Worldwide Machine Tool today to get the Sharp LMV Mill price complete with tooling and accessories for your machine shop today.
3HP motor
Variable speed drive (60-4500 rpm)
R-8 spindle
Dual cooling fans
Meehanite casting
Chromed ways
Self-lubricating motor shaft extends pulley life
Abec-7 super precision spindle bearings
One short lube system
Hard-chromed ways
Front and rear rubber way covers
Tool kit includes: Machine manual, half nut wrench, 17m & 19m wrenches, set of 6 Allen wrenches, Philip screwdriver, flat head screwdriver, oil can, grease gun, rear way cover bracket, pin for indicator, can of paint
Wired 220V or 440V. Please specify
Backlash Eliminator By Double Nut Design replaces the older design that squeezes a split nut to get rid of backlash. Sharp Is the first one to use a double nut design that keeps the feed screw in contact with a pair of bronze nuts. Using a custom tool supplied with the mlll, the feed nuts are adjusted to control backlash and held tight with a retaining nut and locking ring.
Thrust Bearings that mounted at the end of the table and saddle preload the feed screw. eliminating end play for precisely controlled lateral movements.
The New Patented Knuckled-Head Design prevents the head from slipping. The Sharp mills have a knuckle which uses 6 bolts, 3 each side, fitted into circular T-slots with matching nuts securing them from the outside. It locks the head in place for better accuracy and performance than the old design using only 3 bolts to squeeze the casting to hold the head without the T-slots.
Dual High Output Fan dissipates heat to protect the motor, belts and bearings,
Roller Bearing Support at the bottom of the motor shaft ensures proper loading, support and alignment of the spindle. It also prevents the distortion of the belts due to tension from long years of milling operation.
Easy Access Lubricating Shaft Is designed with an oll channel In the center that is fed by a grease fitting at the lower end.
About Us
Worldwide Machine Tool is the leader in providing full sales, parts and service, financing, transportation and training of new and used machine tools for chip and fabrication clients across the United States, Canada and Mexico. Our warehouses and office is located just minutes north of Columbus, Ohio. With over 28 years of experience in the industrial machine tool industry, we have the knowledge and expertise to provide our customers with the best customer service, support and technical expertise on all new and used machine tools to meet their needs.
We buy and sell new and used ironworkers, shears, lathes, milling machines, drills, saws, press brakes, routers, turret punch models, presses, welders, deburring and beveling machines, plate rolls, laser, waterjets and associated tooling and accessories. We take pride in being a trustworthy partner that our customers rely on through the years. Our experienced sales team would love to help you with your next machine tool purchase. Give us a call today or Request A Quote. Call 614-255-9000 or Contact us today to experience the Worldwide Machine Tool difference.
Check us out on Twitter, Facebook, Youtube, and Instagram.
Worldwide Machine Tool LLC.
Terms and Conditions: https://www.worldwidemachinetool.com/terms-conditions/
T-slots (No., Size): 3, 5/8″
Table Travel: X Longitudinal: 30″
Table Travel: Y Cross: 12″
Quill Travel:; Z Vertical: 5″
Ram Travel: 12″
Knee Travel – Vertical: 16″
Spindle Center to Column: 6.75″ – 18.5″
Spindle Nose to Table Top: 2.125″ – 18″
Spindle Nose Taper: R-8
Spindle Variable Speed Range: 60 – 4500 rpm
Spindle Motor (220V/440V): 3 HP
Quill Feed (inch/rev) (3 speeds): 0.0015″, 0.003″, 0.006″
Quill Diameter: 3.375″
Head Swivel Angle: 360°
Head Tilt Angle (L/R): 45°
Head Tilt Angle (Up/Down): 45°
Floor Area (W x D x H): 7′ x 6.5′ x 6.75′
Approximate Weight: 2,400 lbs.
Power Consumption (220V): 3 KVA/8 amp
Power Consumption (440): 3 KVA/4 amp
