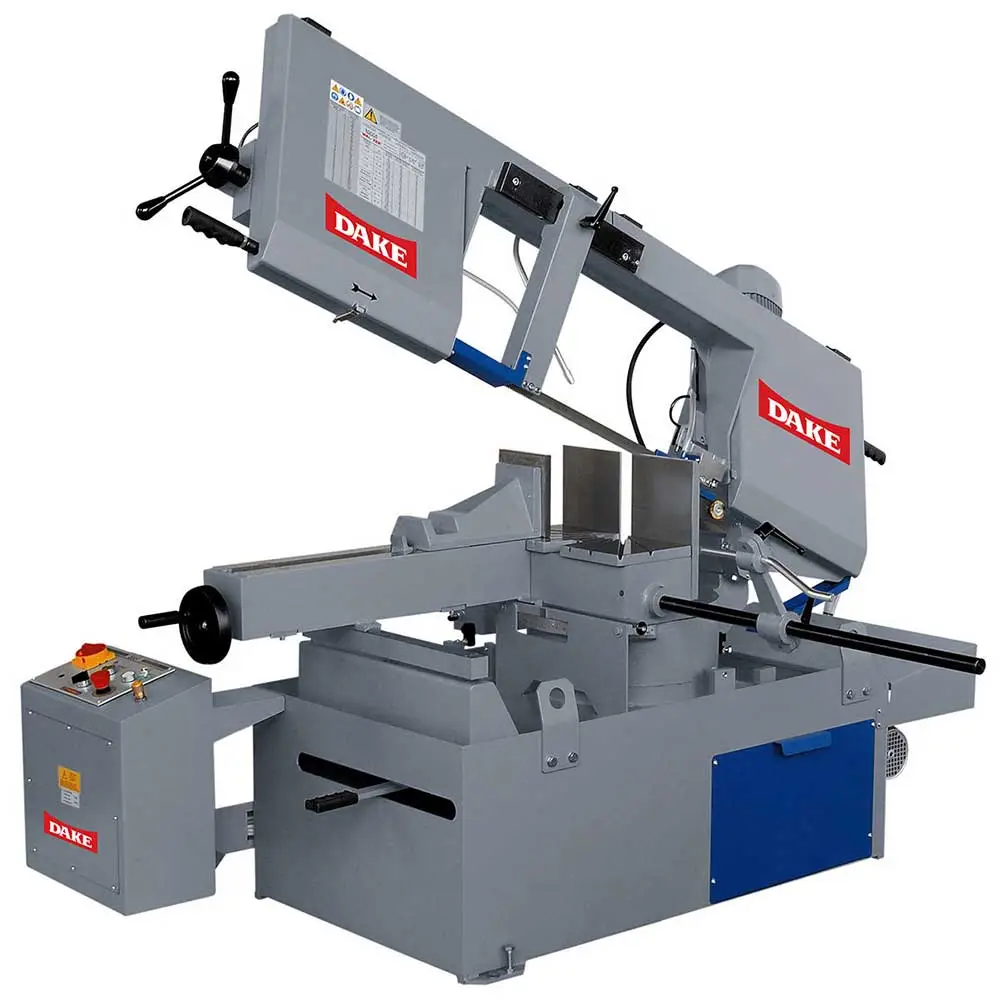

13″ x 18″ New Dake Heavy Duty Horizontal Band Saw Model SAR 332 SA ideal for large cutting sections. Higher stability and precision. Controlled Saw frame down feed with hydraulic regulator.
13″ x 18″ New Dake Heavy Duty Horizontal Band Saw Model SAR 332 SA Specifications:
Features:
Heavy duty band sawing machines ideal for large cutting sections.
Higher stability and precision. Controlled Saw frame down feed with hydraulic regulator.
Hydraulic saw frame uplift. Quick approach vice (hydraulic lock optional) and replaceable working support plate.
Precision blade-guides with hard metal pads and adjustable bearings.
Independent lowering control of the head
Activation of the cutting cycle
Manual closing of the vise
CE Approved controls located in conveinent location
Horse Power: 2 HP
Fly Wheel Size: 15″
Blade Speed: 69 fpm / 380 fpm
Max Vise Opening: 19″
Electrical Components: CE Approved
Weight: 1,588 lbs
Work Height: 29″
Blade Dimensions: 150″ x 1.25″
Saw Frame Inclination: 25 Degrees
Voltage: 230 Volt 3 Phs.
Round 0 , 45, ,60 degrees: 13″ , 12″ , 8″
Square 0 , 45 , 45 SX , 60 degrees: 13″ x 18″ , 11″ x 11″ , 10″ x 10″ , 7″ x 7″
Rectangle 0 , 45 , 45 SX , 60 degrees: 13″ x 18″ , 12″ x 10″ , 11″ x 10″ , 7″ x 11″
