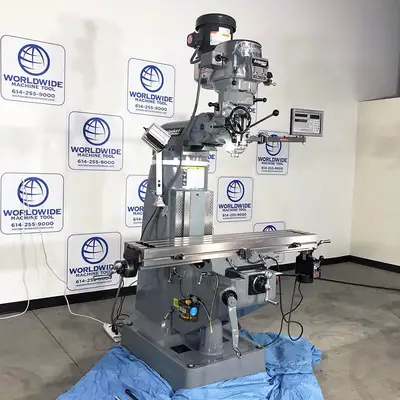

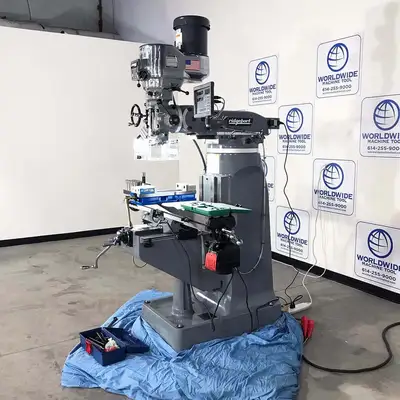

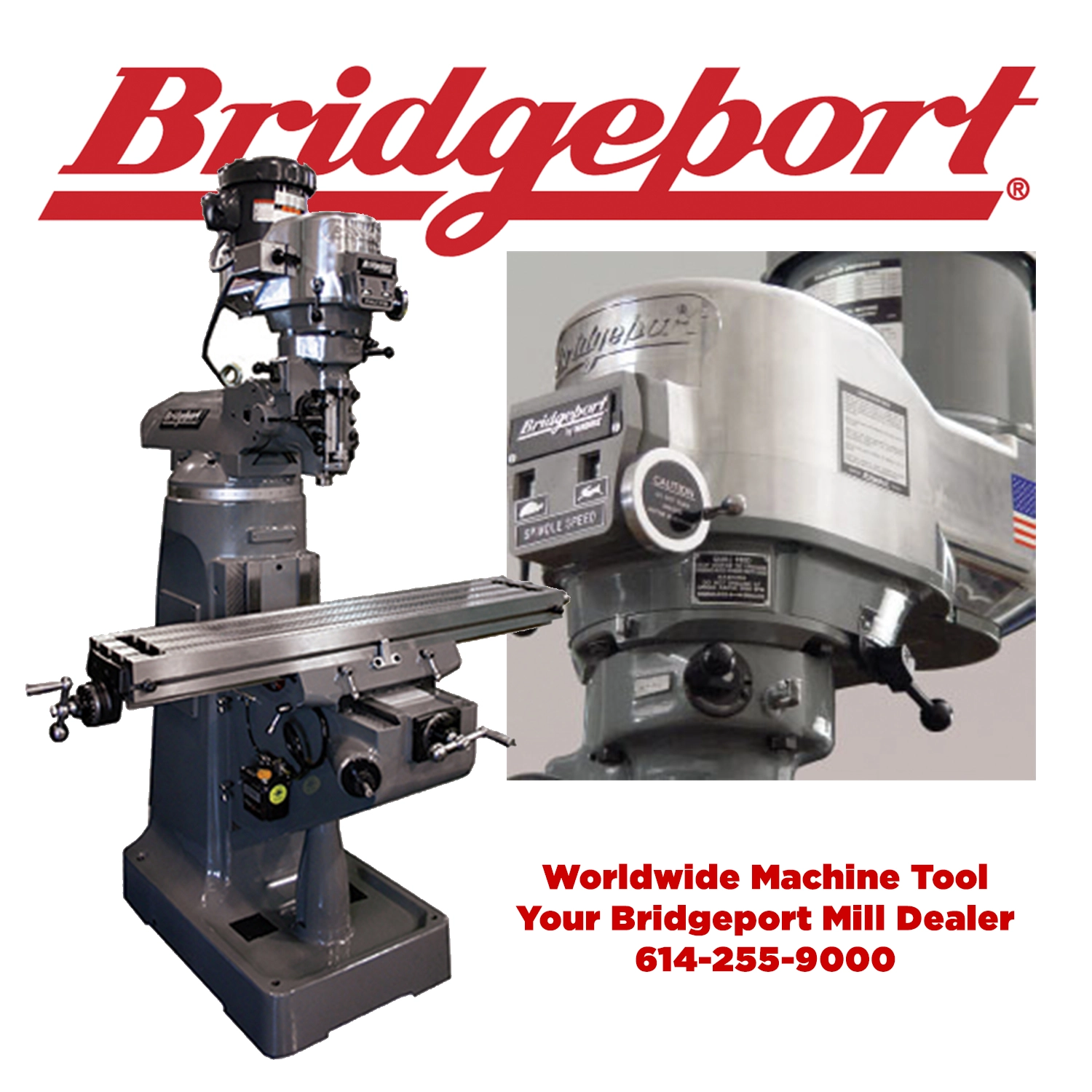

9″ x 49″ New Bridgeport Mill Series 1 “Standard Package 5 no longer available”

The New Bridgeport Mill Standard Package 5 is configured with the following.

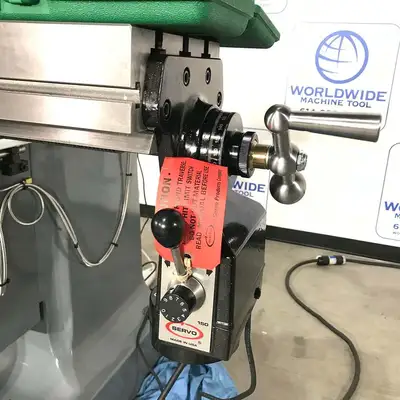

Inch Screws and Dials, (Special Order Only Erickson #30 Quick Change Spindle), Chrome Ways and Gibs, One-Shot Lube, X-Axis Servo Power Feed available in 230V 60Hz, 208V 60Hz or 460V 60Hz.

NOTE: THESE ARE SPECIAL ORDER BRIDGEPORTS – If you are looking for the STANDARD new Bridgeport mill for sale standard package 1 click here.
Built the Bridgeport Way

The long-term reliability of a Series I mill is the result of its design features, the quality of its components, and the craftsmanship of its hand-scraped ways and precision ground fits. Every Hardinge-Bridgeport knee mill is built to last as if you would build it for yourself. That’s why the resale value of a Bridgeport mill remains consistently high. The “bargain” imitators can’t say that. Our competitive prices are a result of our higher volume­not from building a cheaper machine. Rigidity starts with the main frame components of a machine, and for this reason, the strength and damping qualities of gray cast iron was chosen.

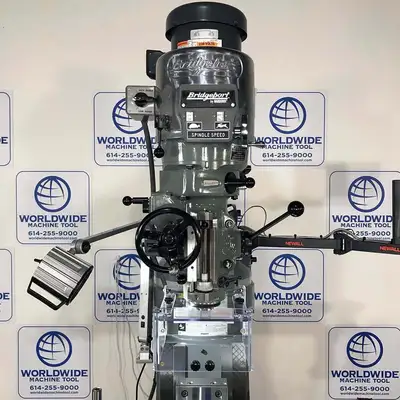

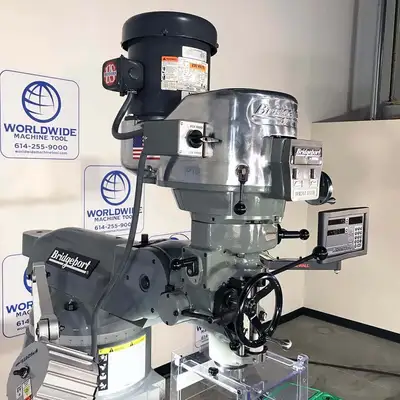

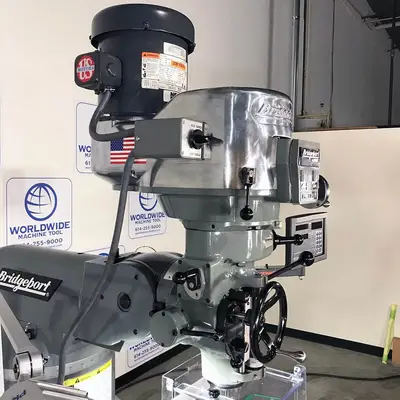

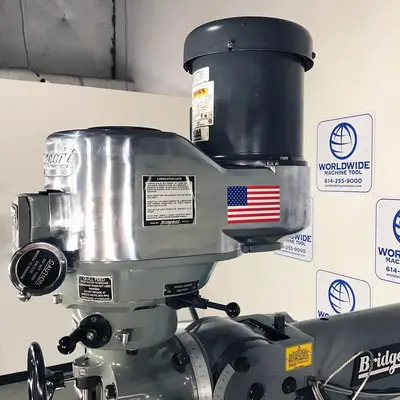

Patented 2J head

The unique and patented air cooling system of the “2j” head ensures that any heat buildup in the spindle bearings, belt or quill area is kept to an absolute minimum. This is achieved by air being drawn into the belt housing and past the spindle bearings by the rotation of the drive belt It is then exhausted out of the head assembly at the top of the casting.
Distortion and inaccuracy due to excessive heat rise is kept to a

minimum by maintaining the operating temperature within 20 degrees

fahrenheit of ambient temperature. This also results in increased belt and bearing life, as well as more consistent accuracy. Also, with no external cooling fans, vibration is reduced and the ongoing maintenance or threat

of a fan failure is eliminated. Fans also frequently require a step-down transformer if the machine is wired for power greater than 110 Volts.

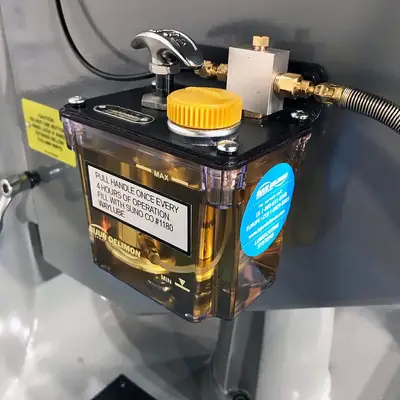

Series I One-shot lubrication

Adequate lubrication ensures a long accurate life for the machine. It also reduces maintenance and makes the machine more sensitive and easier for the operator to use. A metered, centralized system lubricates all of the ways and screw assemblies of the machine. Operation of the system by a single lever saves the operator time and makes it easy to always provide the correct amount of oil, predetermined by a series of metering valves built into the system. Many competitive systems do not meter lubrication, which allows the oil to flow to the point of least resistance.Thus one sliding member may receive more oil than another; possibly causing excessive wear to the area that is not getting properly lubricated. An optional Automatic Lubrication System is also

available.

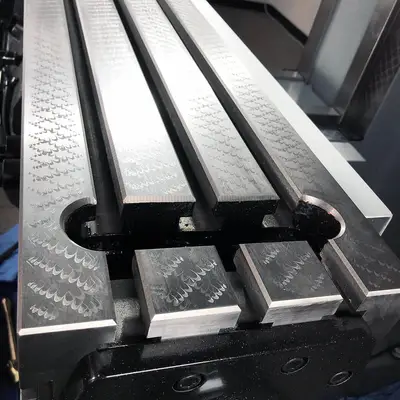

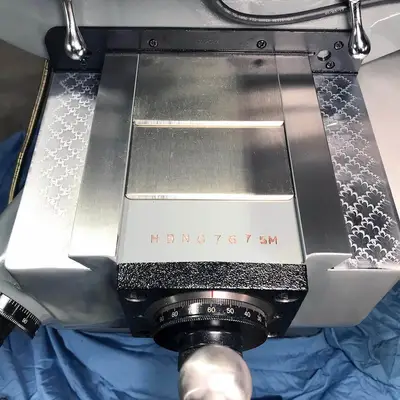

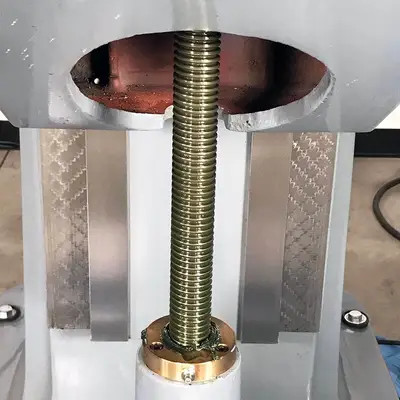

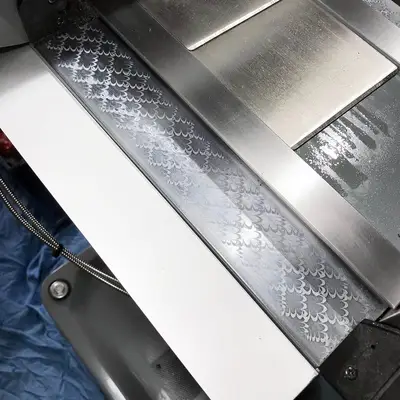

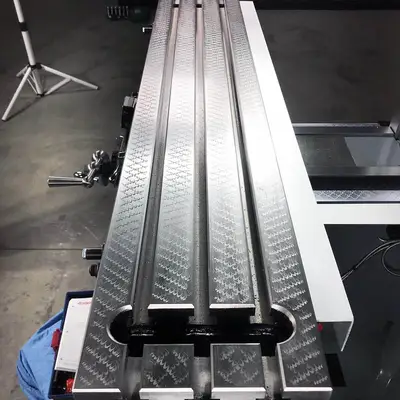

Hand-scraped ways

All alignment ways and gibs are completely hand scraped to within tenths of a thousandth.This ensures optimum machine geometry, rigidity and accuracy.
New Bridgeport Mill for sale Series 1 specifications.
Features of a New Bridgeport Milling Machine Series 1.
Chrome Plated Ways
One Shot Lube
Variable Speed Drive
Back Gear For Heavy Milling
Draw Bar
New Bridgeport Mill unboxing video (Full demonstration)

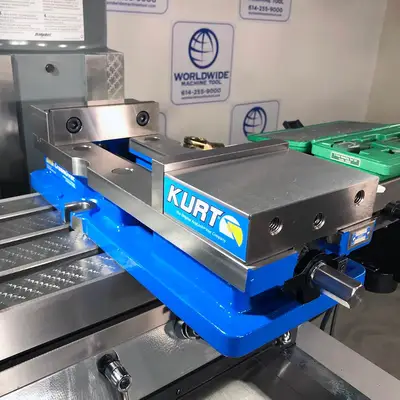

Customize your new Bridgeport knee mill for sale with these optional accessories.

Table travel (X-Axis): 36″ (914 mm) with Power Feed
Table travel (X-Axis): 31″ (787 mm) without Power Feed
Saddle Travel (Y-Axis): 12″ (305 mm)
Quill Travel: 5″ (127 mm)
Knee Travel (Z-Axis): 16″ (406 mm)
Ram Travel: 12″ (305 mm)
Throat Distance (Min.): 6.75″ (171 mm)
Throat Distance (Max.): 18.75″ (476 mm)
Power Rating 30 min. Duty Cycle: 3 HP (2.2 kW)
Power Rating Continuous: 2 HP (1.5 kW)

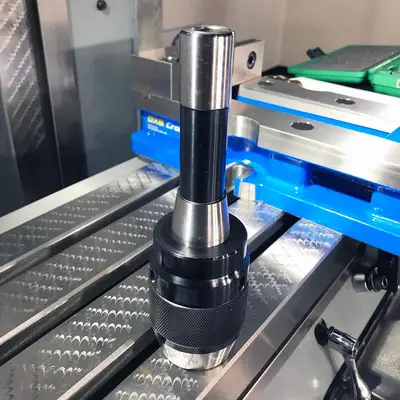

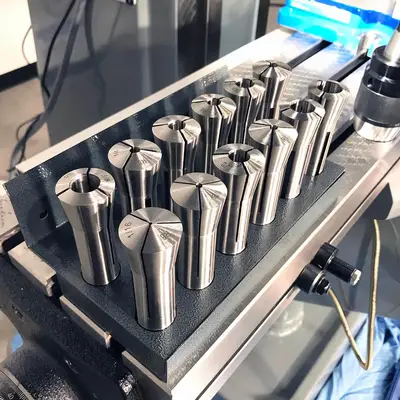

Tooling: R-8 Collets
Power Quill Feed 3: 3/8″ (9.5 mm)
Manual Drilling Capacity: 2 CI/min
Boring Range: 6″ dia. (152 mm)
Spindle Diameter: 1.875″ (48 mm)
Quill Diameter: 3.375″ (86 mm)
High (Infinitely Variable): 500 – 4,200 RPM @ 60 Hz
Low: 60 – 500 RPM @ 60 Hz
Power Quill Feed: 0.0015″/rev (0.038 mm)
Manual Adjust: 0.003″/rev (0.076 mm)
Manual Adjust: 0.006″/rev (0.152 mm)
Standard: 49″ x 9″ (1,245 x 299 mm)
T Slot center distance: 3 @ 2.5″ (64 mm)
T-Slot Size: 0.625″ (16 mm)
Height Above Floor (Max.): 47.25″ (1,200 mm)
Weight of Workpiece (Max.): 750 lb (340 kg)
Height: 87″ (2.21 m)
Weight: 1,930 lb (875 kg)
Weight (Shipping): 2,075 lb (941 kg)
Floor Space: 7′ x 10′ (2.13 x 3.0mm)
