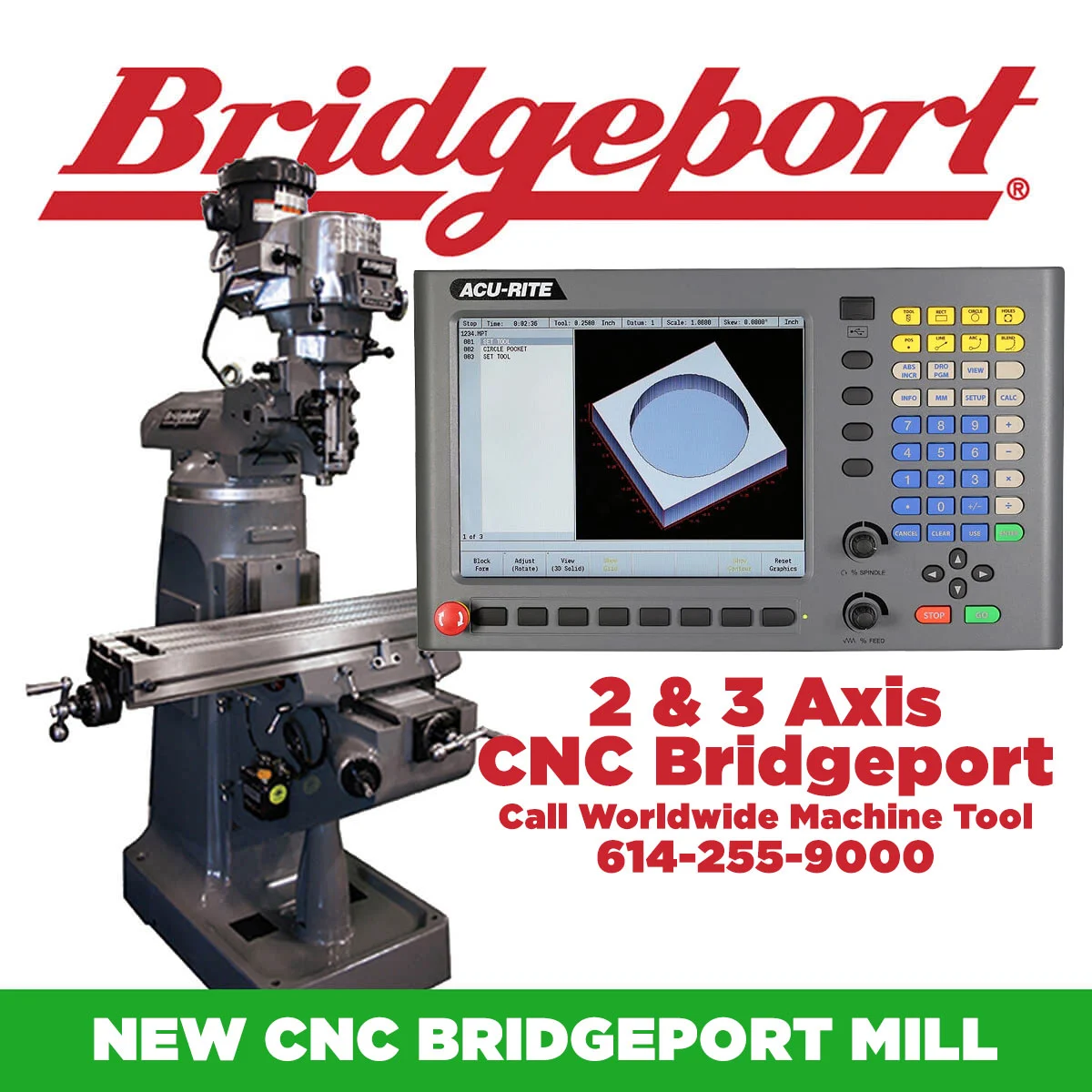

Now a Bridgeport Mill with 2 or 3 axis CNC milling capabilities in stalled but the factory! Announcing the new Bridgeport BPS1CNC Series w/Mechanical Sheave Pulley CNC Vertical Milling Machine with ACU-RITE MILL PWR G2 – 2 or 3 Axis CNC Control for sale at Worldwide Machine Tool. This machine will be arriving in September call Worldwide Machine Tool now to have a machine on order to receive one of the first CNC Bridgeport Knee mills.
9″ x 49″ New Bridgeport CNC Vertical Milling Machine
Flexible Operating Modes: manual operation with DRO, semi-automatic operation, and two or three axes full CNC operation.
Hardened and Scraped X, Y, and Knee ways for superior accuracy and wear.
Scraped Gibs applied to X, Y, and Knee ways for accurate alignment.
Ground T-Slots provides quick set-ups for the operator using a quality reference edge for positioning workpiece or fixtures.
Variable Speed Spindle achieving more accurate surface speeds for enhanced tool life.
Spindle Brake manually operated.
ABEC 7/CP4 Spindle Bearings increasing spindle speeds and accuracy for close tolerance machining.
Chromed and Ground Quill giving the quill wear resistance with close tolerances between the quill and housing.
3/2 hp Spindle Motor for exceptional machining power.(3Hp 30 Min / 2Hp Continuous
One Shot Lubrication maintains proper lubrication to all critical machine components.
Optional Built in Coolant System w/pump, switch, and flexible coolant nozzle giving the operator full control over tool cooling.
ACU-RITE Mill Power G2 Control easy to program conversational steps, gives this machine full CNC capabilities, at half the price of VMC’s.
L-Series Linear Machines adds a linear scale to Z axis in lieu of the rotary encoder making the functionality of Z-Quill nut adjustment without referencing Z axis after re-engagement as you do with the rotary Z-axis system.
Hard Key Milling Functions provide quick and easy selection of routine functions (line, arcs, rectangles, circles, etc.)
Part View Graphic provides for immediate viewing of part on 12.1” LCD screen.
Closed Loop Feed Back using ACU-RITE precision glass scales with 2um/.0001 resolution.
DC Axis Servo Motors provide accurate and powerful milling conditions.
2.5 GB Flash internal storage, USB / Ethernet gives the operator easy access for downloading and uploading programs.
Precision Hardened and Ground Ballscrews for smooth positioning and accuracy.
Bridgeport Clausing CNC ACU-RITE MILL PWR G2 Control Specifications Hardware Features
Precision Ground and Hardened Ball Screws
Powerful DC Servo Motors Assemblies
Closed Loop Feedback using ACU-RITE Precision Glass Scales with (1mm/.00004 Resolution)
1GHz Celeron Processor
12.1” Flat Panel, High Resolution Color LCD Display 3D Graphics
Large Internal Part Program Storage Capacity 2.5GB Flash
RS-232 Port for Downloading from an Offline Source
USB/Ethernet for External Storage
Remote Stop/Go Switch
Modular Construction
Maximum Table Feedrate of 100 IPM
2 & 3 axis Control/3-axis Readout
Tree Style File Manager
Menu-prompted, Conversational Programming
Block Form Solid Model 3D Graphics (w/user override)
G-Code Program (w/extended support plus G80 series drill cycles)
Program Size Limit (9,999 steps)
Auto Save Program
Estimated Machining Time
Position-Trac™/Find Home: Quickly find workpiece zero after power loss
3-D Tactile – Feel, Color Keypad
Graphic View (line / 3D)
ACU-RITE Precision Glass Scale:
Better Accuracy
Repeatability
High Resolution
Closed loop feedback
Proven reliability
Jog Control: One Axis or two axes simultaneously
Remote Stop/Go Switch: with hand-held switch
Travel Limits: With software not costly switches
Engrave: Alphanumeric references into parts
Tool Offset Compensation
99 Multiple Datum’s (fixture offsets)
Tool Library
Hard Key Milling Functions, Select routine functions (lines, arcs, rectangles, circles, etc.)
Bolthole Calculations:
Calculate Full & Partial Circles
Linear Row/Column
Rectangle frame
Rectangle array
Mirror/Repeat/Rotate
Custom Pocket and Islands (ramp feed and optimized path)
Skew : Save Time Aligning Parts
Bend
Explode
Feed Rate Override
DXF File Input
Teach Position
Edit Capabilities
Reference Tables
Math Functions: Standard/Trigonometry/Geometry/rpm
9″ x 49″ New Bridgeport CNC Vertical Milling Machine optional accessories.
Note: Pricing is subject to change based on manufacturer. Request a quote for current pricing and availability. Clausing warrantees the machine and control for a period of one year from the date of installation. This warranty does not cover normal wear items such as filters and belts or damage that results from the misuse or abuse of this equipment.
The operation installation and parts manual includes the safety requirements and setup for a new Bridgeport milling machine. The parts diagrams and instructions help you setup and maintain a new Bridgeport mill. Call Worldwide Machine Tool at 614-255-9000 for help.
Click to download a Bridgeport Mill Parts and Maintenance Manual
Click and Download the Bridgeport Mill lifting instructions.
Click and Download the Bridgeport Mill Safety and Data Sheet.
Click and Download the Bridgeport Mill Older Parts Sheet.
Bridgeport Dimensions and Shop Floor Foot Print. 5′ Front to back , 87″ Tall, 68″ Tall with head tilted Down.
